Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner (ACL) and the air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Remove the bolt and remove the oil level indicator tube.
    • Discard the O-ring seals.
    • Inspect the oil level indicator tube for damage.

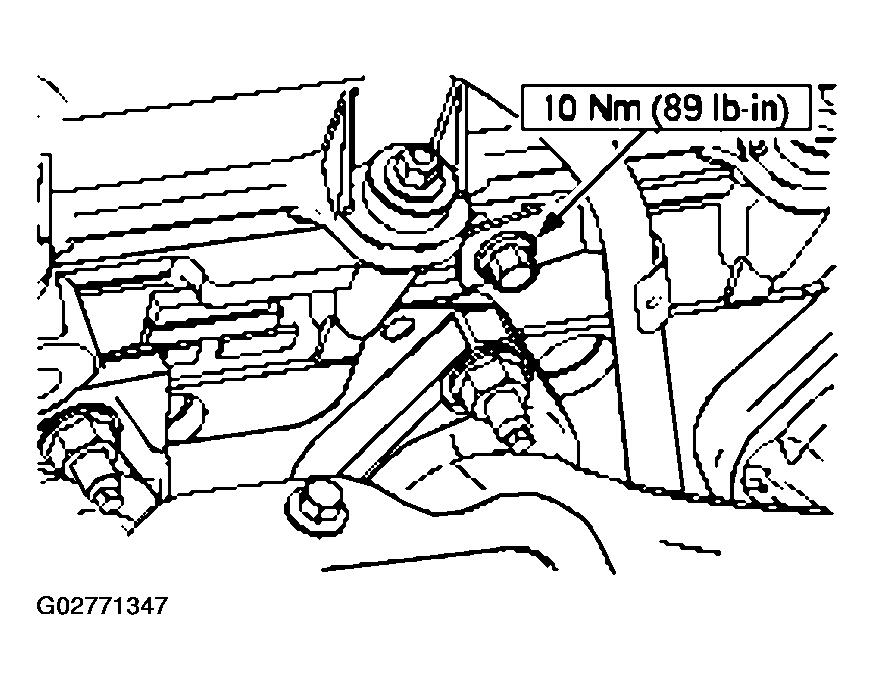

      Fig 1: Identifying Loosening Torque Of Oil Level Indicator Tube
      G02771347Courtesy of FORD MOTOR CO.
    3. NOTE: Lubricate the new O-ring seals with clean engine oil prior to installation.
  3. To install, reverse the removal procedure.
    • Install new O-ring seals prior to installation.
