In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
    2. NOTE: It is not necessary to remove the transmission from the jack.
  2. Remove the transmission. Refer to AUTOMATIC TRANSMISSION - 4R100 or AUTOMATIC TRANSMISSION - TORQSHIFT .
  3. Remove the bolts and the flexplate.

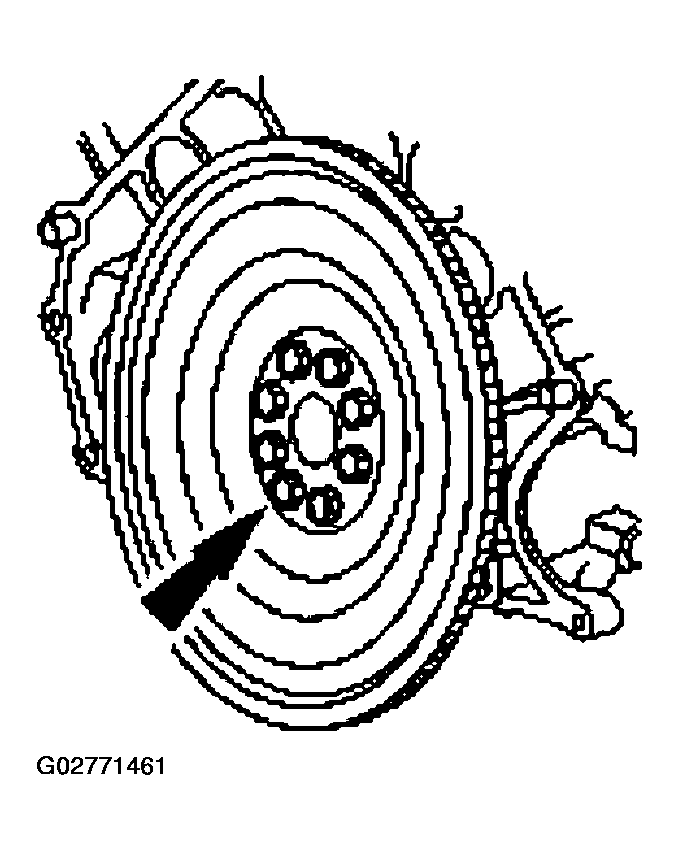

    Fig 1: Removing Bolts And Flexplate
    G02771461Courtesy of FORD MOTOR CO.
