Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Lubricate the inner lip of the crankshaft rear oil seal with clean engine oil.
    Fig 1: Installing Rear Oil Seal Using Special Tools
    G02771466Courtesy of FORD MOTOR CO.
  1. Use the special tools to install the rear oil seal.
  2. Using the special tools, install the crankshaft rear oil slinger.

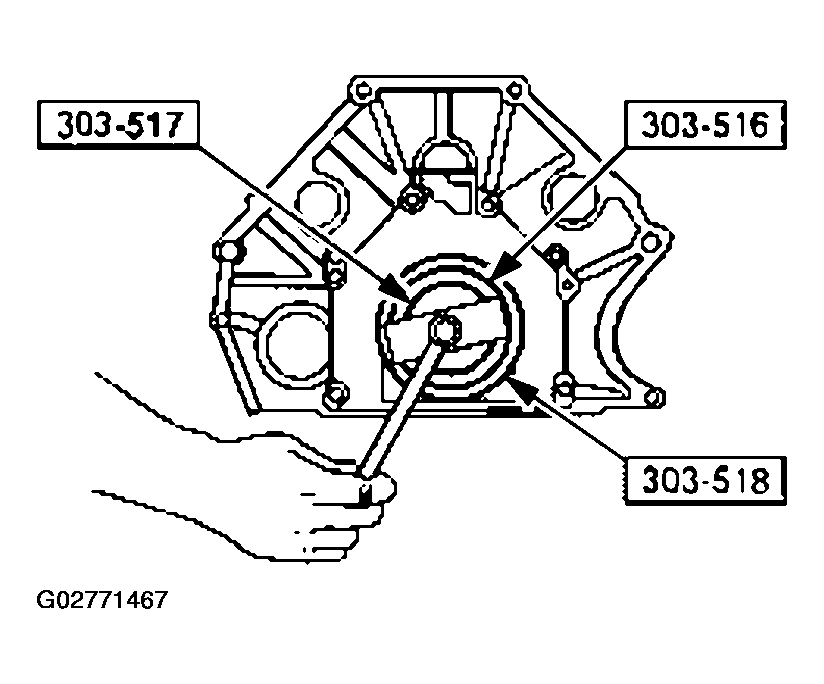

    Fig 2: Installing Crankshaft Rear Oil Slinger Using Special Tools
    G02771467Courtesy of FORD MOTOR CO.
  3. Install the flexplate. Refer to FLEXPLATE .
