Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and fan shroud. Refer to ENGINE COOLING .
  2. Remove the drive belt.
  3. Raise the vehicle on a hoist. Refer to JACKING & LIFTING .
  4. Remove the crankshaft pulley bolt.
  5. Using the special tool, remove the crankshaft pulley.

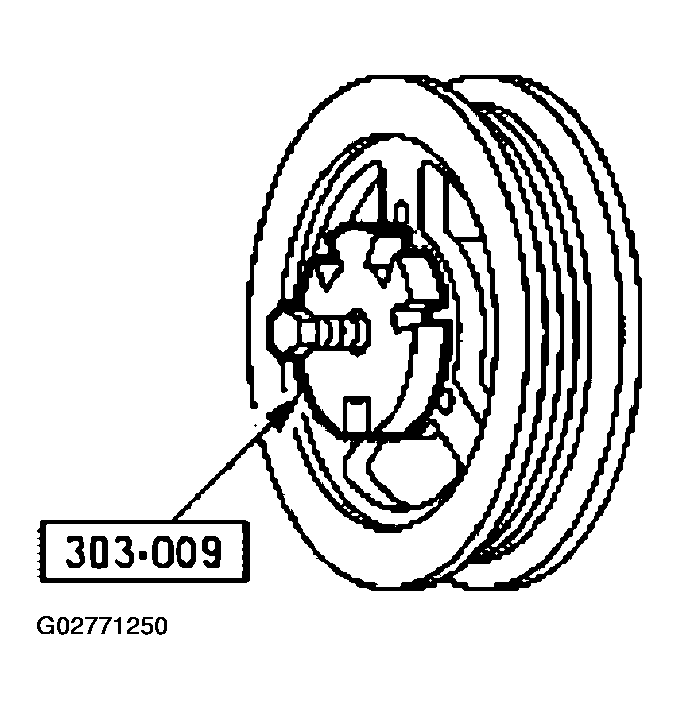

    Fig 1: Removing Crankshaft Pulley
    G02771250Courtesy of FORD MOTOR CO.
