Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips.
    Fig 1: Removing Clips
    G02771649Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.
    Fig 2: Removing Piston Pin From Piston And Connecting Rod
    G02771650Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

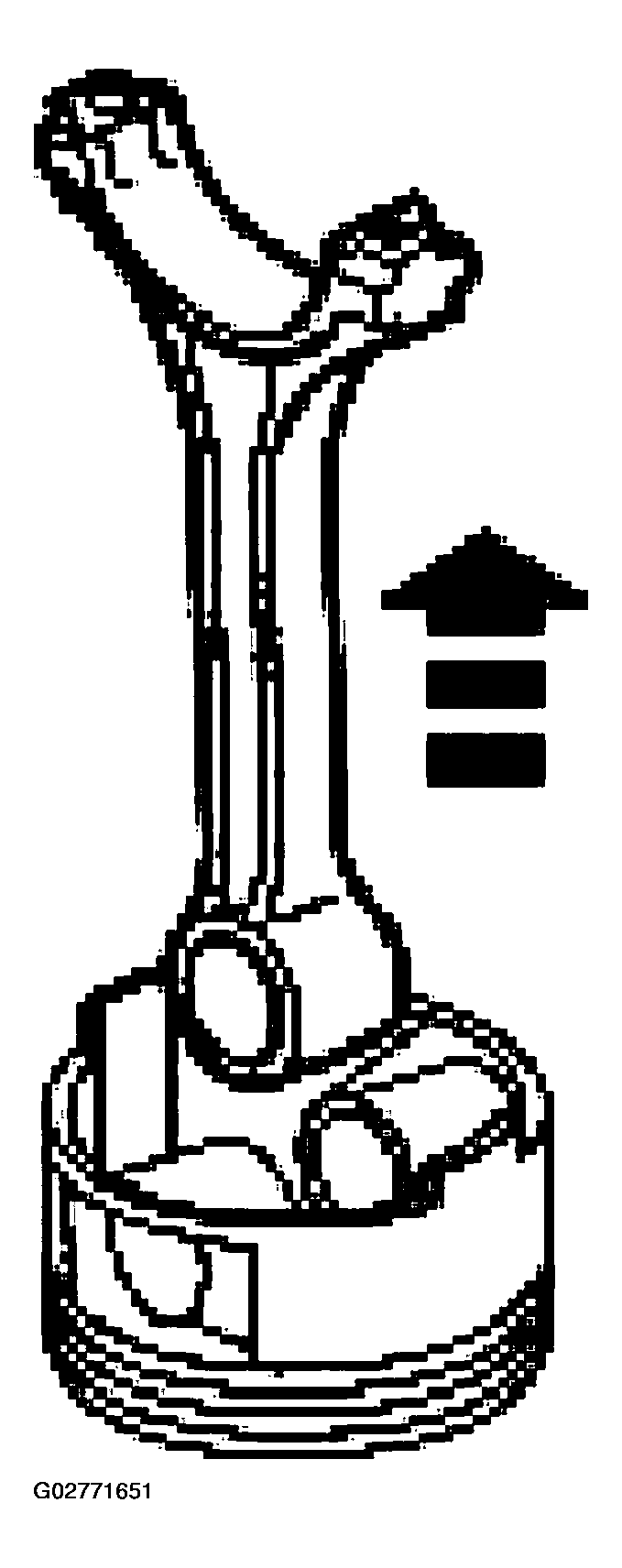

    Fig 3: Removing Connecting Rod From Piston
    G02771651Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
