Cylinder Head: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

  1. Lubricate the camshaft journals with clean engine oil.
    Fig 1: Locating Lubricate Camshaft Journals With Clean Engine Oil
    G02771636Courtesy of FORD MOTOR CO.
  2. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.

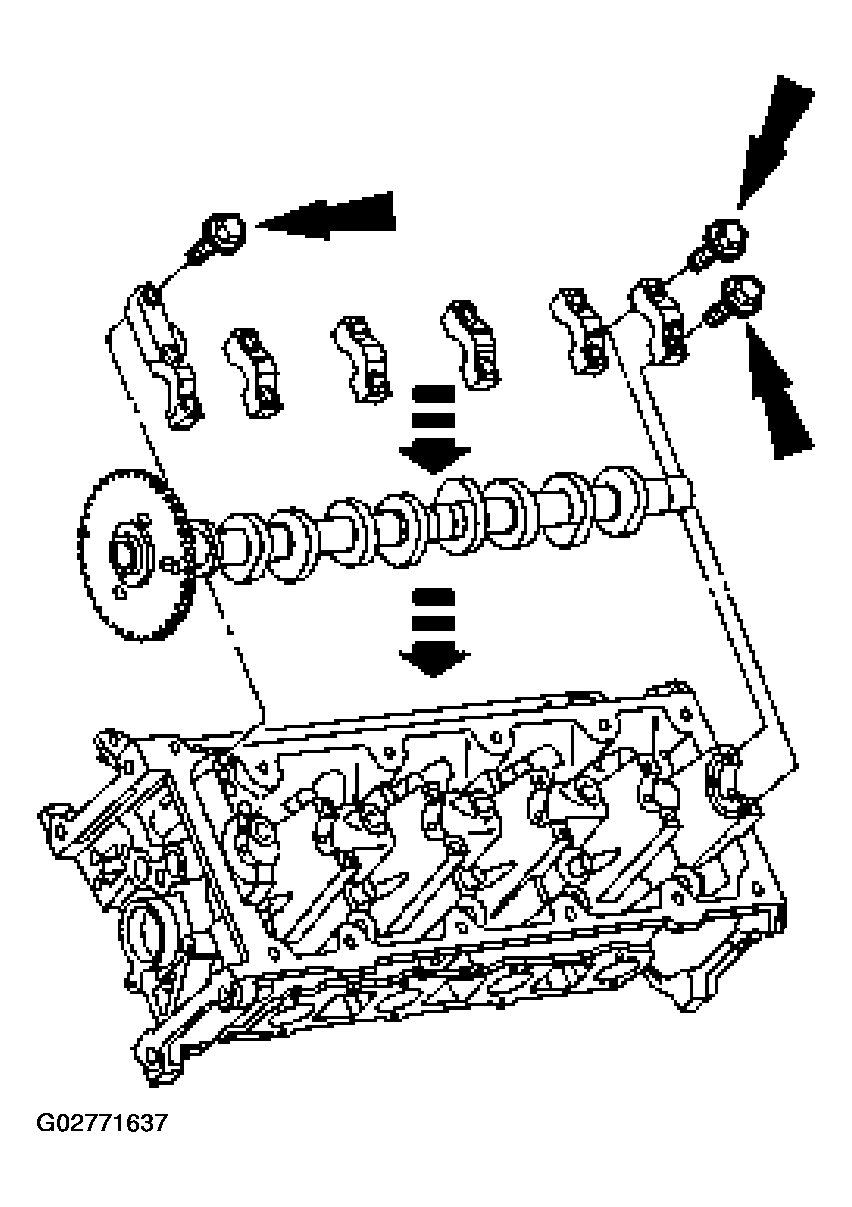

      Fig 2: Installing Bolts
      G02771637Courtesy of FORD MOTOR CO.
  3. Tighten the bolts in the sequence shown.

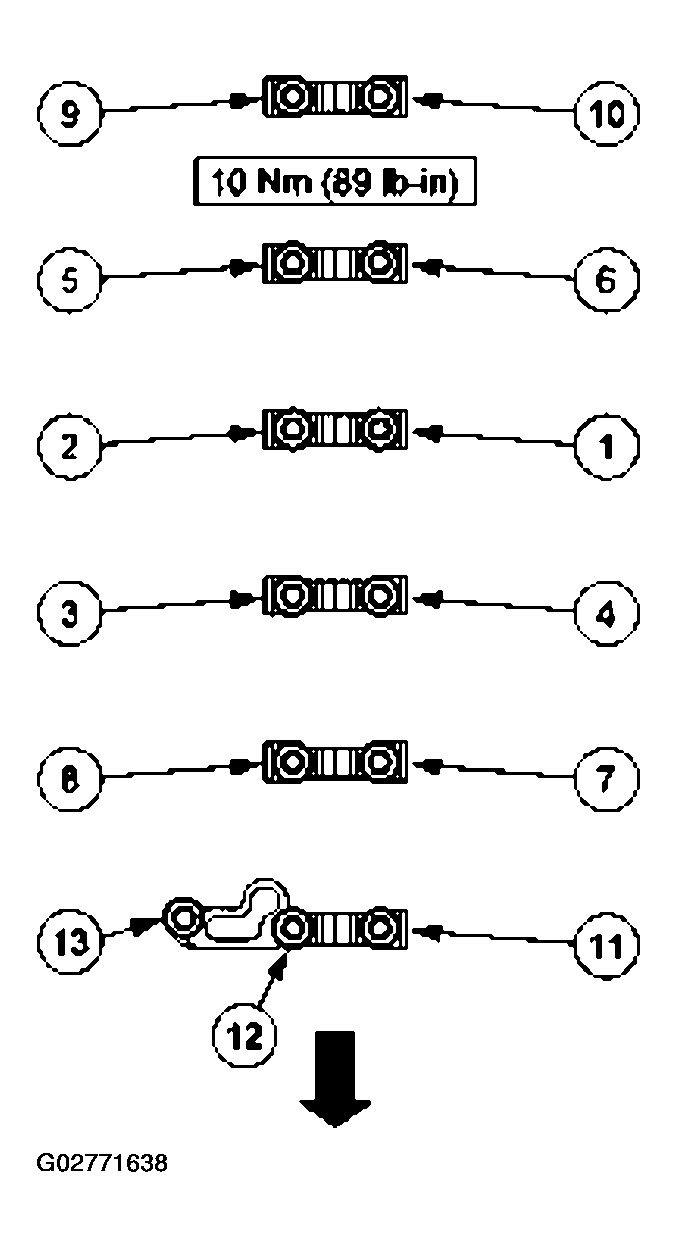

    Fig 3: Tightening Bolts In Sequence
    G02771638Courtesy of FORD MOTOR CO.
  4. NOTE: Lubricate the valve stems using clean engine oil.

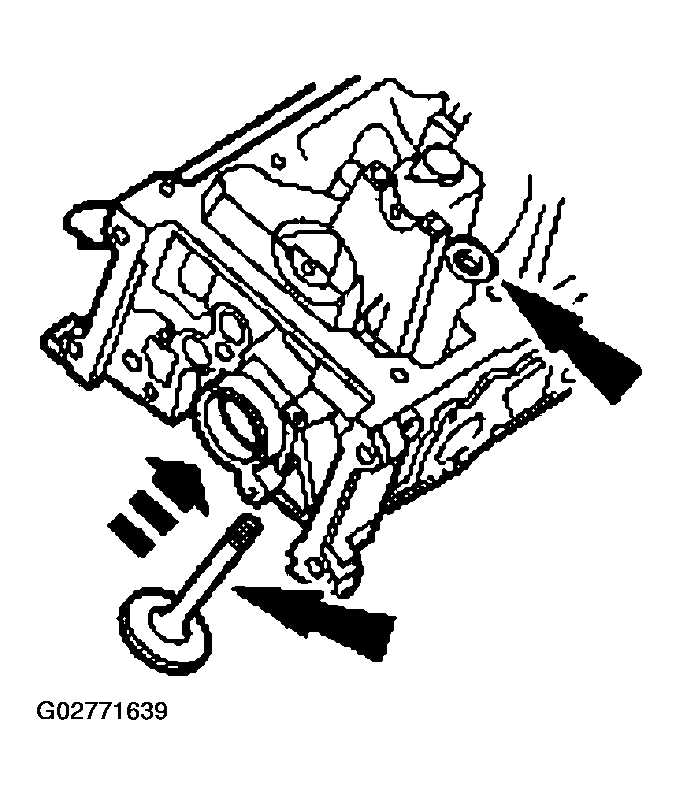

    Fig 4: Installing Valves In Valve Guides
    G02771639Courtesy of FORD MOTOR CO.
  5. Install the valves in the valve guides located in the cylinder head.
  6. Use the special tools to install the valve stem seals.
    Fig 5: Installing Valve Stem Seals Using Special Tools
    G02771640Courtesy of FORD MOTOR CO.
  7. Install the valve springs and the valve spring retainers onto the valves.

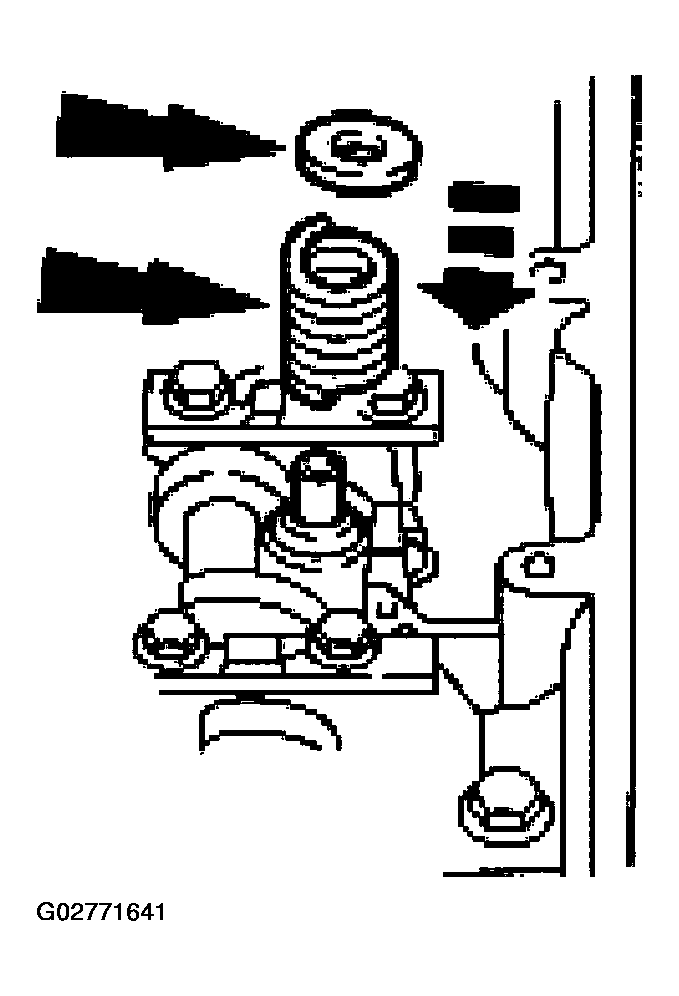

    Fig 6: Installing Valve Springs And Valve Spring Retainers
    G02771641Courtesy of FORD MOTOR CO.
  8. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 7: Installing Special Tool Between Valve Spring Coils
    G02771642Courtesy of FORD MOTOR CO.
  9. Use the special tool to compress the valve springs. Install the valve spring retainer keys.
    Fig 8: Compressing Valve Springs Using Special Tool
    G02771643Courtesy of FORD MOTOR CO.
  10. NOTE: Lubricate the hydraulic lash adjusters using clean engine oil.

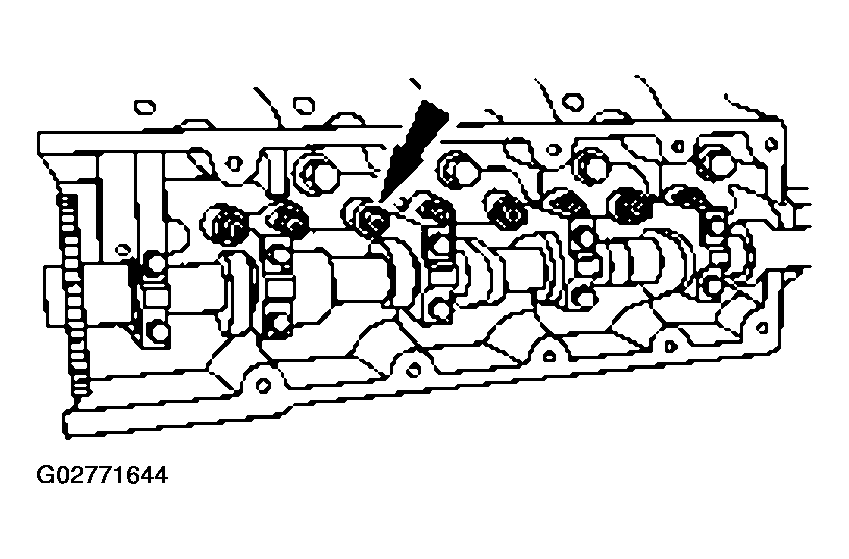

    Fig 9: Installing Hydraulic Lash Adjusters
    G02771644Courtesy of FORD MOTOR CO.
  11. Install the hydraulic lash adjusters in their original locations.
  12. Remove the special tool, unless the cylinder head is to be installed in-vehicle.
    Fig 10: Removing Special Tool
    G02771645Courtesy of FORD MOTOR CO.

    Cylinder heads for in-vehicle installation

  13. Position the camshaft lobe of the valve being serviced at base circle.
  14. NOTE: Lubricate the camshaft roller followers using clean engine oil.
  15. Install the camshaft roller followers.
    1. Install the special tool.
    2. Compress the valve spring.
    3. Install the camshaft roller followers in their original locations.
      Fig 11: Installing Camshaft Roller Followers
      G02771646Courtesy of FORD MOTOR CO.
  16. Remove the special tool.
    Fig 12: Removing Special Tool
    G02771647Courtesy of FORD MOTOR CO.

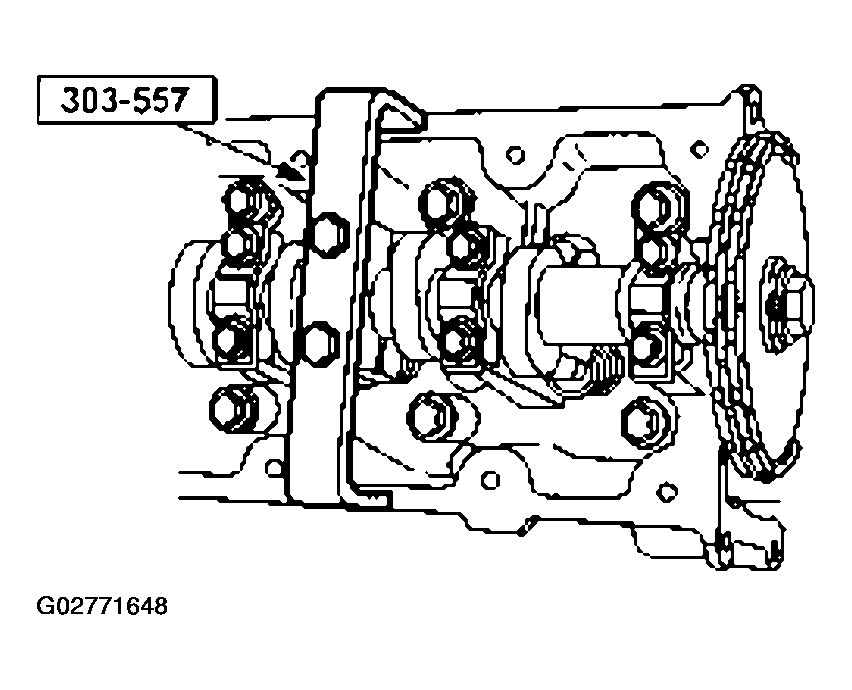

  17. Loosely install the special tool.
    Fig 13: Installing Special Tool
    G02771648Courtesy of FORD MOTOR CO.
