Low End Components

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

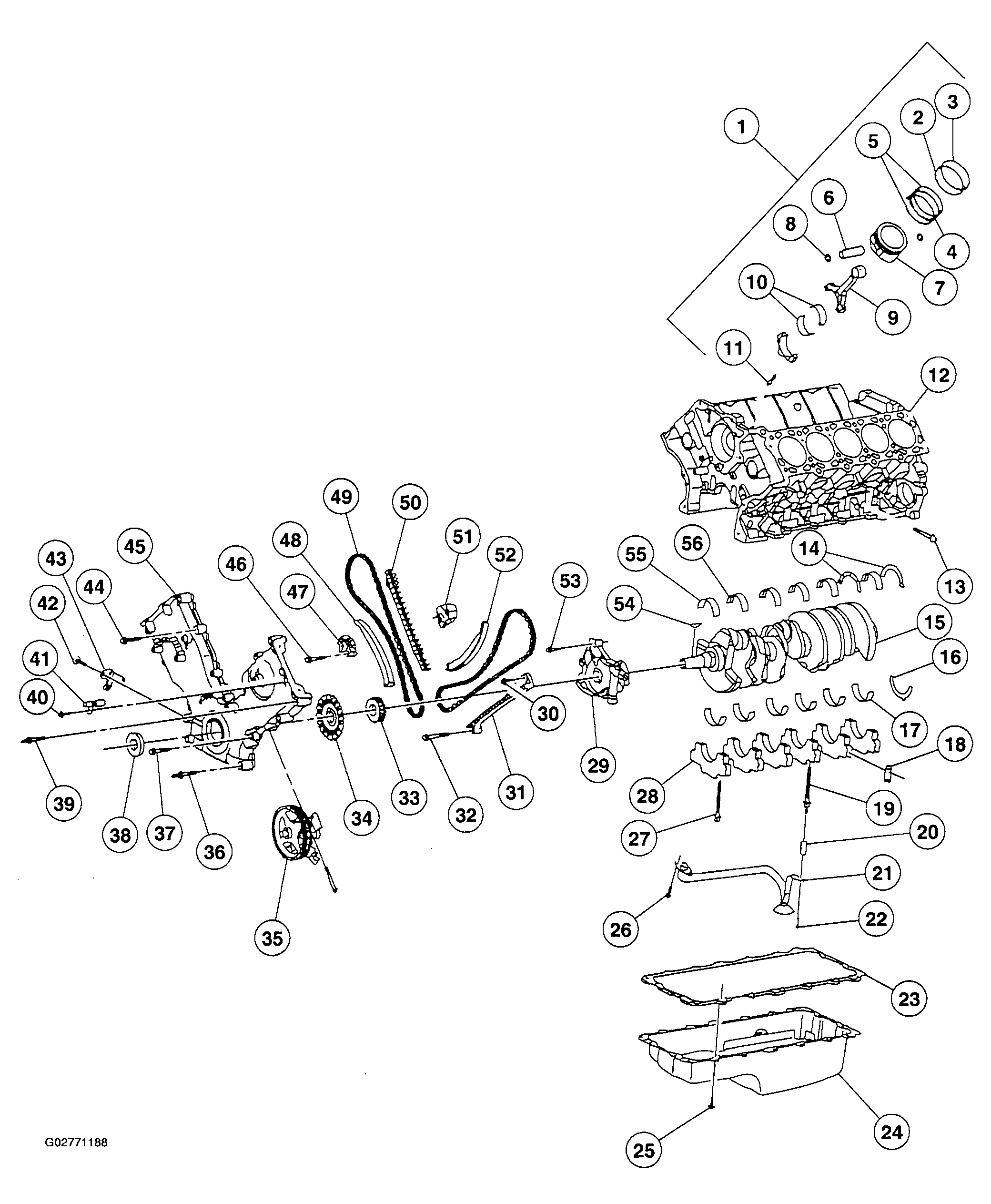

Fig 1: Identifying Engine 6.8L Low End Components (1 Of 2)
G02771188Courtesy of FORD MOTOR CO.

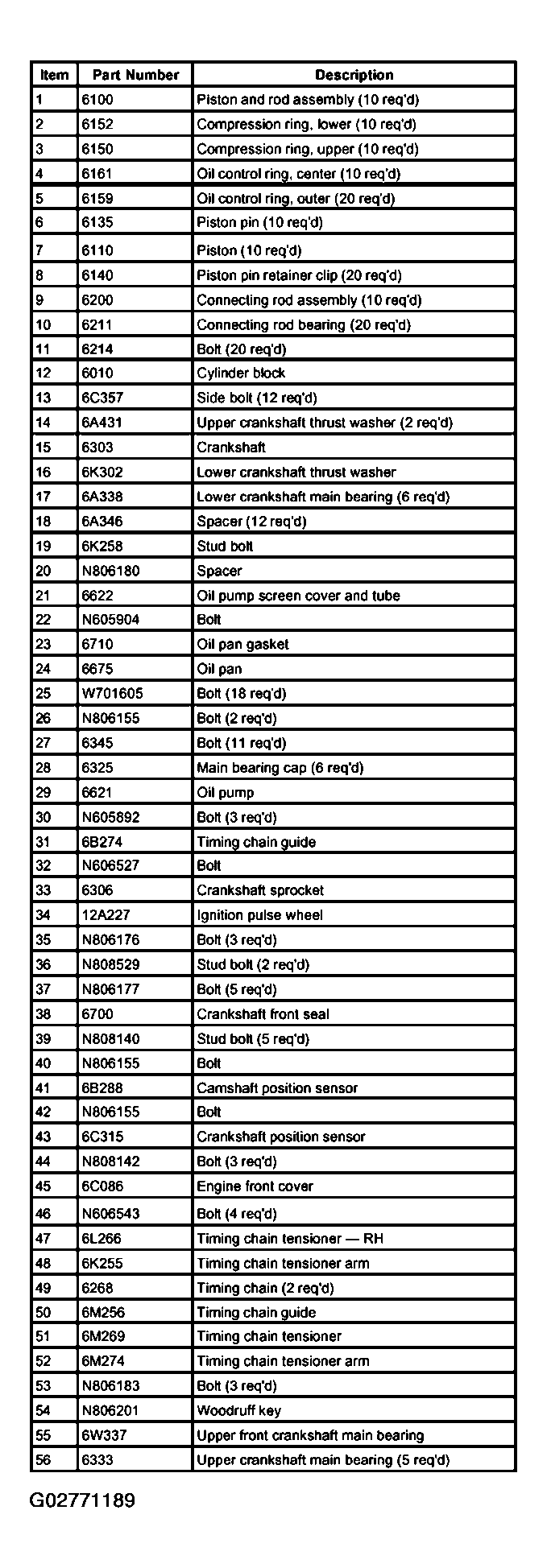

Fig 2: Identifying Engine 6.8L Low End Components (2 Of 2)
G02771189Courtesy of FORD MOTOR CO.
