Valve Springs: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft roller followers. Refer to CAMSHAFT ROLLER FOLLOWER .
  2. Position the piston at the top of the stroke.

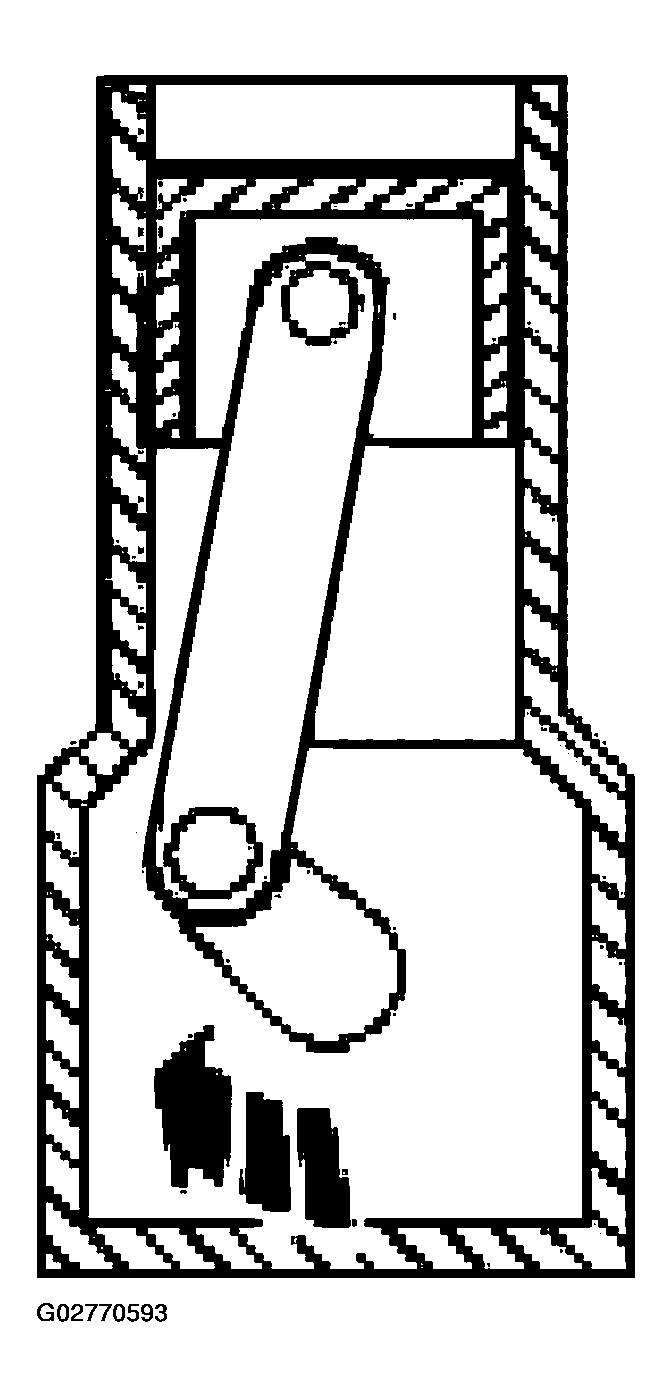

    Fig 1: Positioning Piston At Top Of Stroke
    G02770593Courtesy of FORD MOTOR CO.
  3. Remove the spark plug and install compressed air in the cylinder to hold both valves in position.
    CAUTION: If air pressure has forced the piston to the bottom of the cylinder, any loss of air pressure will allow the valve to fall into the cylinder. If air pressure must be removed, support the valve prior to removal.
  4. Use the special tool to compress the valve springs.

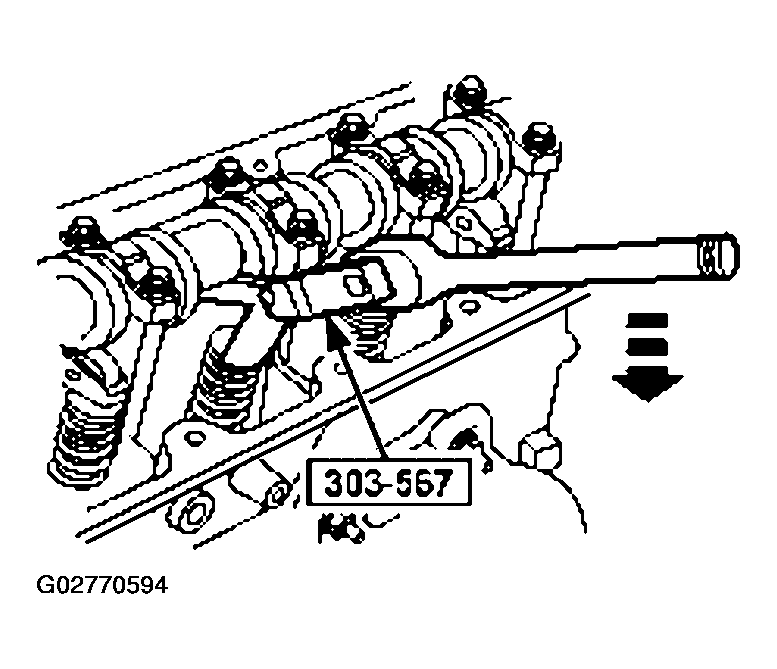

    Fig 2: Compressing Valve Springs Using Special Tool
    G02770594Courtesy of FORD MOTOR CO.
  5. Remove the valve springs.
    1. Remove the valve spring retainer keys.
    2. Remove the valve spring retainers.
    3. Remove the valve springs.

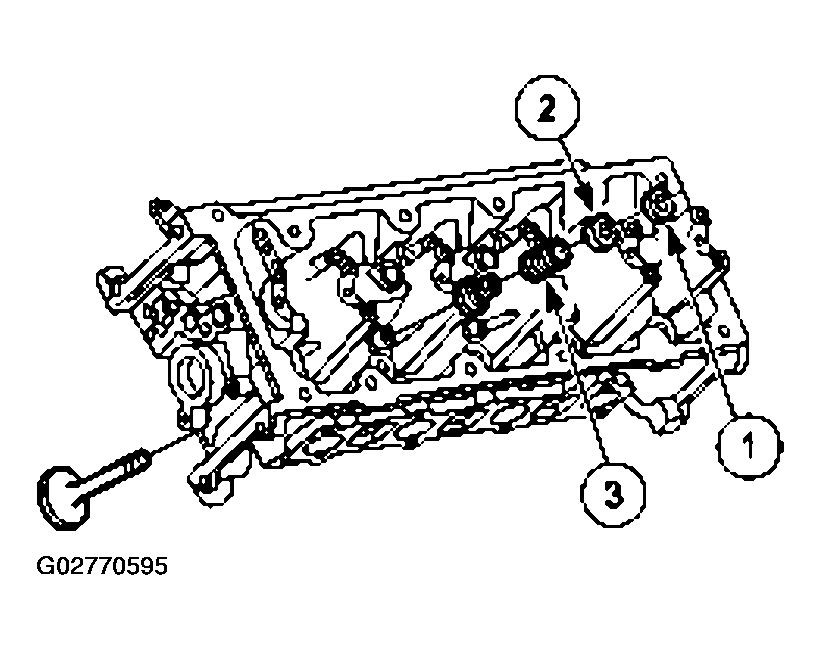

      Fig 3: Removing Valve Springs
      G02770595Courtesy of FORD MOTOR CO.
