Valve Cover LH: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

If a new gasket is being installed, apply instant adhesive completely around the gasket groove in the valve cover. Install the new valve cover gasket.

Fig 1: Installing Valve Cover Gasket
Courtesy of FORD MOTOR CO.

NOTE: If not secured within four minutes, sealant must be removed and the sealing area cleaned. To clean the sealing area, follow the directions provided on the packaging of the silicone gasket remover and the metal surface prep. Failure to follow this procedure can cause future oil leakage.

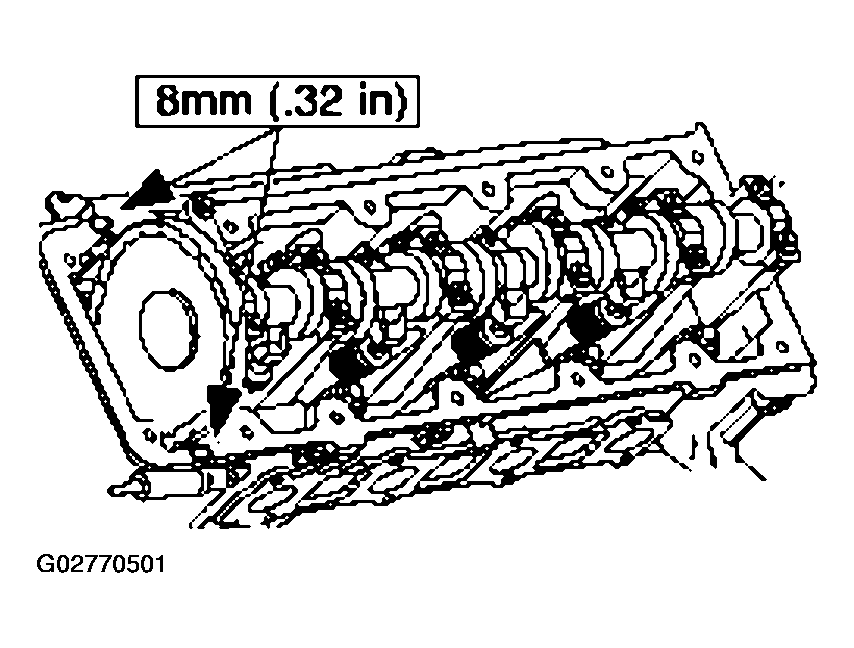

Fig 2: Applying Bead Of Silicone Gasket And Sealant In Engine Front Cover

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
Position the valve cover and the valve cover gasket on the cylinder head. Loosely install the bolts.

Fig 3: Installing Bolts
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown.

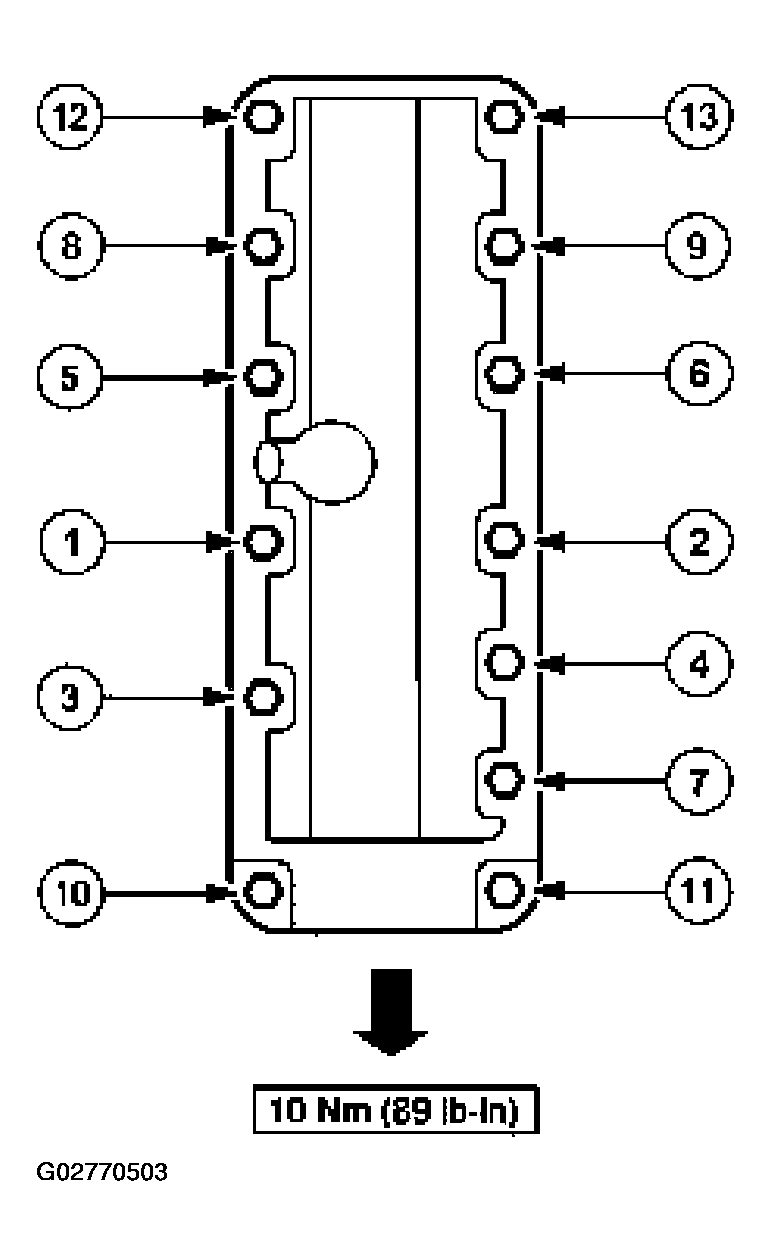

Fig 4: Tightening Bolts In Sequence
Courtesy of FORD MOTOR CO.
Position the fuel charging wiring onto the valve cover studs and connect the fuel pressure regulator vacuum hose.
Connect the LH ignition coil electrical connectors.

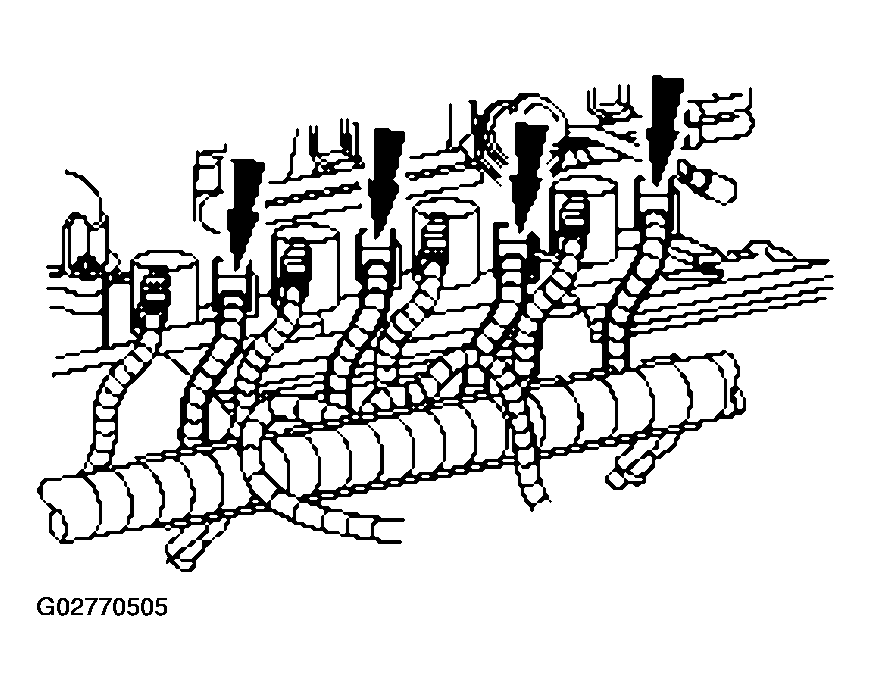

Fig 5: Connecting LH Ignition Coil Electrical Connectors
Courtesy of FORD MOTOR CO.
Connect the LH fuel injector electrical connectors.

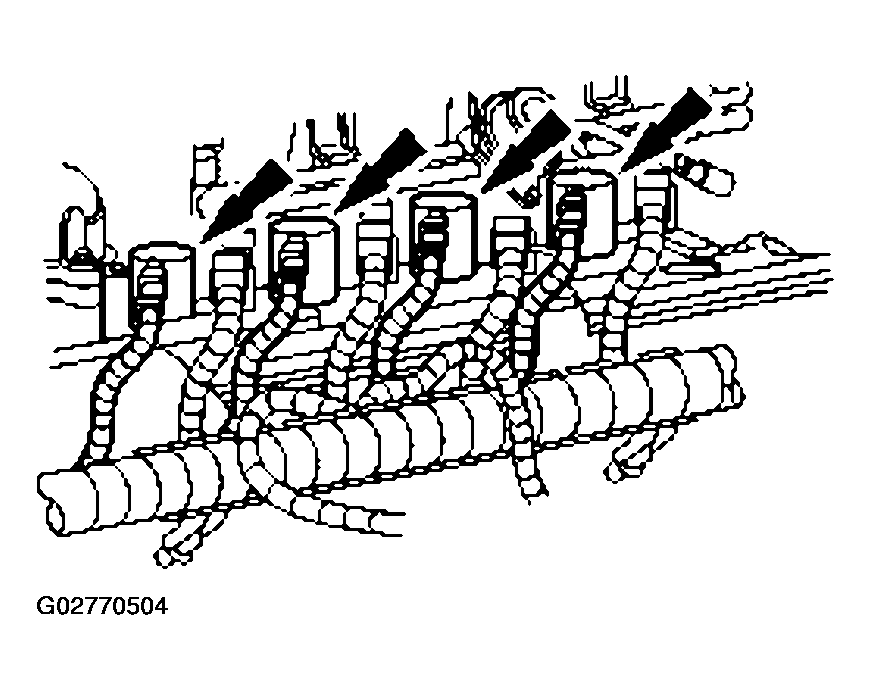

Fig 6: Connecting LH Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
If equipped, install the exhaust manifold to EGR valve tube. Refer to ENGINE EMISSION CONTROL .
Connect the crankcase ventilation tube to the valve cover.

Fig 7: Connecting Crankcase Ventilation Tube To Valve Cover
Courtesy of FORD MOTOR CO.
Install the engine air cleaner (ACL) and engine air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
Connect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
