Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chains and the LH timing chain guide. Refer to TIMING DRIVE COMPONENTS .
  2. Remove the oil pan (6675). Refer to OIL PAN - AUTOMATED EQUIPMENT  or OIL PAN - MANUAL TRANSMISSION .
  3. Remove the oil pump (6600).
    • Remove the three bolts.
    • Remove the oil pump.

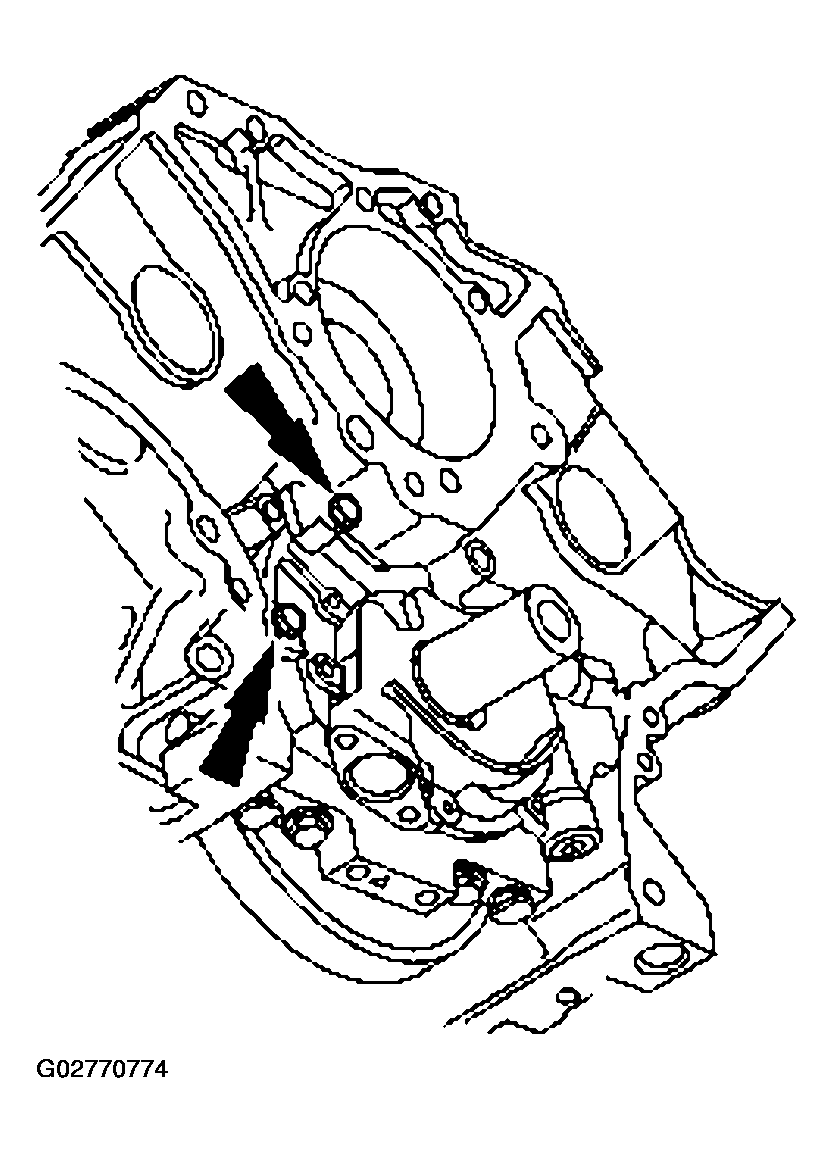

      Fig 1: Removing Oil Pump
      G02770774Courtesy of FORD MOTOR CO.
