Oil Cooler: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil cooler and install the oil cooler insert.

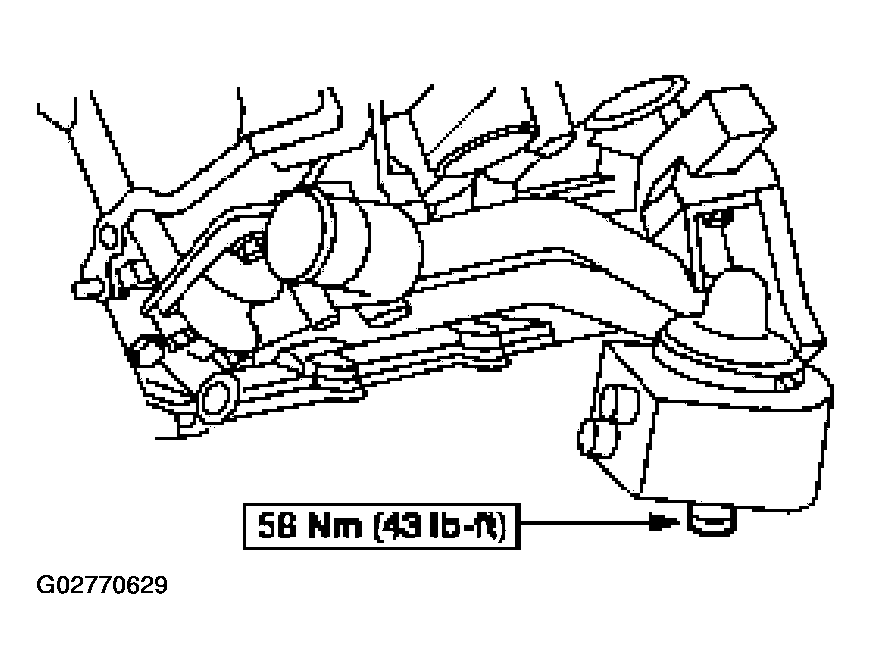

    Fig 1: Installing Oil Cooler
    G02770629Courtesy of FORD MOTOR CO.
  2. Position the coolant hoses and slide the hose clamps back.

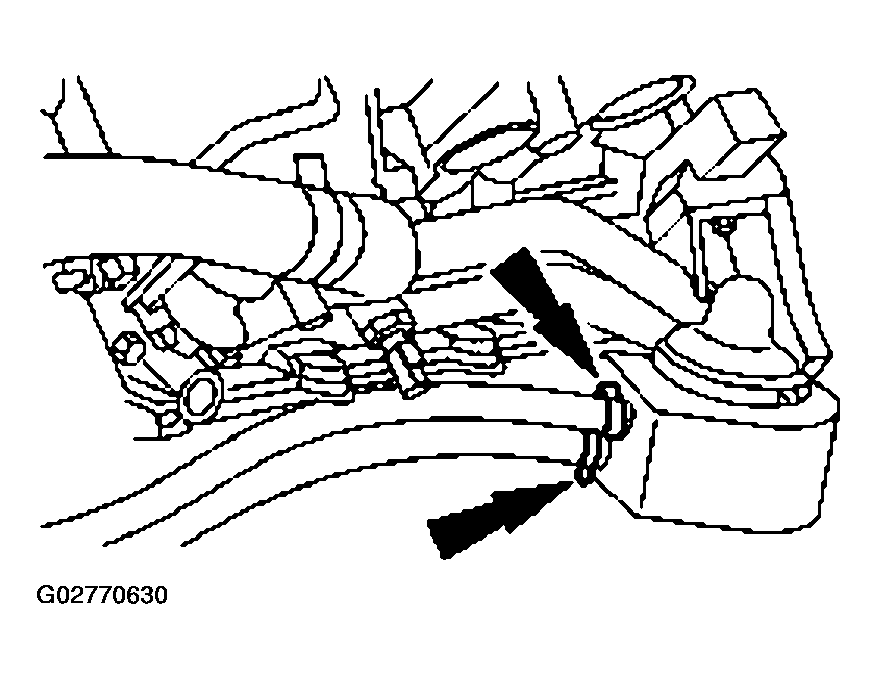

    Fig 2: Positioning Coolant Hoses
    G02770630Courtesy of FORD MOTOR CO.
  3. Install the oil filter.

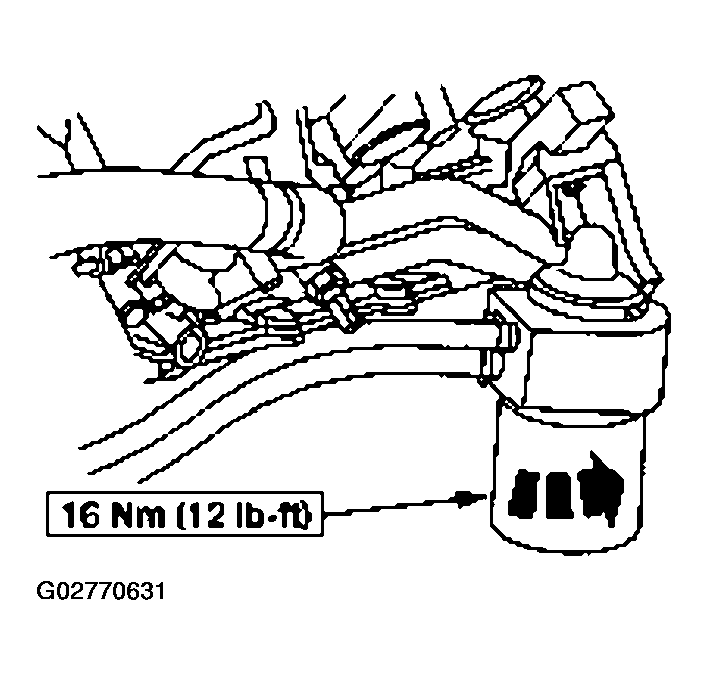

    Fig 3: Installing Oil Filter
    G02770631Courtesy of FORD MOTOR CO.
  4. Install the drain plug.
    Fig 4: Installing Drain Plug
    G02770632Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Fill the engine with clean engine oil.
  7. Fill the engine coolant. Refer to ENGINE COOLING .
