Hydraulic Lash Adjuster: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve tappets in their original locations.

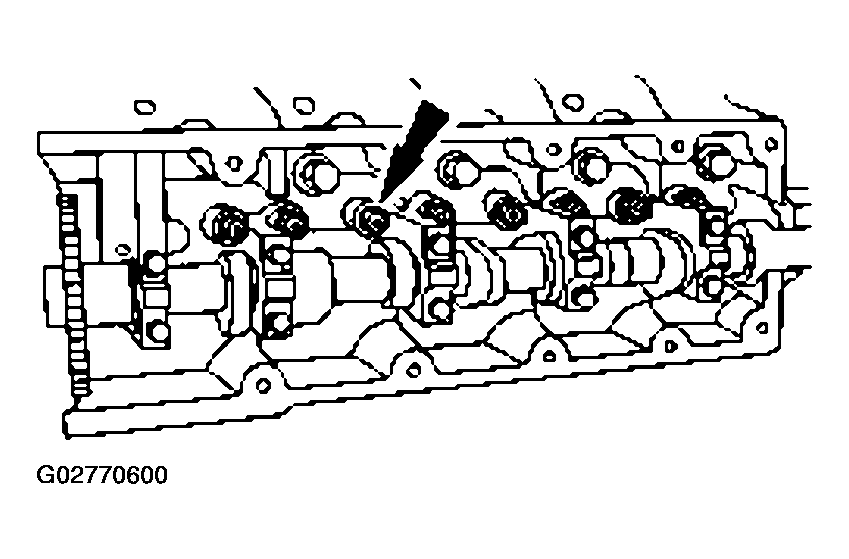

    Fig 1: Installing Valve Tappets In Locations
    G02770600Courtesy of FORD MOTOR CO.
  2. Install the camshaft roller followers. Refer to CAMSHAFT ROLLER FOLLOWER .
