Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

If equipped, remove the exhaust manifold to exhaust gas recirculation (EGR) valve tube. Refer to ENGINE EMISSION CONTROL .

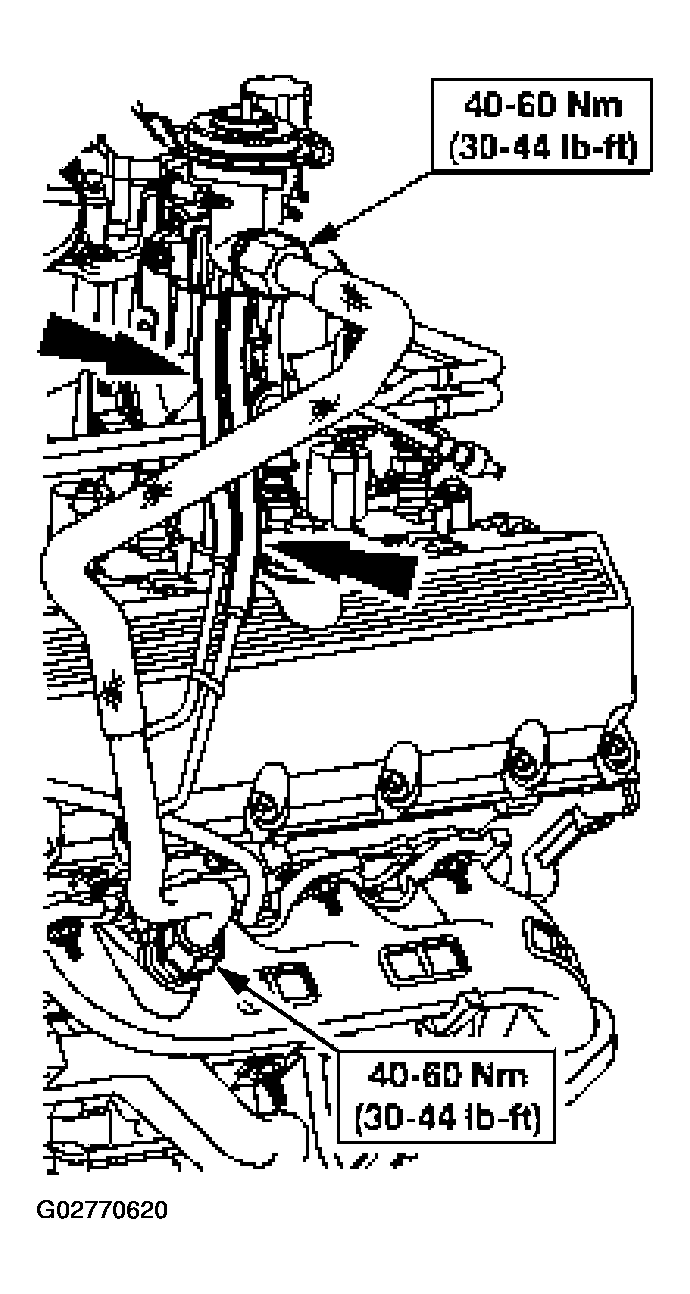

Fig 1: Removing Exhaust Manifold To Exhaust Gas Recirculation (EGR) Valve Tube
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. Refer to JACKING & LIFTING .
On 4x4 vehicles, remove the front wheel opening moulding. Refer to FRONT END BODY PANELS .
Remove the front fender splash shield.
Remove the nuts.

Fig 2: Removing Nuts
Courtesy of FORD MOTOR CO.
Remove the nuts and the exhaust manifold.

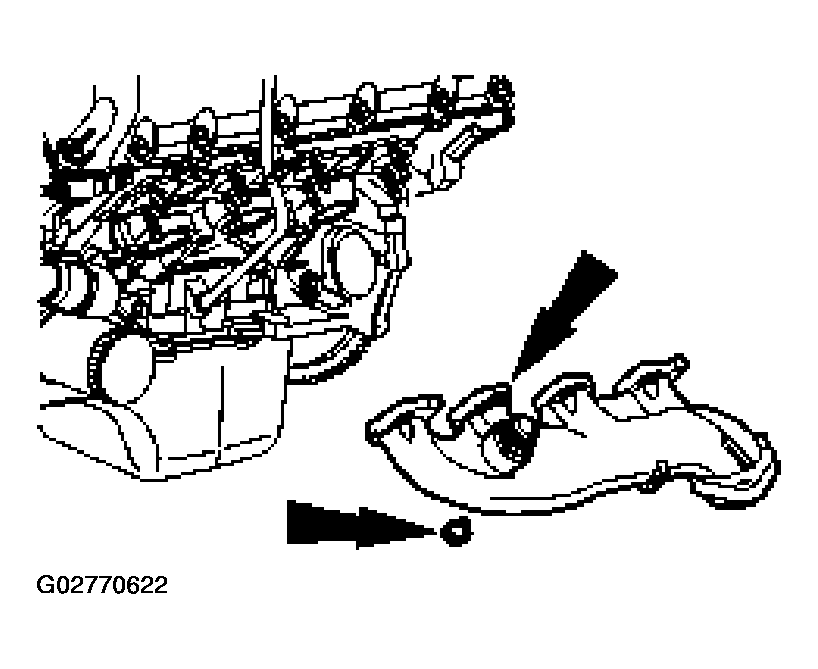

Fig 3: Removing Nuts And Exhaust Manifold
Courtesy of FORD MOTOR CO.
Remove the exhaust manifold gasket.

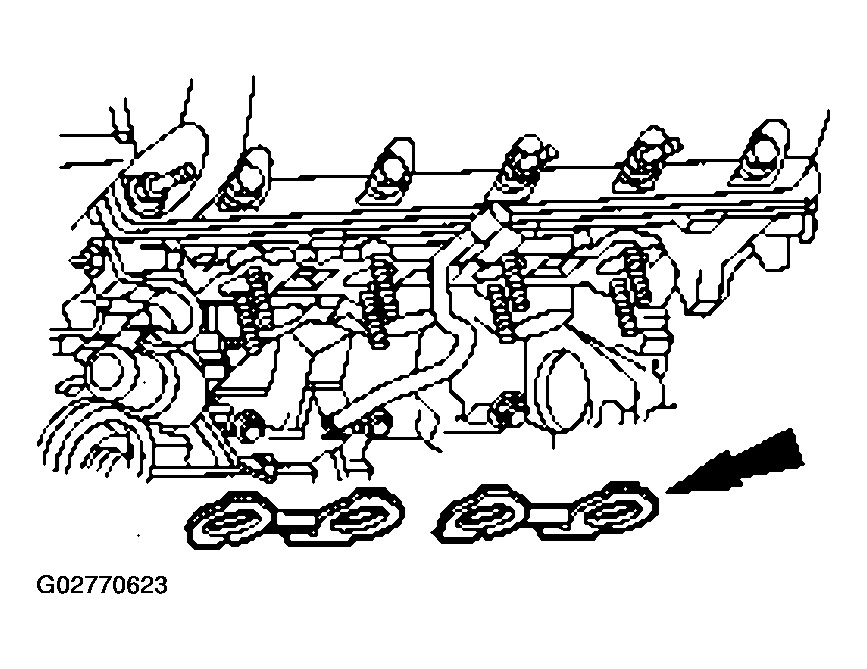

Fig 4: Removing Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.
Clean and inspect the exhaust manifold. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
To install, reverse the removal procedure.
- Tighten the exhaust manifold nuts in the sequence shown.

  Fig 5: Tightening Exhaust Manifold Nuts In Sequence
  Courtesy of FORD MOTOR CO.
