Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to OIL PAN - AUTOMATED EQUIPMENT  or OIL PAN - MANUAL TRANSMISSION .
  2. Remove the flexplate. Refer to FLEXPLATE - AUTOMATED EQUIPMENT  or FLYWHEEL - MANUAL TRANSMISSION .
  3. Using the special tools, remove the crankshaft rear oil seal slinger.
    Fig 1: Removing Crankshaft Rear Oil Seal Slinger Using Special Tool
    G02770786Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove the crankshaft rear seal.
    Fig 2: Removing Crankshaft Rear Seal Using Special Tool
    G02770787Courtesy of FORD MOTOR CO.
  5. Remove the six bolts and the crankcase rear seal retainer.

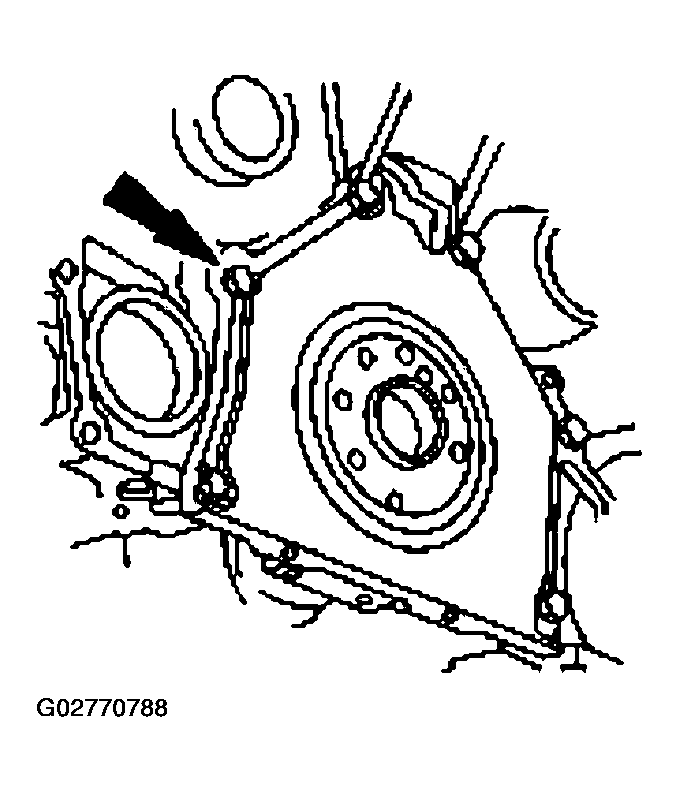

    Fig 3: Removing Six Bolts And Crankcase Rear Seal Retainer
    G02770788Courtesy of FORD MOTOR CO.
