Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.
  1. Clean and inspect the mating surface.
    2. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: If the rear crankshaft seal retaining plate is not secured within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, follow the directions provided on the packaging of the silicone gasket remover and the metal surfacer prep. Failure to follow this procedure can cause future oil leakage.
    NOTE: The silicone must be applied on the groove along the retainer plate.

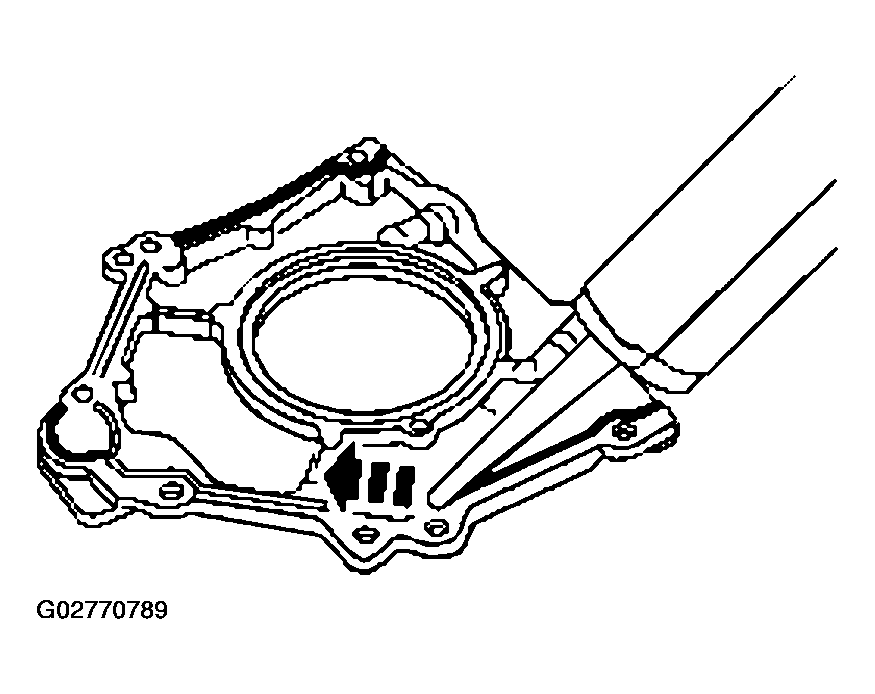

    Fig 1: Applying Bead Of Silicone Gasket And Sealant Around Rear Oil Seal Retainer Sealing Surface
    G02770789Courtesy of FORD MOTOR CO.
  2. Apply a 4 mm (0.16 in) bead of silicone gasket and sealant around the rear oil seal retainer sealing surface.
  3. Install the rear seal retainer and loosely install the six bolts.

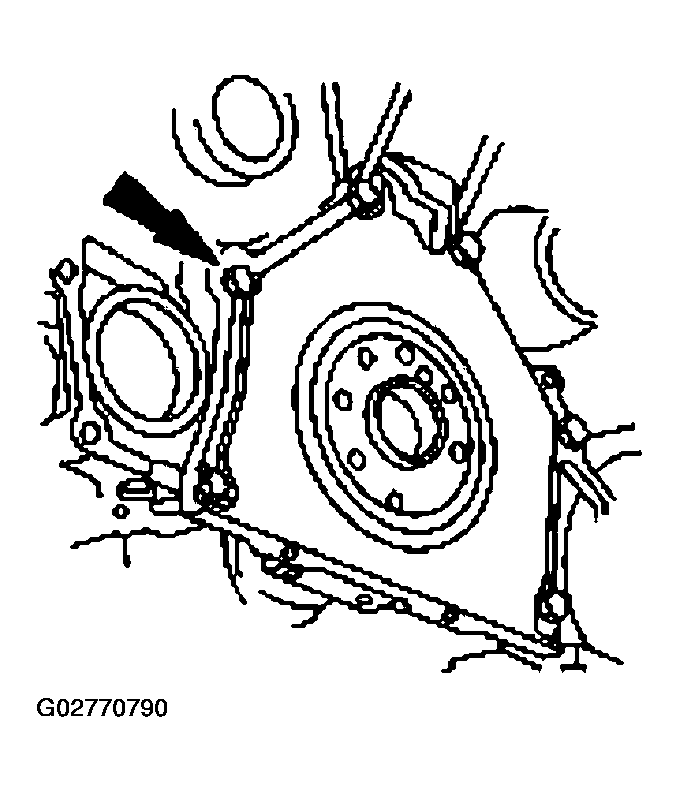

    Fig 2: Installing Rear Seal Retainer
    G02770790Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown.

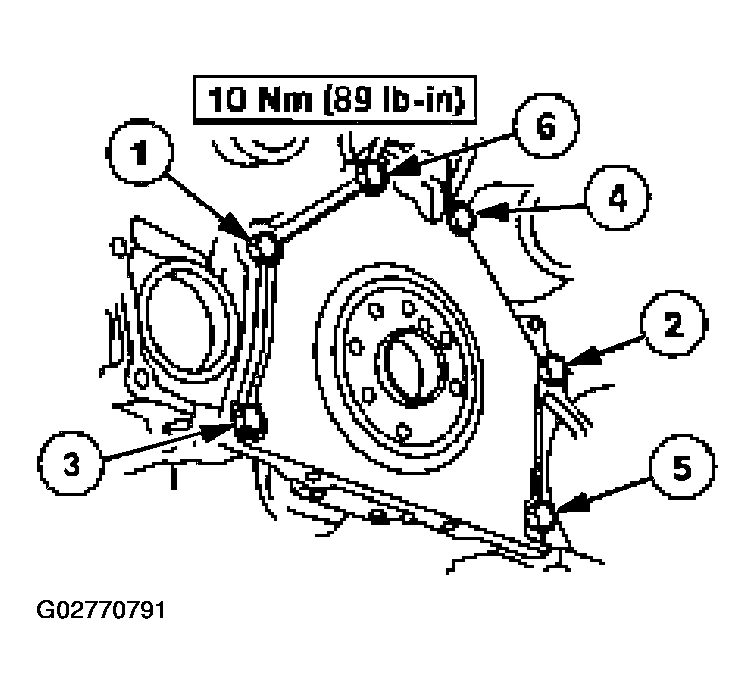

    Fig 3: Tightening Bolts In Sequence
    G02770791Courtesy of FORD MOTOR CO.
    5. NOTE: Lubricate the inner lip of the rear crankshaft seal with clean engine oil.
    Fig 4: Installing Crankshaft Rear Seal Using Special Tool
    G02770792Courtesy of FORD MOTOR CO.
  5. Using the special tools, install the crankshaft rear seal.
  6. Using the special tools, install the crankshaft rear oil slinger.

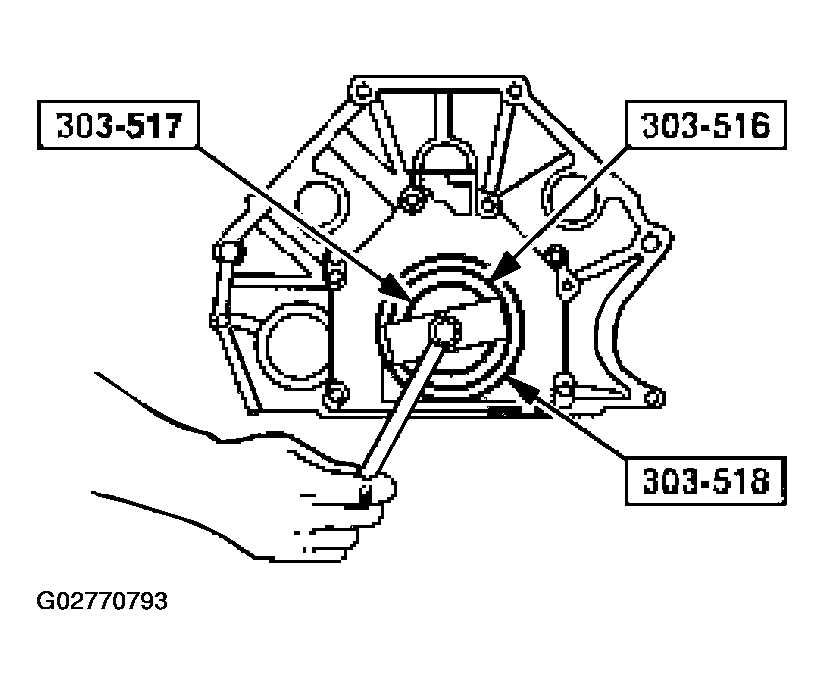

    Fig 5: Installing Crankshaft Rear Oil Slinger Using Special Tool
    G02770793Courtesy of FORD MOTOR CO.
  1. Install the oil pan. Refer to OIL PAN - AUTOMATED EQUIPMENT  or OIL PAN - MANUAL TRANSMISSION .
  2. Install the flexplate. Refer to FLEXPLATE - AUTOMATED EQUIPMENT  or FLYWHEEL - MANUAL TRANSMISSION .
