Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.
    Fig 1: Lubricating Engine Front Cover And Crankshaft Front Seal Inner Lip
    G02770541Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front seal into the engine front cover.

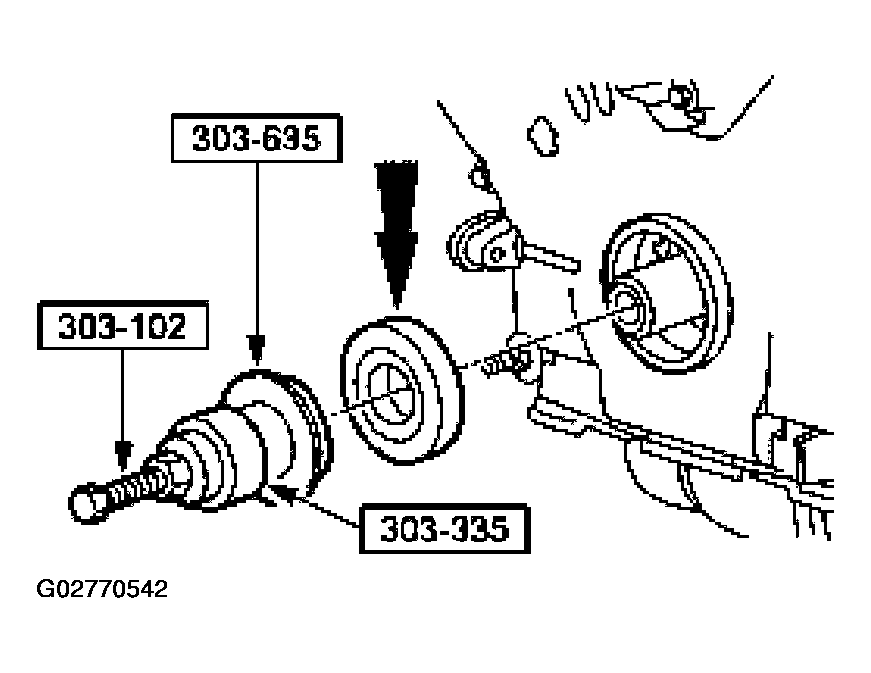

    Fig 2: Installing Crankshaft Front Seal Into Engine Front Cover Using Special Tool
    G02770542Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. Refer to CRANKSHAFT PULLEY .
