Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips.
    Fig 1: Removing Clips
    G02770977Courtesy of FORD MOTOR CO.
  2. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.
    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G02770978Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod (6200) from the piston.

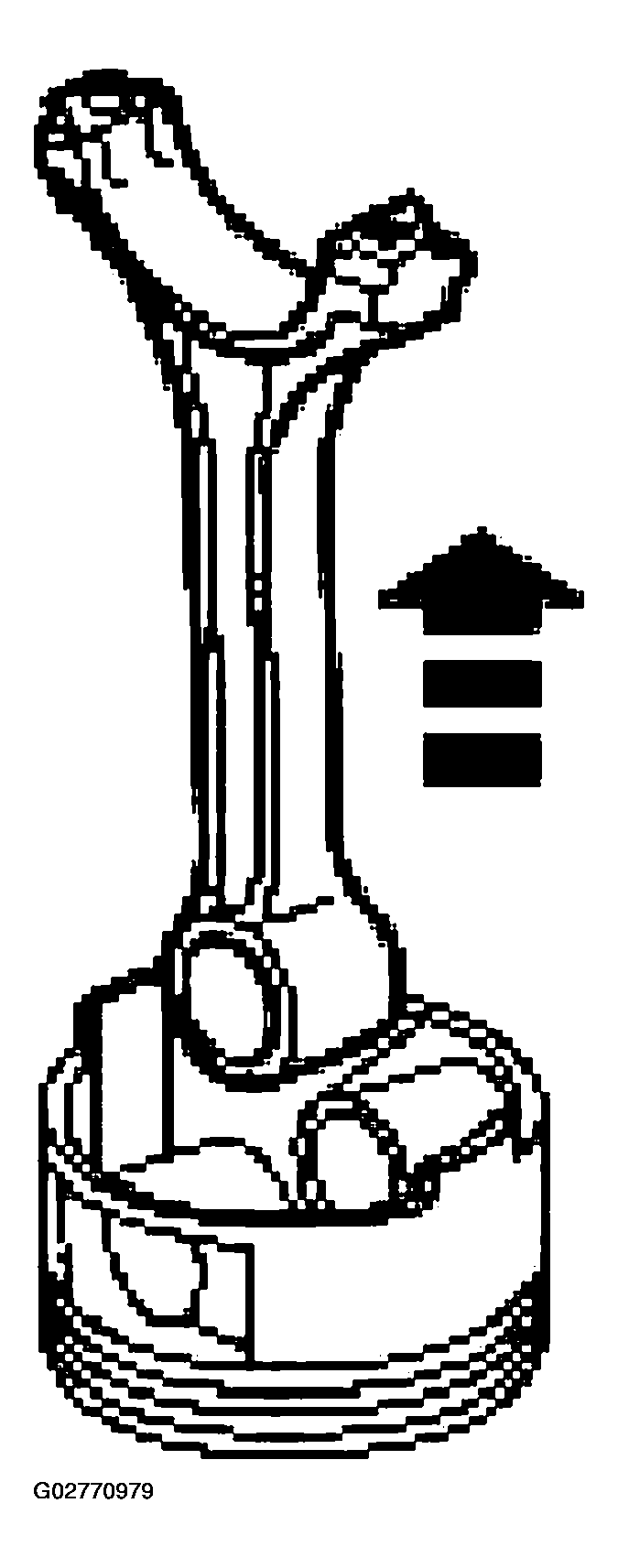

    Fig 3: Removing Connecting Rod From Piston
    G02770979Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
