General Procedures: Sprockets

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: To avoid the possibility of personal injury or damage to the vehicle, do not operate the engine with the hood open until the fan blade has been examined for possible cracks and separation.
    NOTE: Specifications show the expected minimum or maximum condition.
    NOTE: If a component fails to meet the specifications, it is necessary to install a new component or refinish. If the component can be refinished, wear limits are provided as an aid to making a decision. A new component must be installed for any component that fails to meet specifications and cannot be refinished.
  1. Inspect the timing chain/belt and the sprockets.
    • Install new components as necessary.

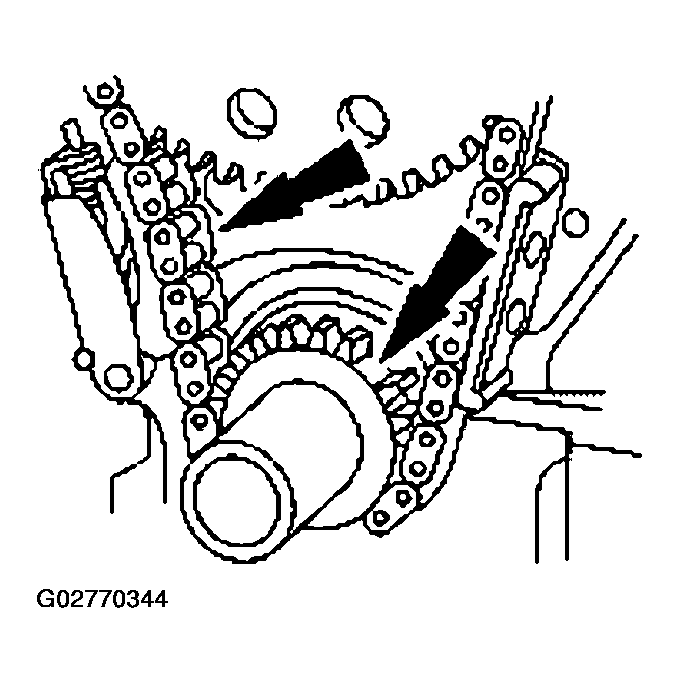

      Fig 1: Inspecting Timing Chain/Belt And Sprockets
      G02770344Courtesy of FORD MOTOR CO.
