Crankshaft End Play

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
Position the crankshaft to the rear of the cylinder block.
Zero the indicator.
Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337).

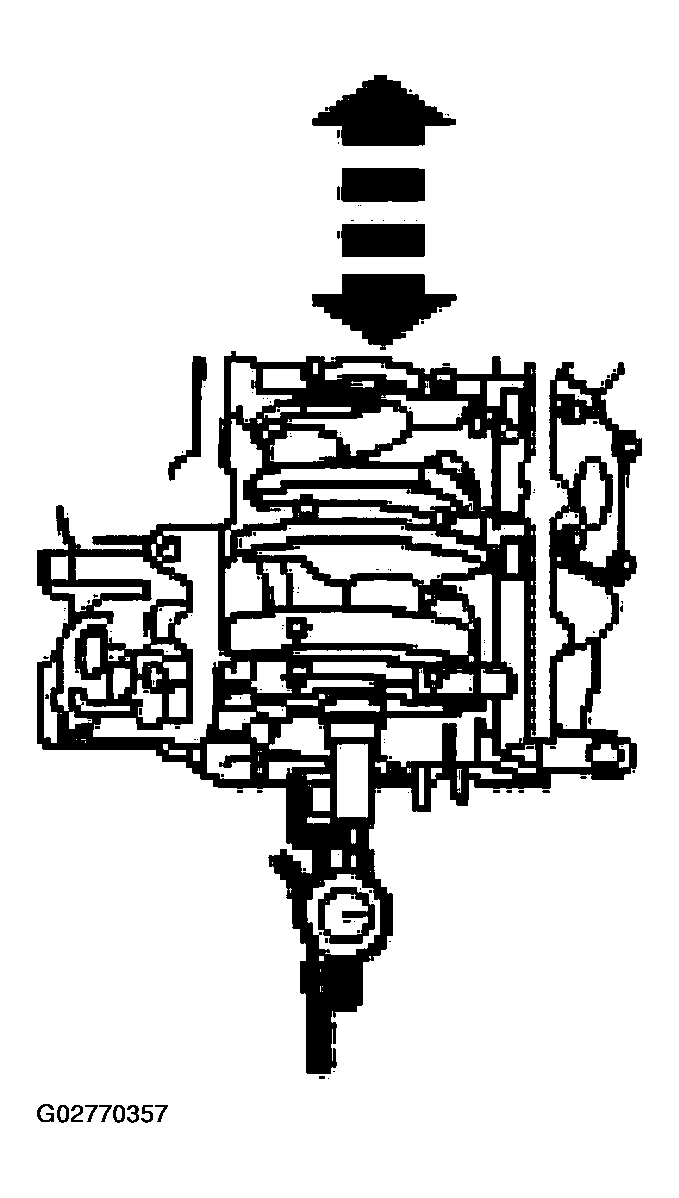

  Fig 2: Measuring Crankshaft End Play Using Dial Indicator Gauge
  Courtesy of FORD MOTOR CO.
