Connecting Rod - Twist

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
- If out of specification, install new components as necessary.

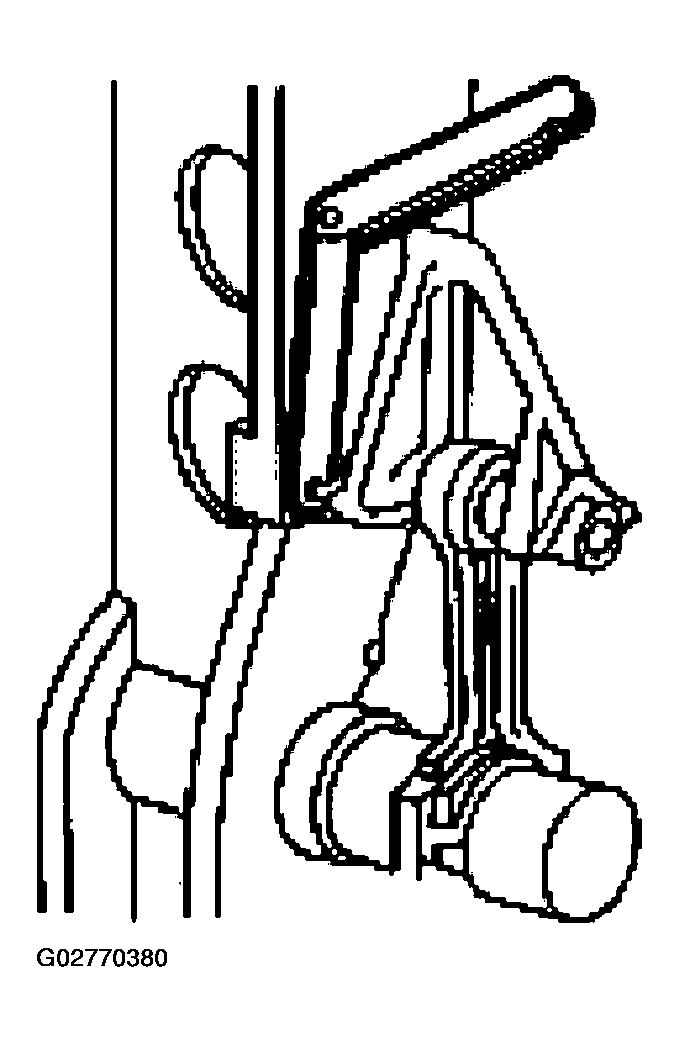

  Fig 1: Measuring Connecting Rod Twist On Alignment Fixture
  Courtesy of FORD MOTOR CO.
