Sector Shaft Arm Drag Link - F-250, F-350, 4x2: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.
- Install a new cotter pin.
Fig 1: Installing Cotter Pin
Courtesy of FORD MOTOR CO.

Fig 2: Identifying Cotter Pin Tightening Torque
Courtesy of FORD MOTOR CO.

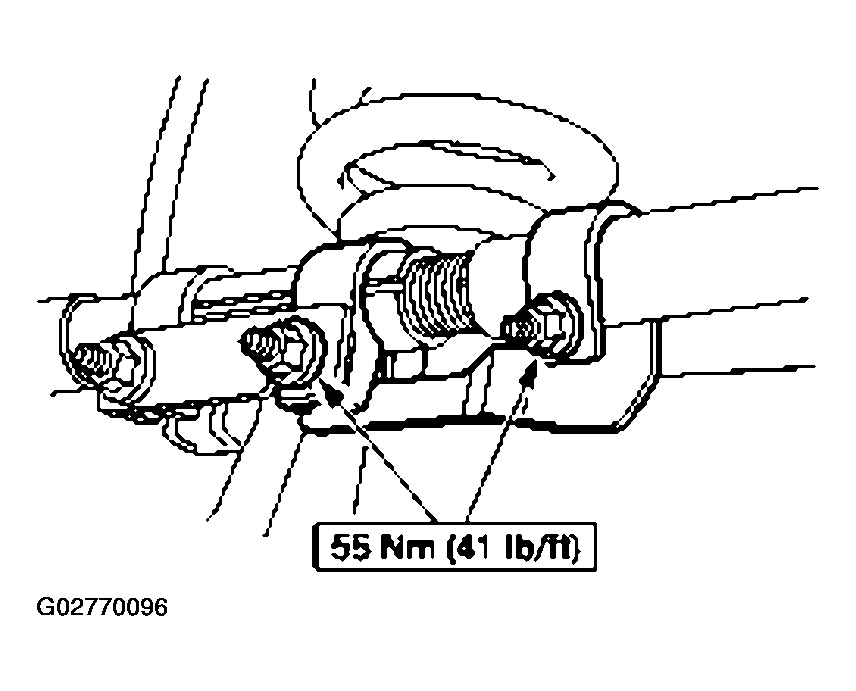

Fig 3: Identifying Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Check the toe-in and clear vision settings; Refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
