Steering System Components - 5.4L and 6.8L Gas Engines with Hydra Boost Brake System (CIII Power Steering Pump)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

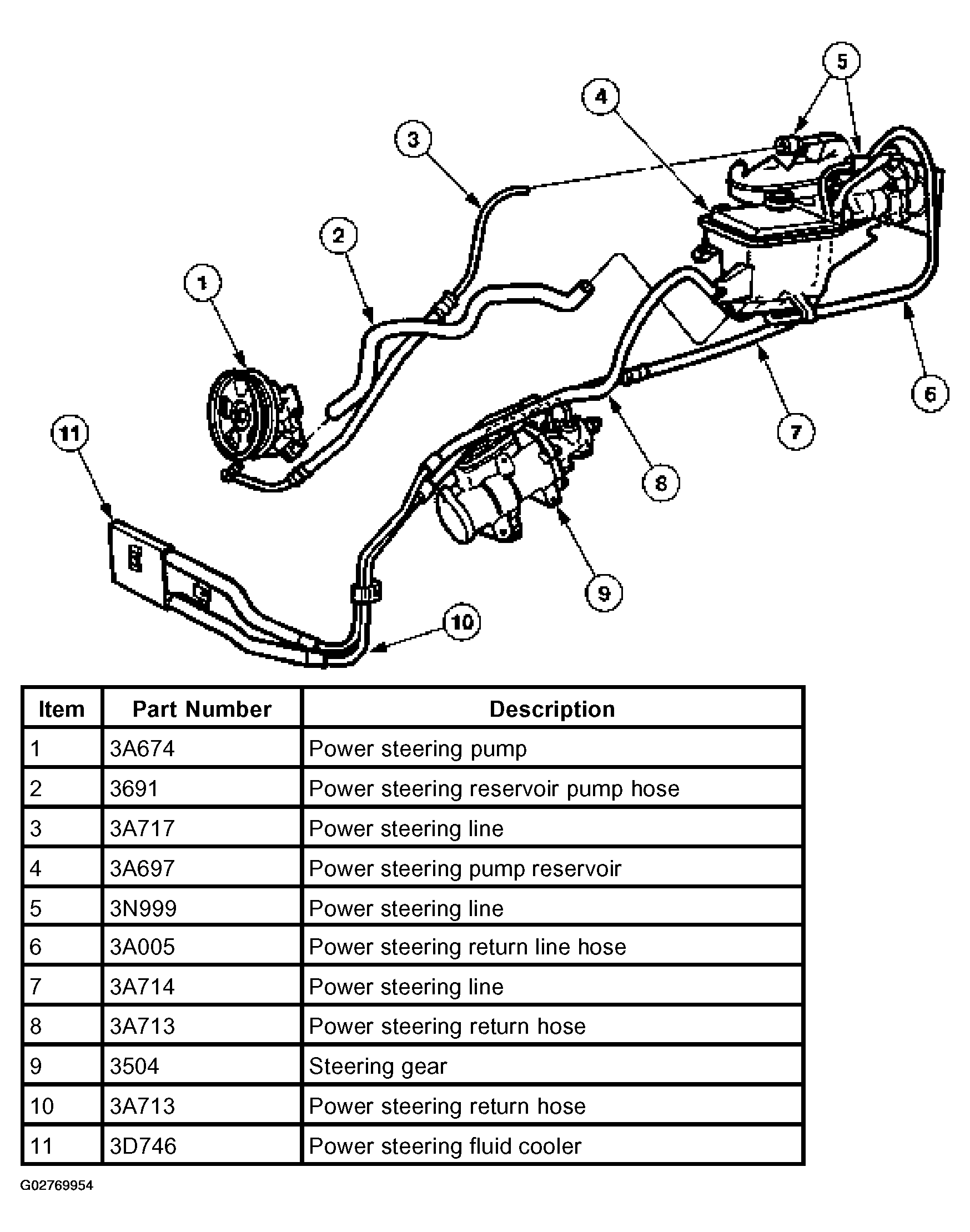

Fig 1: Identifying Steering System Components

Courtesy of FORD MOTOR CO.

For information on the power steering pump reservoir (3E764), refer to POWER STEERING .

For information on the steering wheel and column assembly, refer to STEERING COLUMN .

For information on the power steering fluid lines, refer to POWER STEERING .

For information on the front wheel spindles (4x2), refer to FRONT - 2WD .

For information on the power steering fluid cooler (3D746), refer to POWER STEERING .

For information on the power steering pump (3A674), refer to POWER STEERING .

For information on the steering gear (3504), refer to POWER STEERING .

For information on the steering linkage, refer to STEERING LINKAGE .

For information on the wheel hub (1104) (4x4), refer to FRONT - 4WD LEAF SPRING .
