Differential Carrier: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shafts. Refer to AXLE SHAFT .
  2. Remove the differential cover.
    3. CAUTION: Index-mark the position of the differential bearing caps, as arrows may not be visible. The differential bearing caps must be installed in their original locations and positions.

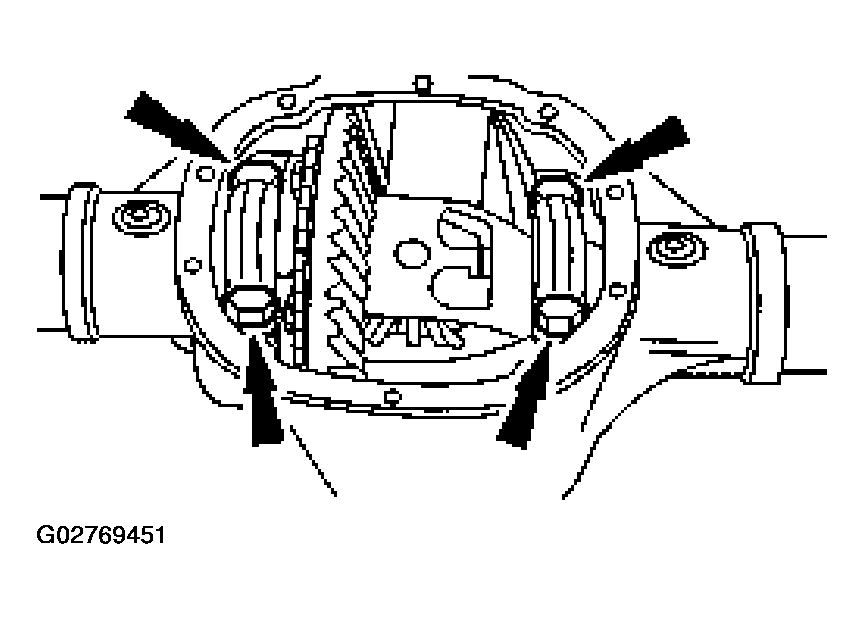

    Fig 1: Removing Differential Bearing Cap Bolts And Differential Bearing Caps
    G02769451Courtesy of FORD MOTOR CO.
  3. Remove the differential bearing cap bolts and the differential bearing caps.
    4. WARNING: Be careful not to allow the differential assembly to fall.
    CAUTION: Place a wood block between the pry bar and the axle housing to protect the machined surface from damage.
    CAUTION: Index-mark the position of the differential bearing shims. The differential bearing shims must be installed in their original locations and positions.

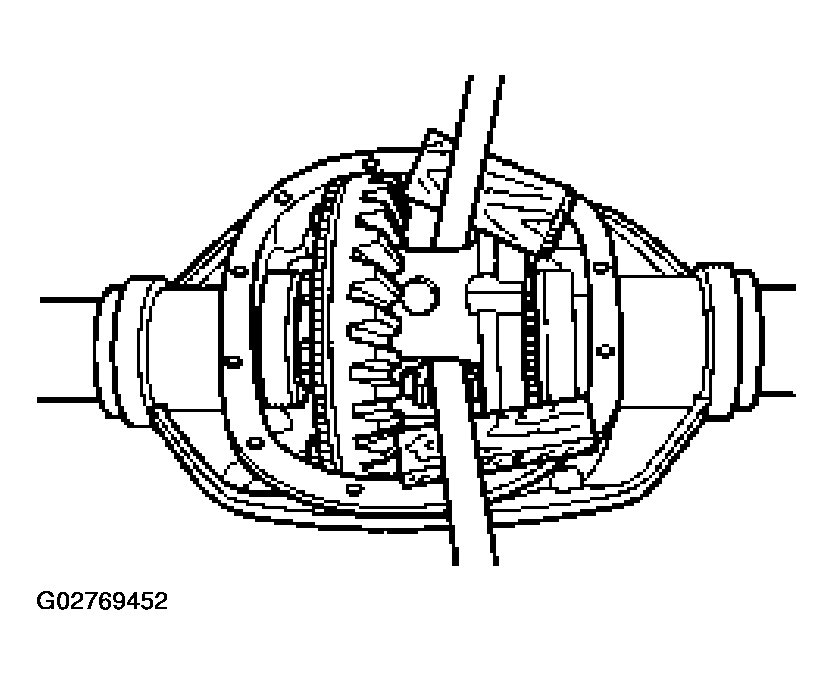

    Fig 2: Removing Differential Assembly From Axle Housing
    G02769452Courtesy of FORD MOTOR CO.
  4. Using pry bars and wood blocks, remove the differential assembly from the axle housing.
