WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

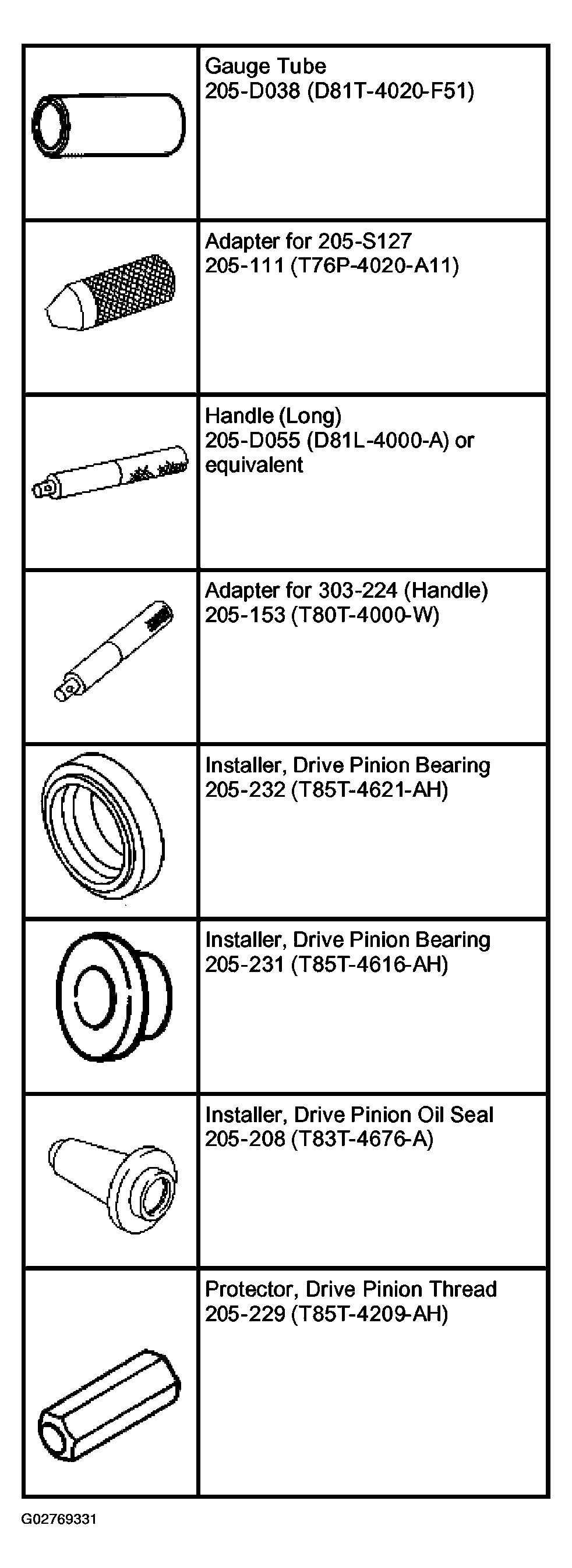

Fig 1: Identifying Differential Ring And Pinion Special Tool(s) (1 Of 3)
Courtesy of FORD MOTOR CO.

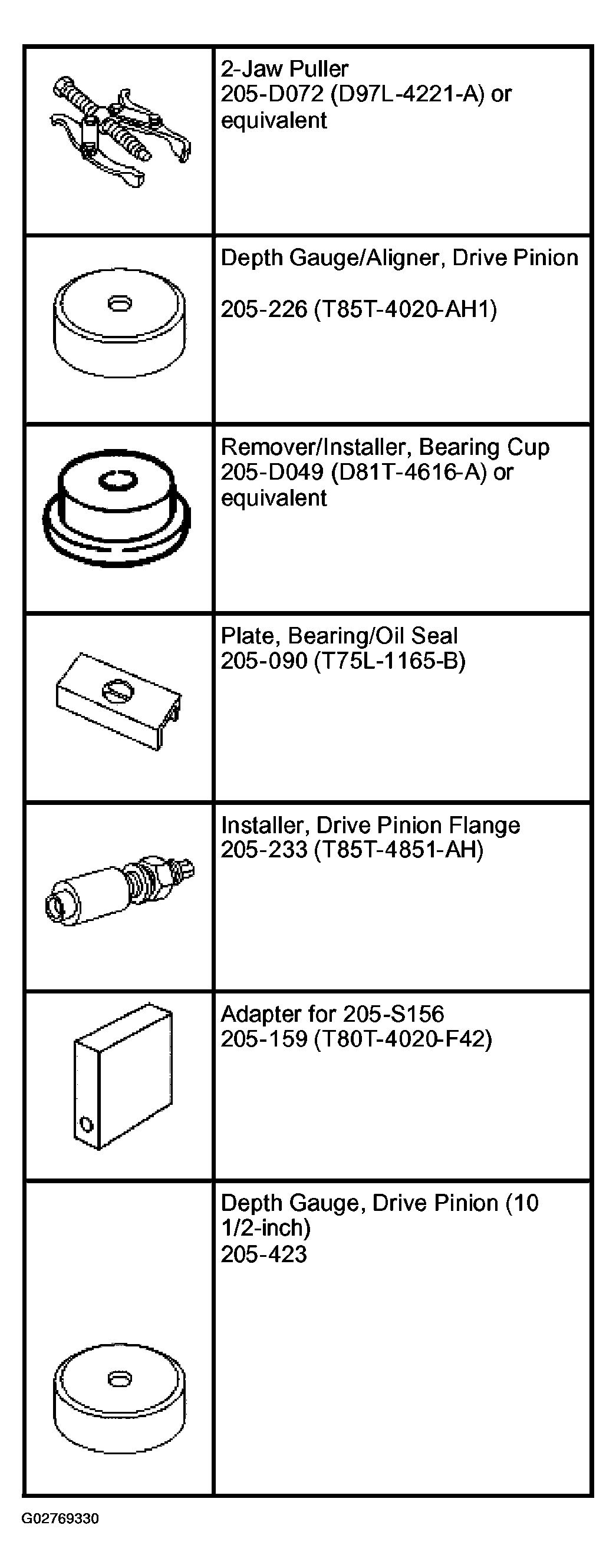

Fig 2: Identifying Differential Ring And Pinion Special Tool(s) (2 Of 3)
Courtesy of FORD MOTOR CO.

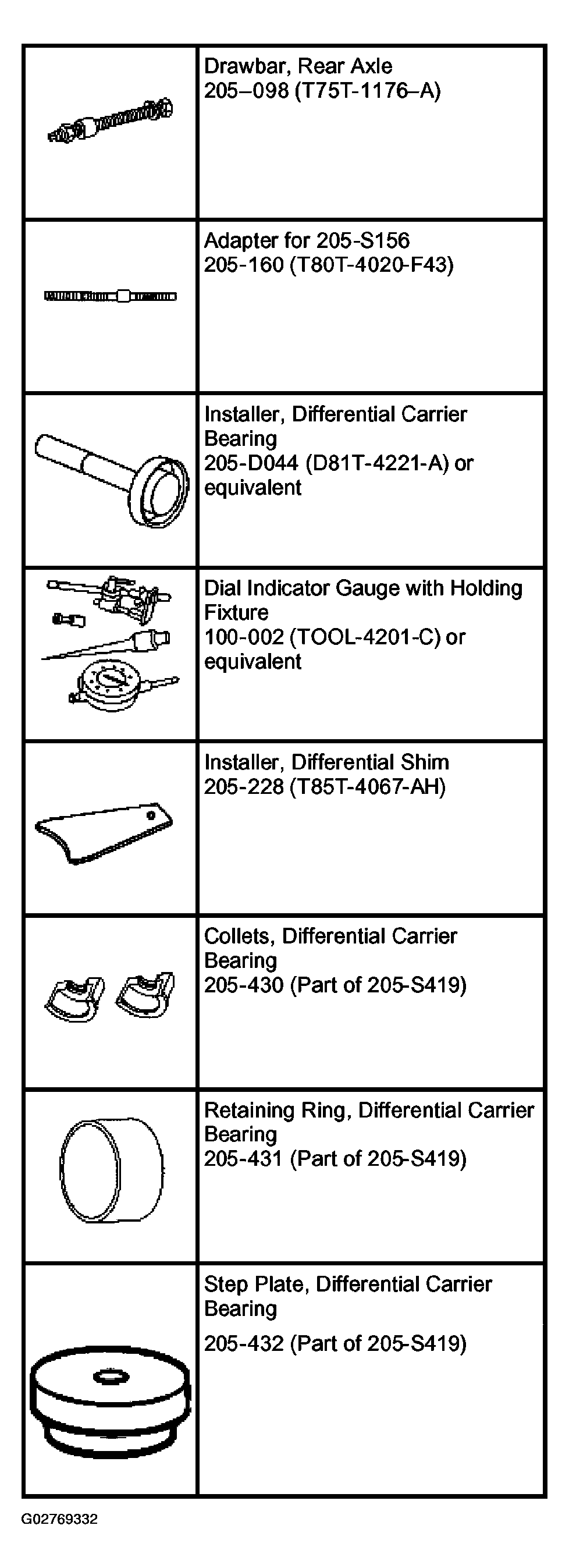

Fig 3: Identifying Differential Ring And Pinion Special Tool(s) (3 Of 3)
