Differential Case and Ring Gear - Two-Piece, Traction-Lok: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case. Refer to DIFFERENTIAL CASE .
  2. Remove the ring gear bolts.

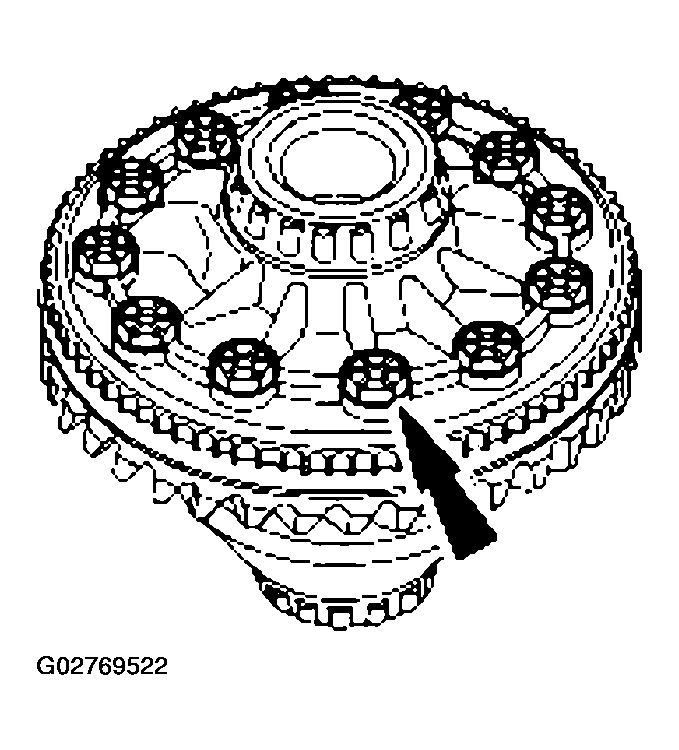

    Fig 1: Removing Ring Gear
    G02769522Courtesy of FORD MOTOR CO.
    3. NOTE: The anti-lock speed sensor ring cannot be reused once removed.
  3. Insert a punch in the bolt holes and drive the ring gear off.
    • If necessary, remove the anti-lock speed sensor ring and discard it.
      Fig 2: Inserting A Punch In Bolt Holes And Drive Ring Gear
      G02769523Courtesy of FORD MOTOR CO.
  4. If the differential bearings require removal, refer to DIFFERENTIAL CASE .
    5. NOTE: This tool does not have the 1/2-inch drive hole.
    Fig 3: Positioning Special Tool A Vise
    G02769524Courtesy of FORD MOTOR CO.
  5. Position the special tool in a vise.
  6. Position the differential case on the special tool.
    Fig 4: Positioning Differential Case On Special Tool
    G02769525Courtesy of FORD MOTOR CO.
  7. Index-mark the differential case halves.

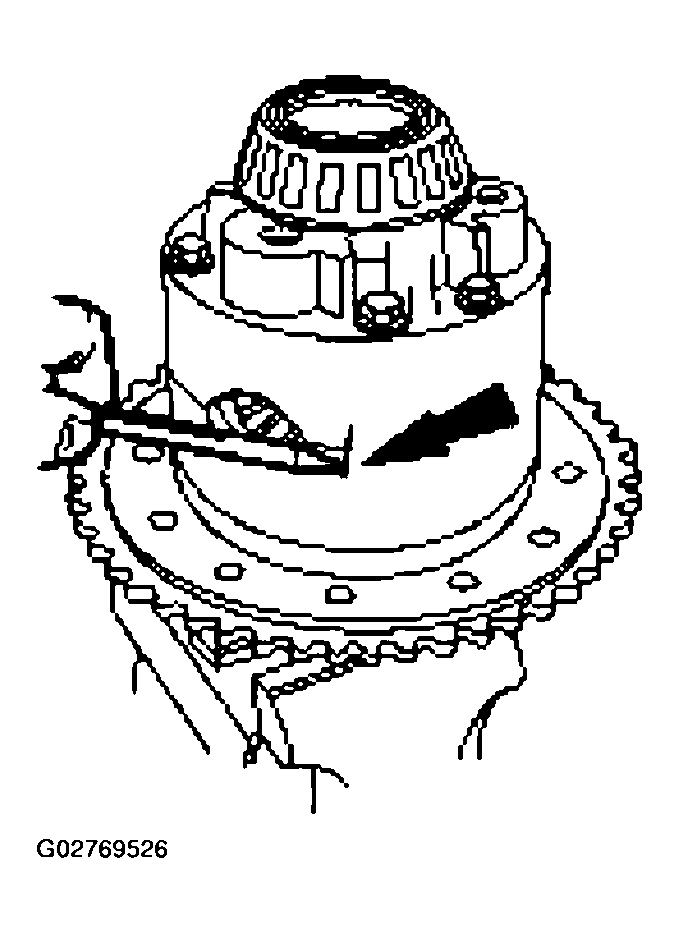

    Fig 5: Identifying Mark Differential Case Halves
    G02769526Courtesy of FORD MOTOR CO.
  8. Remove the differential case bolts.

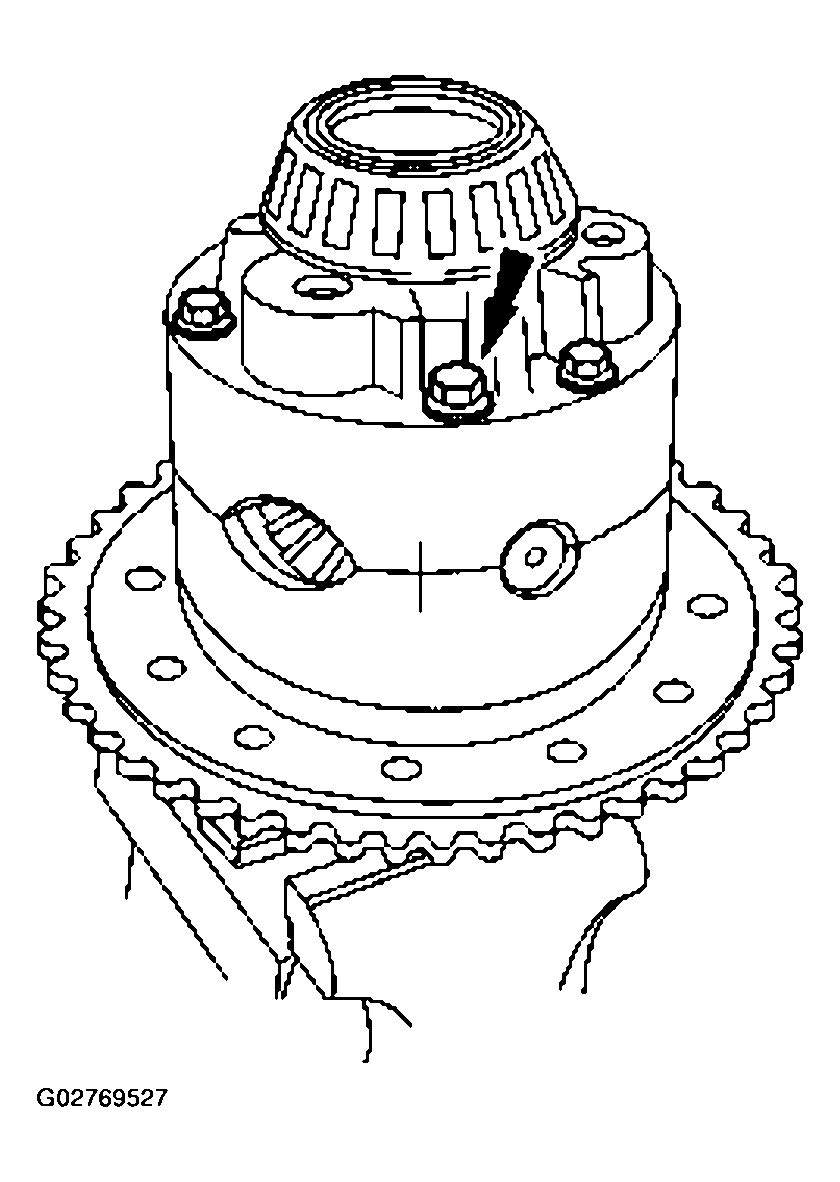

    Fig 6: Removing Differential Case
    G02769527Courtesy of FORD MOTOR CO.
  9. Remove the right differential case half and differential side gear.

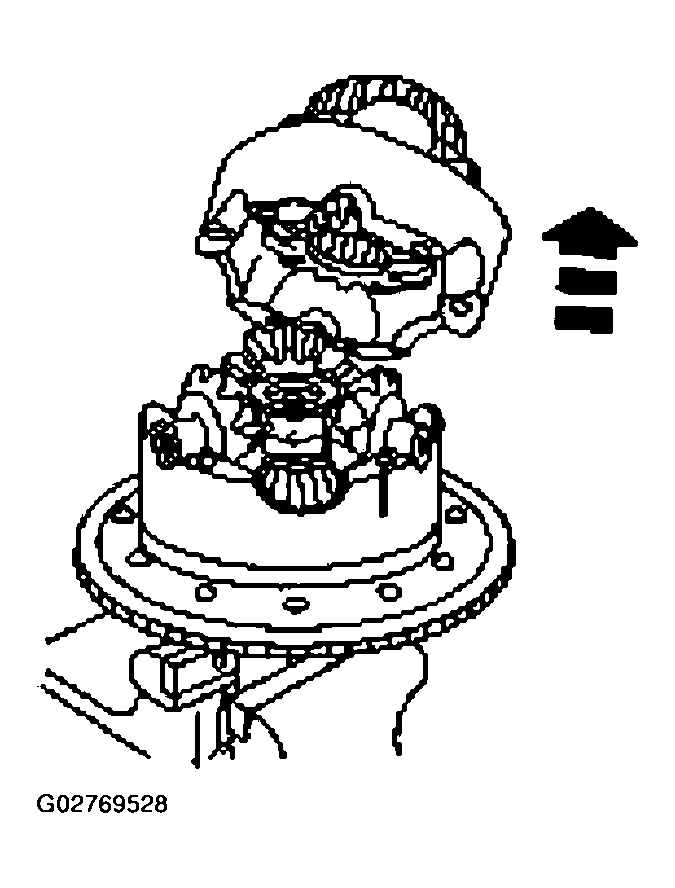

    Fig 7: Removing Right Differential Case Half And Differential Side Gear
    G02769528Courtesy of FORD MOTOR CO.
  10. Remove the differential pinion shaft and differential pinion gears.

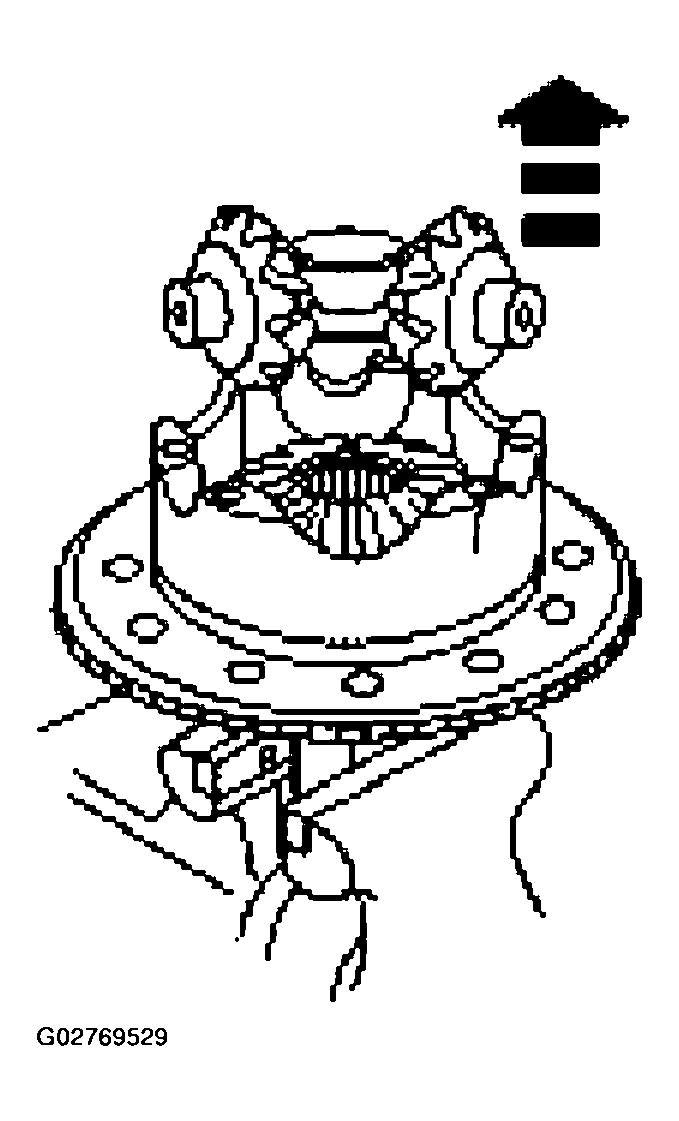

    Fig 8: Removing Differential Pinion Shaft And Differential Pinion Gears
    G02769529Courtesy of FORD MOTOR CO.
  11. Remove the differential pinion gears from the differential pinion shaft.
    Fig 9: Removing Differential Pinion Gears From Differential Pinion Shaft
    G02769530Courtesy of FORD MOTOR CO.
  12. Remove both differential side gears and differential clutch packs from each differential case half.

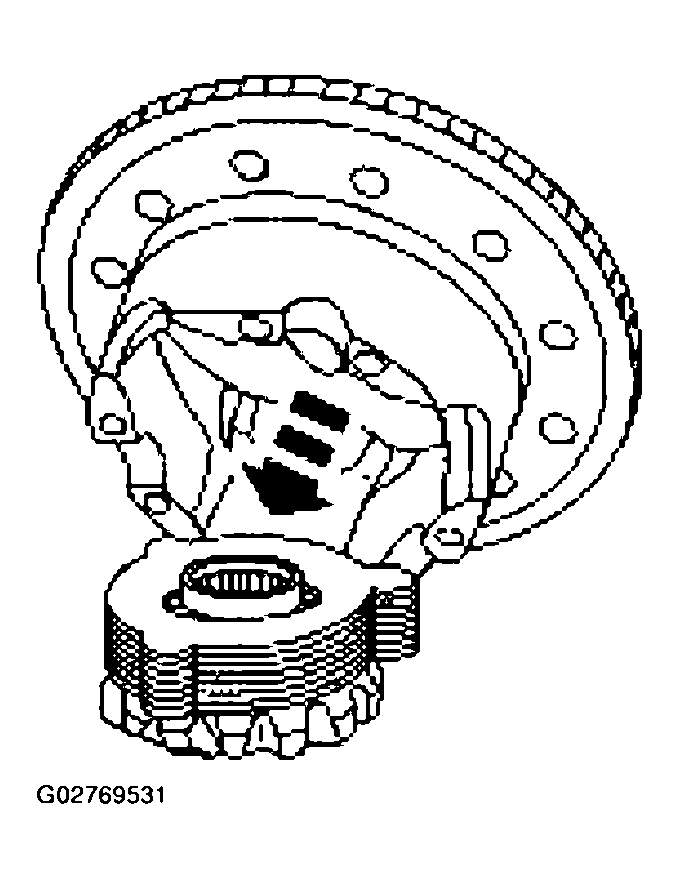

    Fig 10: Removing Differential Side Gears And Differential Clutch Packs From Each Differential Case Half
    G02769531Courtesy of FORD MOTOR CO.
  13. Remove the Belleville spring and shim(s) from both differential clutch packs.
    Fig 11: Removing Belleville Spring And Shim(s) From Both Differential Clutch
    G02769532Courtesy of FORD MOTOR CO.
