Differential Case and Ring Gear - One Piece, Conventional: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the differential side gear thrust washers on the differential side gears.
    • Use premium long-life grease to lubricate the differential side gear thrust washers and the differential side gear journals.
      Fig 1: Positioning Differential Side Gear Thrust Washers On Differential Side Gears
      G02769465Courtesy of FORD MOTOR CO.

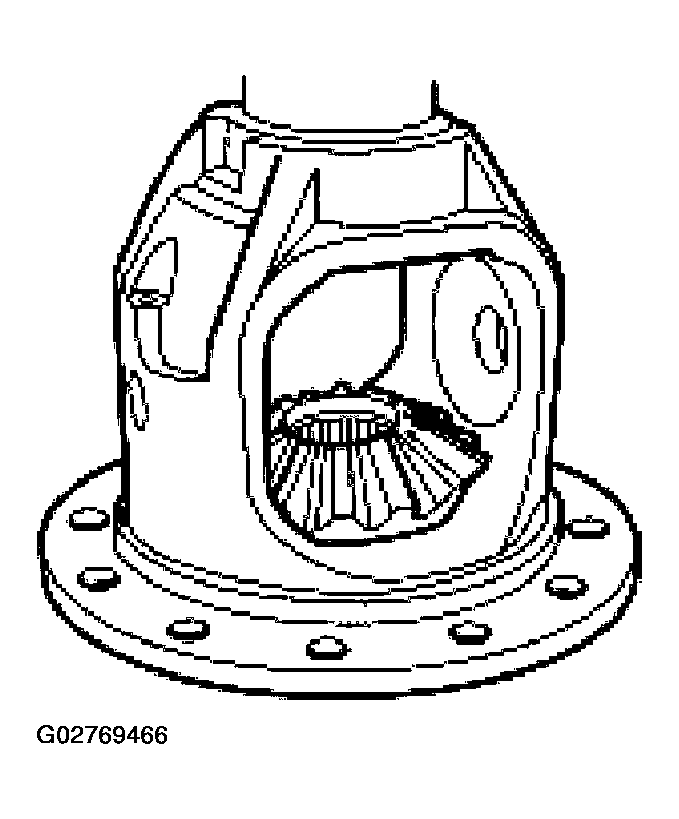

  2. Position the differential side gears.
    Fig 2: Positioning Differential Side Gears
    G02769466Courtesy of FORD MOTOR CO.
  3. Using premium long-life grease, assemble the differential pinion thrust washers and the differential pinion gears.
    Fig 3: Using Premium Long-Life Grease, Assemble Differential Pinion Thrust Washers And Differential Pinion Gears
    G02769467Courtesy of FORD MOTOR CO.

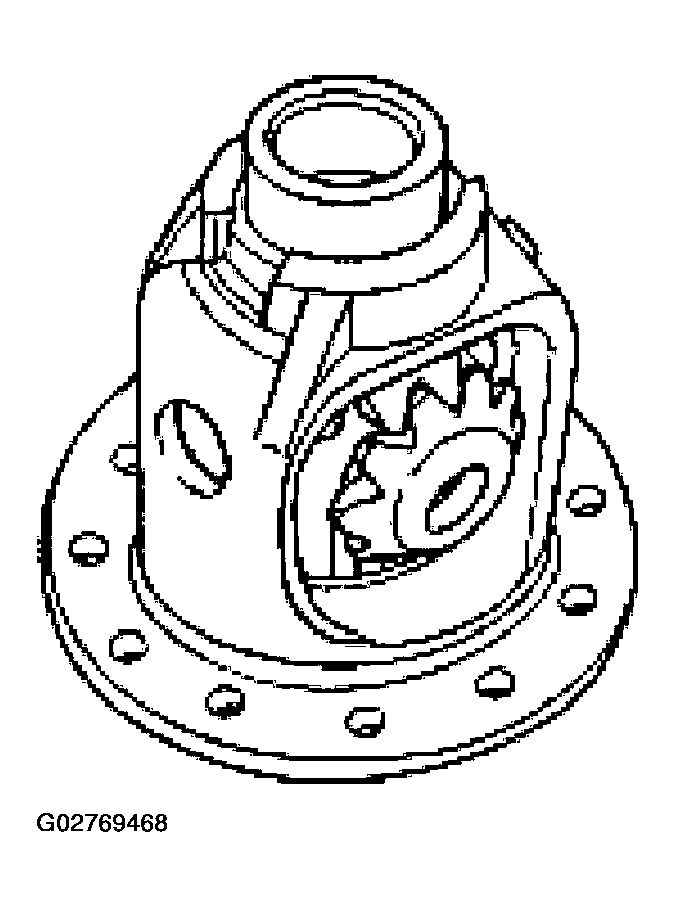

  4. Engage the differential pinion gears opposite the differential side gears.
    Fig 4: Engaging Differential Pinion Gears Opposite Differential Side Gears
    G02769468Courtesy of FORD MOTOR CO.

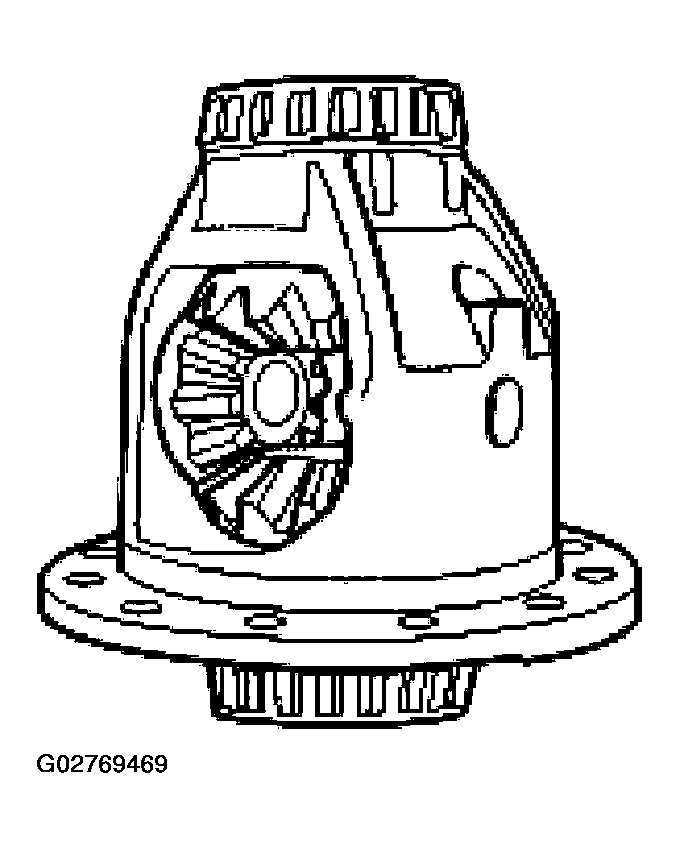

  5. Rotate the differential pinion gears to align the differential pinion shaft bore.
    Fig 5: Aligning Differential Pinion Shaft Bore
    G02769469Courtesy of FORD MOTOR CO.
  6. CAUTION: If a new pinion shaft lock bolt is not available, use thread sealant and tighten to specification.
  7. Insert the differential pinion shaft and install a new differential pinion shaft lock bolt.
    • Tighten to 30 Nm (23 lb-ft).
      Fig 6: Installing A New Differential Pinion Shaft Lock
      G02769470Courtesy of FORD MOTOR CO.
  8. Using the special tool, install the differential bearings.
    Fig 7: Installing Differential Bearings
    G02769471Courtesy of FORD MOTOR CO.
  9. Press the new anti-lock speed sensor ring and the ring gear on the differential case.
    Fig 8: Pressing New Anti-Lock Speed Sensor Ring And Ring Gear On Differential Case
    G02769472Courtesy of FORD MOTOR CO.

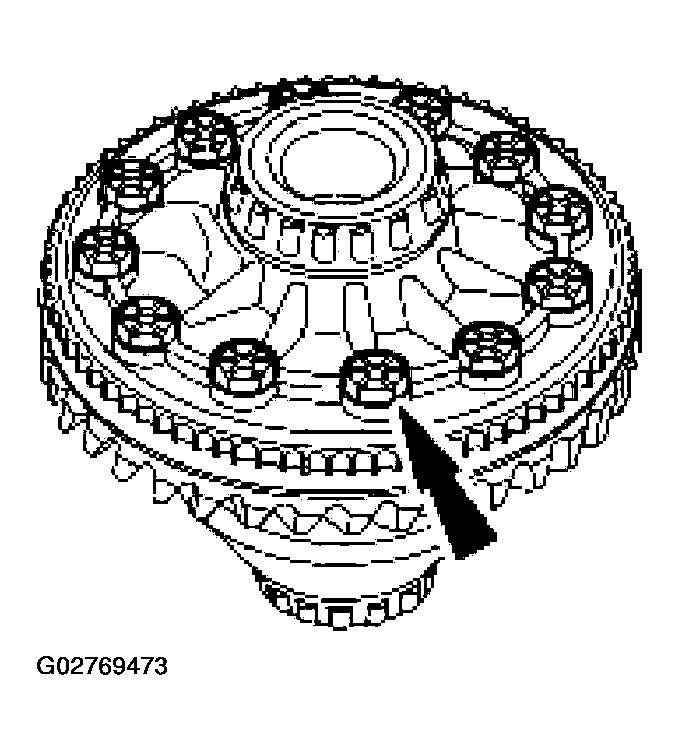

  10. Using a thread sealant, install the ring gear bolts and tighten.
    • Tighten to 150 Nm (110 lb-ft).
      Fig 9: Installing Ring Gear Bolts And Tighten
      G02769473Courtesy of FORD MOTOR CO.
  11. Install the differential case. Refer to DIFFERENTIAL CASE .
