Diagnostic Routine - Fluid Loss

WARNING: This page is about a different car, the 2004 Ford Pickup and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

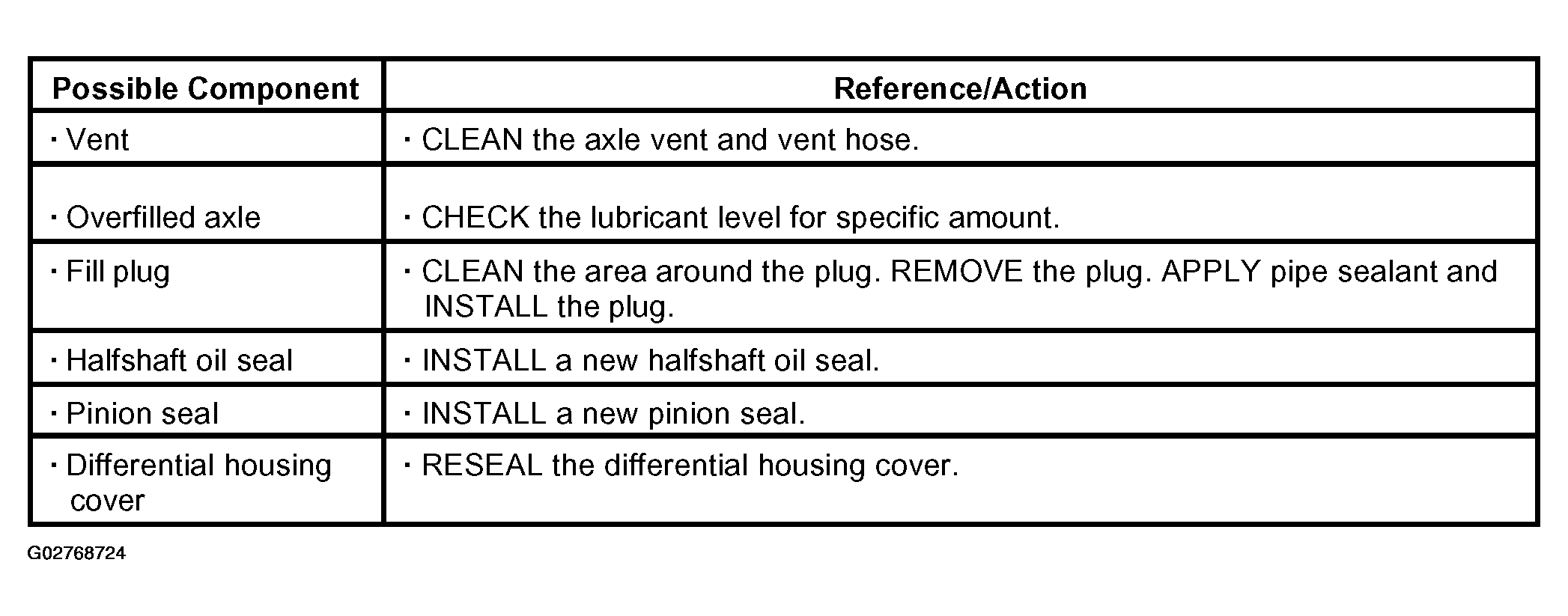

Fig 1: Identifying Diagnostic Routine - Fluid Loss
G02768724Courtesy of FORD MOTOR CO.
