Driveshaft - Rear, One-Piece, Four Wheel Drive (4WD): Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With vehicle in NEUTRAL, position it on a hoist. For additonal information, Refer to JACKING & LIFTING .
  2. Index-mark the driveshaft yoke and the transfer case flange.
    Fig 1: Aligning Index-Mark Driveshaft Flange To Transfer Case Rear Output Flange
    G03944127Courtesy of FORD MOTOR CO.
  3. Remove and discard the 4 transfer case output flange-to-rear driveshaft flange bolts.
    Fig 2: Removing Transfer Case Rear Output Flange Bolts
    G03944130Courtesy of FORD MOTOR CO.
  4. Vehicles with split pin yoke

  5. Index-mark the driveshaft and the rear axle pinion flange.
    Fig 3: Identifying Index-Mark Driveshaft And Rear Axle Pinion Flange
    G02768612Courtesy of FORD MOTOR CO.
  6. Remove and discard the 4 rear driveshaft-to-transfer case bolts and the 2 U-joint retainers.
    Fig 4: Disconnecting Four Bolts And Two U-Joint Retainers
    G02768613Courtesy of FORD MOTOR CO.
  7. Vehicles with circular flange

  8. Index-mark the driveshaft yoke to the rear axle pinion flange.

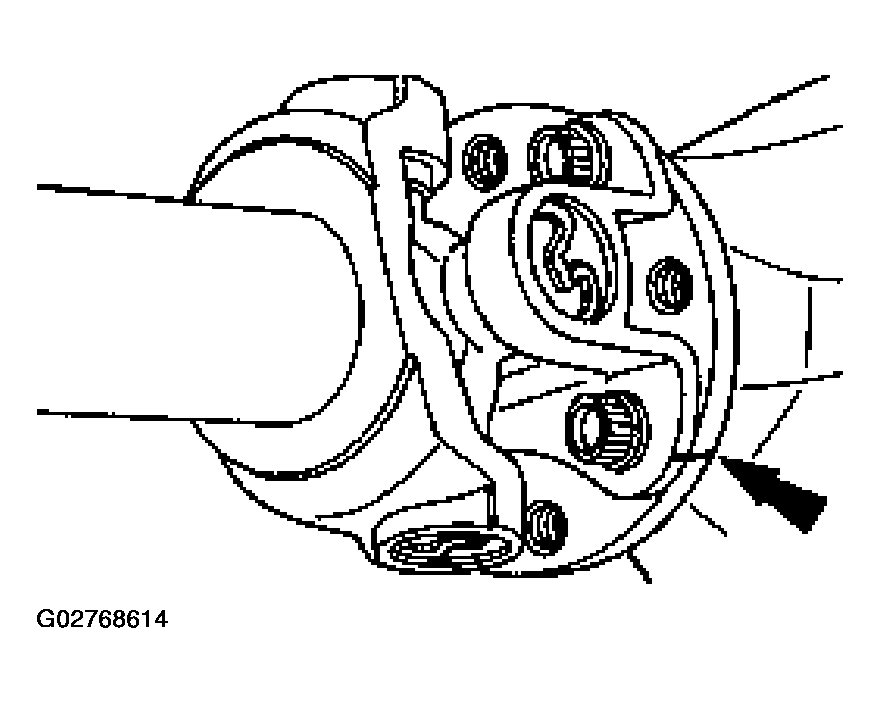

    Fig 5: Identifying Index-Mark And Rear Axle Pinion Flange
    G02768614Courtesy of FORD MOTOR CO.
  9. Remove and discard the 4 rear driveshaft-to-axle bolts.
    Fig 6: Disconnecting Four Bolts Driveshaft Yoke
    G02768615Courtesy of FORD MOTOR CO.
  10. Vehicles with split pin yoke

  11. CAUTION: It may be necessary to unseat the bearing cup assemblies by tapping on the yoke or bearing cup with a plastic or rubber soft-faced hammer.

    Disconnect the driveshaft from the rear axle pinion flange, and remove the driveshaft from the vehicle.

    • Tape the bearing cups to the spider to keep them from falling off the spider.
    Fig 7: Removing Driveshaft From Vehicle
    G02768616Courtesy of FORD MOTOR CO.
  12. Vehicles with circular flange

    CAUTION: The driveshaft yoke fits tightly on the rear axle pinion flange pilot. Pry only in the slot on each side of the driveshaft yoke, with a suitable tool, to disconnect the yoke from the flange.
    CAUTION: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft yoke.
    Fig 8: Disconnecting Driveshaft Yoke From Rear Axle Pinion Flange
    G02768617Courtesy of FORD MOTOR CO.
  13. Using a suitable tool, disconnect the driveshaft yoke from the rear axle pinion flange, and remove the driveshaft from the vehicle.
