Driveshaft - Rear, One-Piece, Four Wheel Drive (4WD): Installation

All vehicles

CAUTION: Align the index marks.

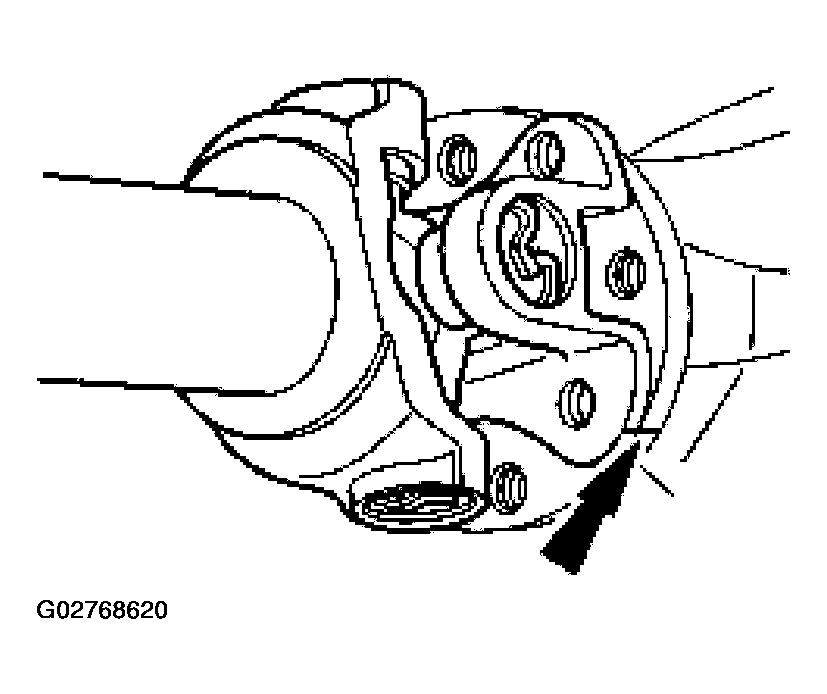

Fig 1: Aligning Index Marks For Position Driveshaft Yoke On Transfer Case Flange
Courtesy of FORD MOTOR CO.
1. Position the driveshaft yoke on the transfer case flange.

Vehicles with split pin yoke

2. Remove the tape from the bearing cups.
CAUTION: Align the index marks.
Fig 2: Aligning Index Marks For Position Bearing Cups In Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.
3. Position the bearing cups in the rear axle pinion flange.

Vehicles with circular flange

CAUTION: Align the index marks.
Fig 3: Aligning Index Marks Position Driveshaft Yoke On Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.
4. Position the driveshaft yoke on the rear axle pinion flange.

All vehicles

CAUTION: Install new bolts.
NOTE: Bolt direction is vehicle application dependent.
Fig 4: Installing Four New Bolts Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.
5. Loosely install the 4 new driveshaft-to-transfer case bolts.

Vehicles with split pin yoke

CAUTION: Install new bolts and new retainers.
6. Install the 2 new retainers and 4 new rear driveshaft-to-axle bolts.
   • Tighten to 35 Nm (26 lb-ft).
     Fig 5: Locating Rear Driveshaft-To-Axle Bolts

     Courtesy of FORD MOTOR CO.

Vehicles with circular flange

CAUTION: Install new bolts.
CAUTION: The driveshaft yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.
Fig 6: Locating Driveshaft-To-Axle Bolts
Courtesy of FORD MOTOR CO.
7. Install the 4 new driveshaft-to-axle bolts.
   • Tighten to 103 Nm (76 lb-ft).

All vehicles

8. Tighten the 4 driveshaft-to-transfer case bolts.
   • Tighten to 103 Nm (76 lb-ft).
   Fig 7: Locating Rear Driveshaft Flange Bolts

   Courtesy of FORD MOTOR CO.
