Camber and Caster Adjustment - F-250, F-350 4x4 and F-450, F-550

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Camber and Caster Adjustment - F-250, F-350 4X4 And F-450, F-550 Special Tool

Courtesy of FORD MOTOR CO.

Raise and support the vehicle; Refer to JACKING & LIFTING .
Remove the front wheel; Refer to WHEELS & TIRES .
Check and note the amount of camber in the current camber adjuster sleeve.
Select a new camber adjuster sleeve.
- The camber change required to obtain the optimum settings must be added or subtracted from the amount of camber in the old or production camber adjuster sleeve.
- Use this example as a guide. If the LH wheel camber must be reduced 1 degree and the existing camber adjuster sleeve has a +0.5 degree of camber, select the -0.5 degree camber adjuster sleeve.
Remove the cotter pin and castellated nut. Discard the cotter pin.

Fig 2: Removing Cotter Pin And Castellated Nut
Courtesy of FORD MOTOR CO.

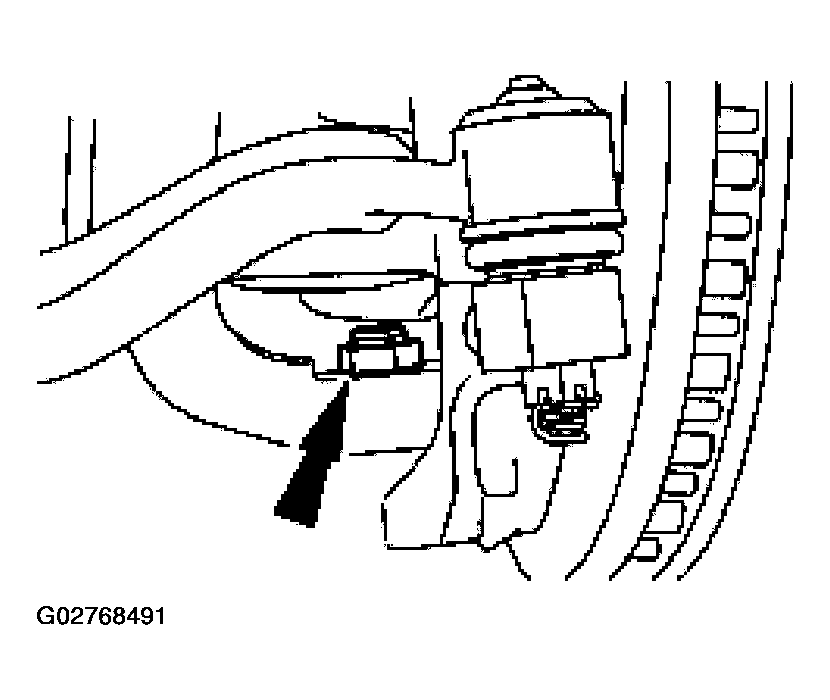

Install the nut.

Fig 3: Installing Nut
Courtesy of FORD MOTOR CO.
Loosen the nut to the end of the lower ball joint stud.

Fig 4: Loosening Nut To End Of Lower Ball Joint Stud
Courtesy of FORD MOTOR CO.

CAUTION: Use care not to damage the brake and vacuum lines when striking the spindle.

Separate the spindle from the axle.

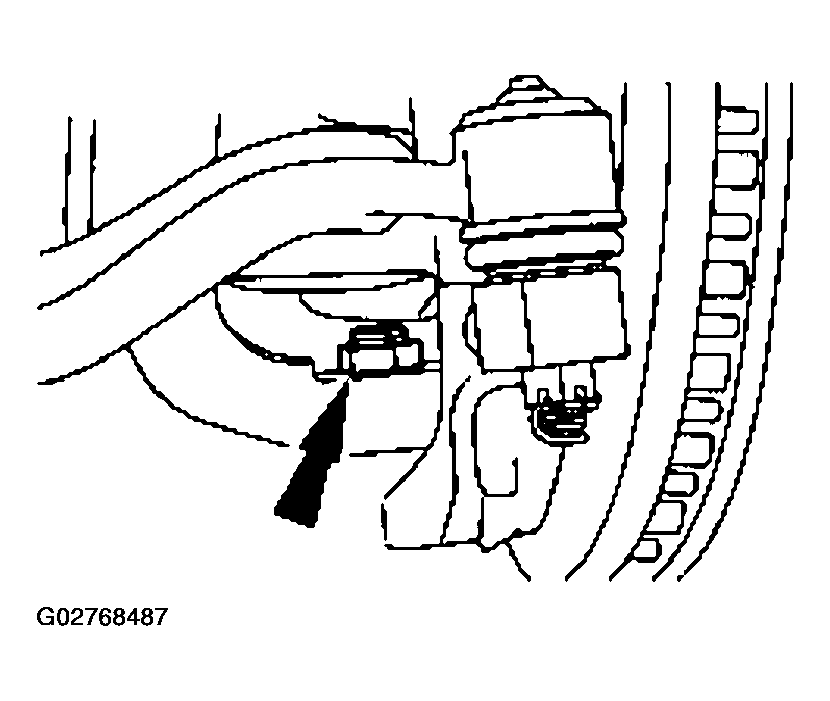

Remove the nut.

Fig 5: Removing Nut
Courtesy of FORD MOTOR CO.

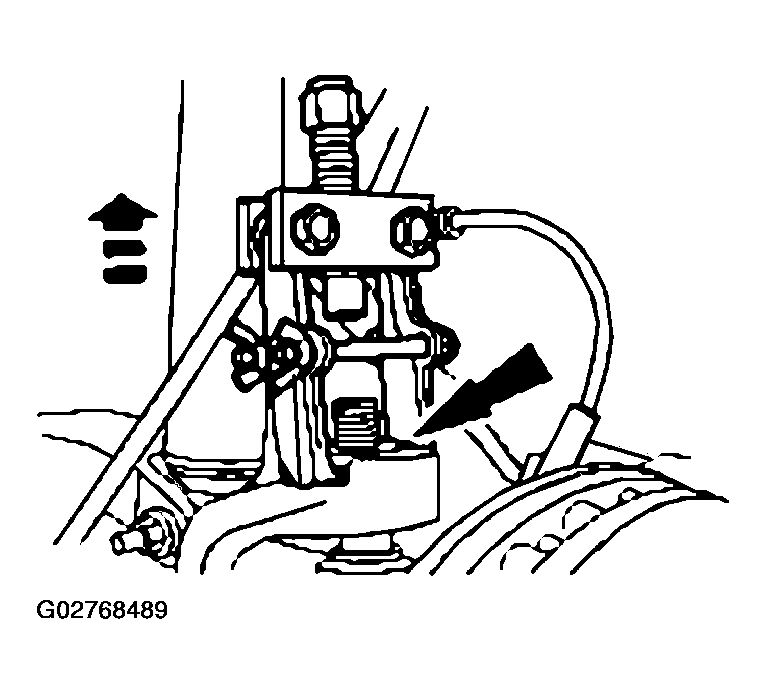

Remove the camber adjuster sleeve.
- Use the Steering Arm Remover.

  Fig 6: Removing Camber Adjuster Sleeve
  Courtesy of FORD MOTOR CO.

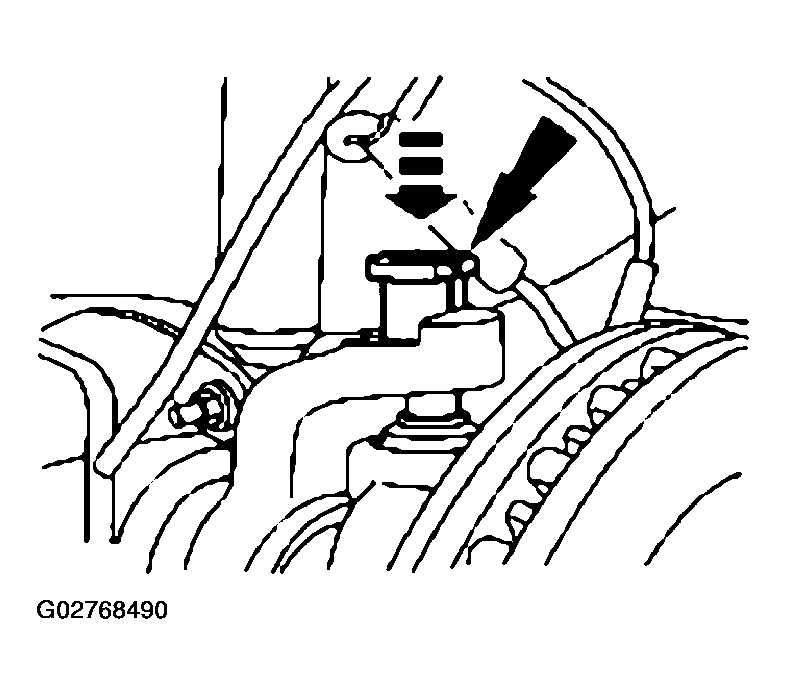

Install the new camber adjuster sleeve.

Fig 7: Installing Camber Adjuster Sleeve
Courtesy of FORD MOTOR CO.
Remove the nut.

Fig 8: Removing Nut
Courtesy of FORD MOTOR CO.

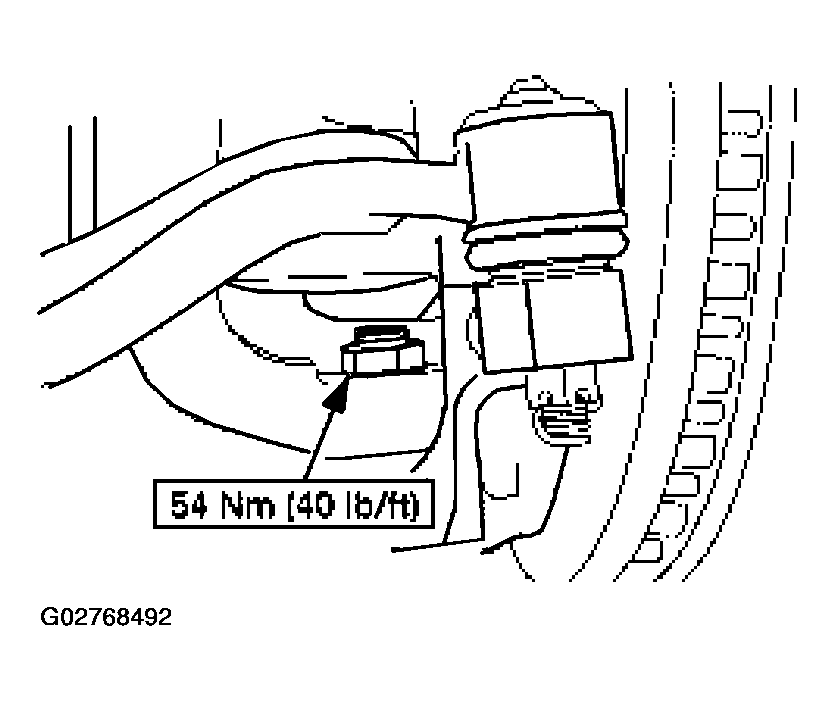

Install the nut and tighten to initial torque.
- Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specification WSK-M2G315-A5 (Type II).

  Fig 9: Installing Nut
  Courtesy of FORD MOTOR CO.

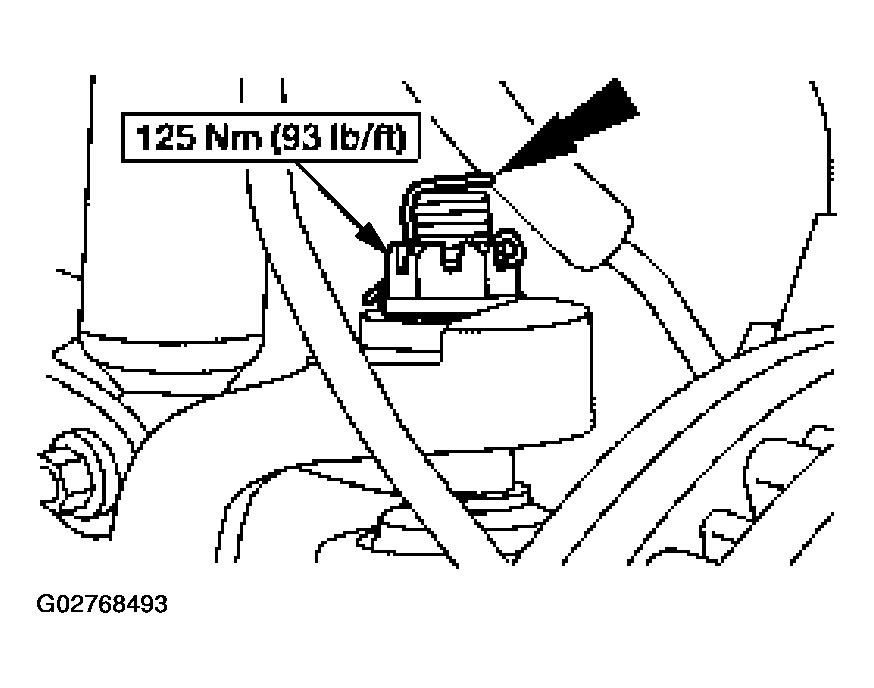

Install the castellated nut and a new cotter pin.

Fig 10: Installing Castellated Nut
Courtesy of FORD MOTOR CO.

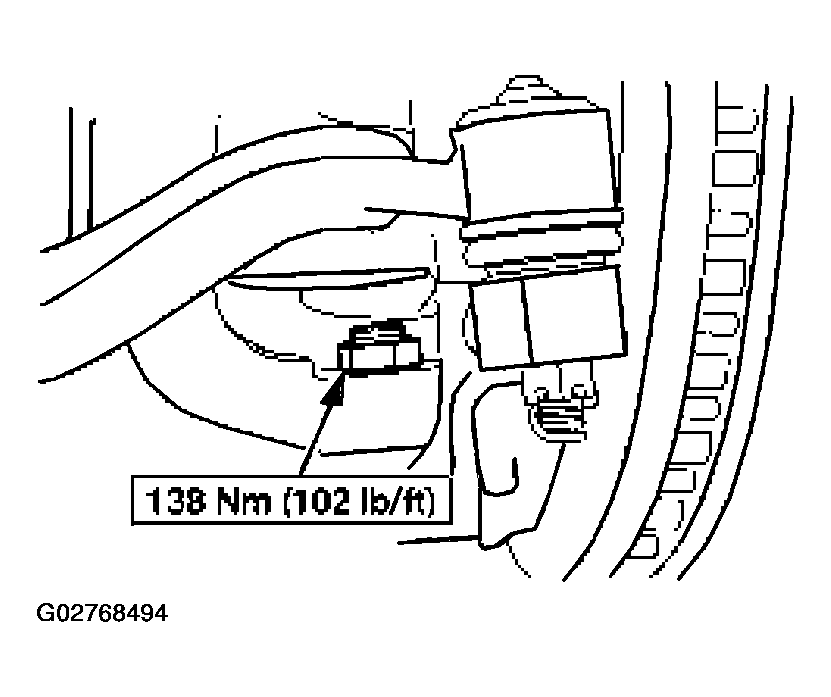

Tighten the nut to final torque.

Fig 11: Tightening Nut To Final Torque
Courtesy of FORD MOTOR CO.
Install the front wheel; Refer to WHEELS & TIRES .
Raise and support the vehicle; Refer to JACKING & LIFTING .
Recheck the camber measurement. Readjust as necessary.
