Protocol 3
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

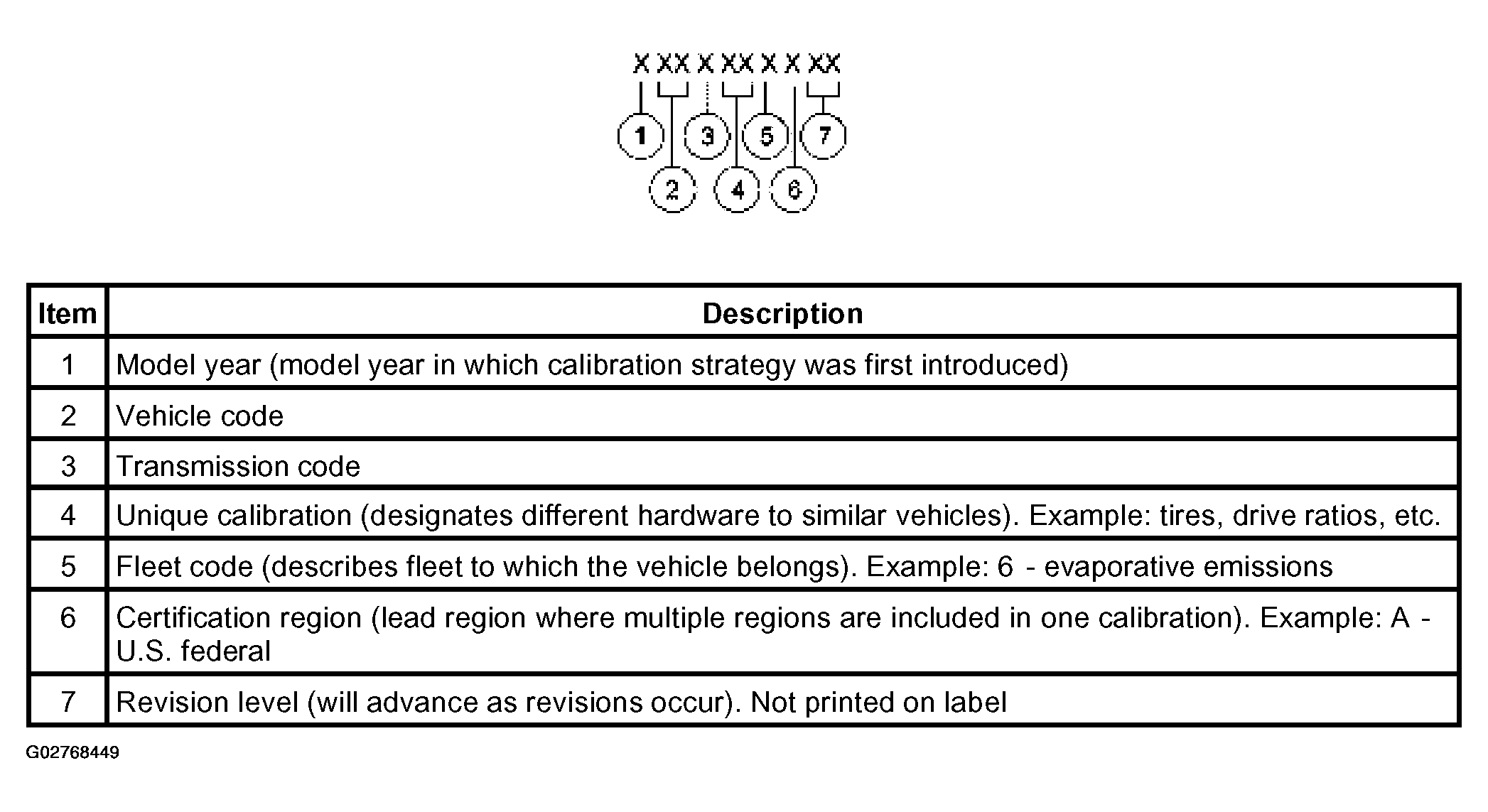

The following offers a more detailed explanation of the coding strategy used for Protocol 3.
Model Year
- 0 - 2000
- 1 - 2001
- 2 - 2002
- 3 - 2003
- 4 - 2004
Vehicle Code
- F7 - F-250 through F-550
- L1 - Excursion
Transmission
- 1 - Automatic transmission
- 2 - Manual transmission
