Safety Belt Twisted at the Safety Belt Guide

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

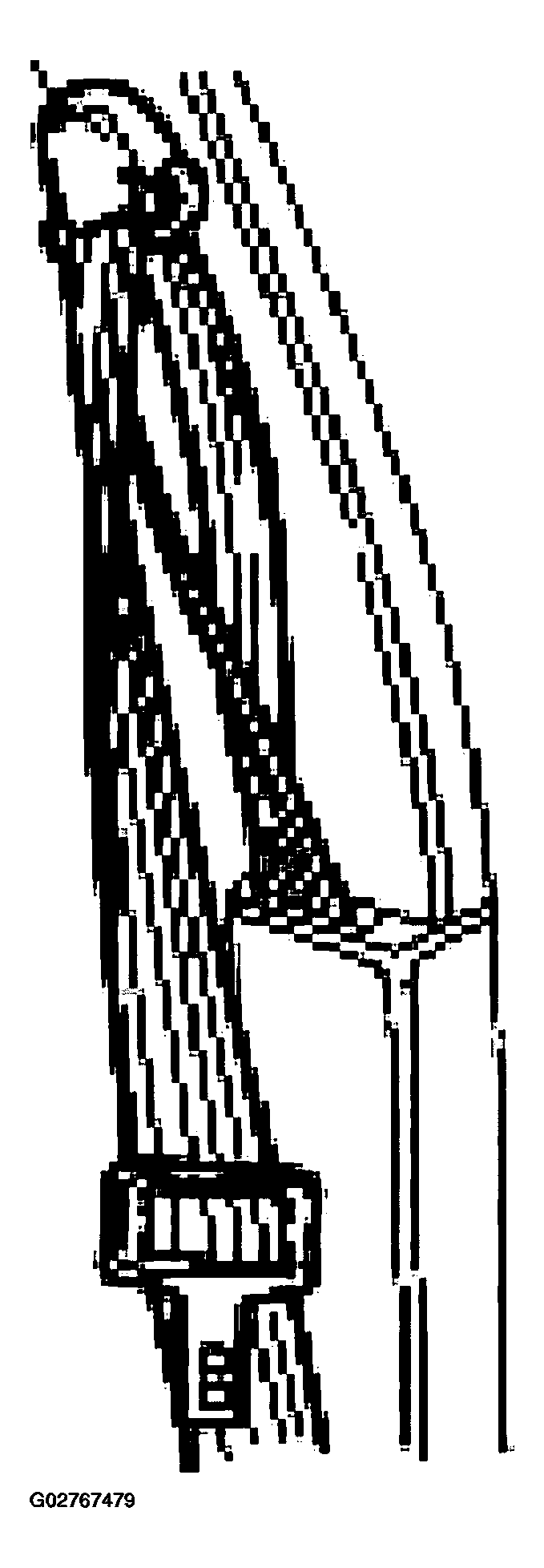

Fig 1: Identifying Safety Belt Twisted At The Safety Belt Guide

Courtesy of FORD MOTOR CO.

NOTE: These procedures apply to both wire-formed and stamped D-ring designs.

Grasp the belt webbing at the shoulder belt guide (D-ring).
Rotate and fold the belt webbing over itself to remove the twist.
Feed the folded portion of the belt through the safety belt guide (D-ring).

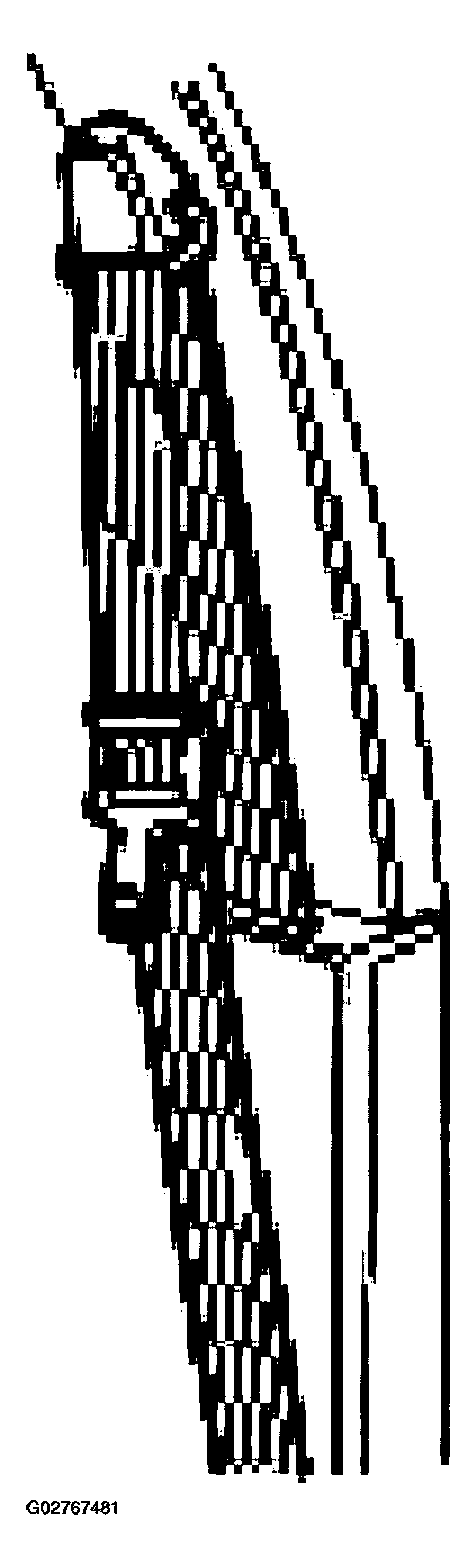

Fig 2: Identifying Safety Belt Guide (D-Ring)
Courtesy of FORD MOTOR CO.
When completed, the safety belt should look like the illustration.

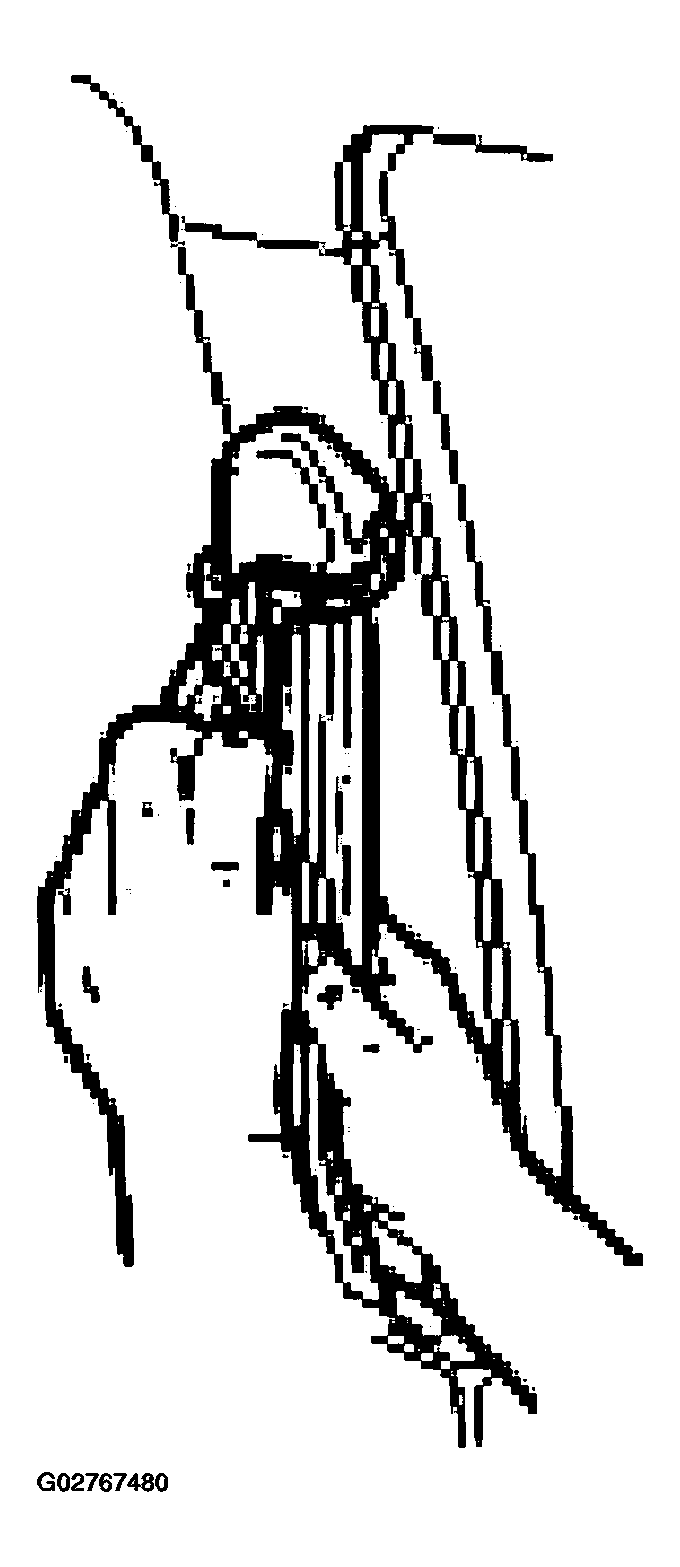

Fig 3: Identifying Safety Belt
Courtesy of FORD MOTOR CO.
