Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the A/C condenser air deflector (19E667).
1. Remove the pushpin retainers.
2. Remove the A/C condenser air deflector from the frame.

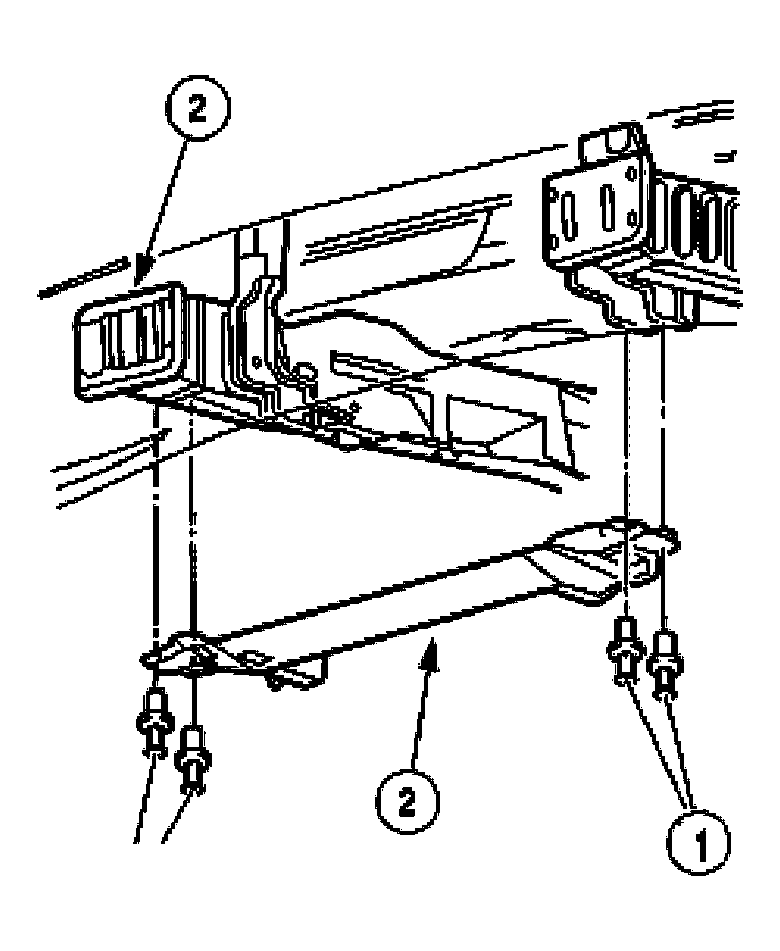

Fig 1: Removing A/C Condenser Air Deflector From Frame
Courtesy of FORD MOTOR CO.

NOTE: The aid of an assistant is required to remove the front bumper.

Fig 2: Removing Retaining Nuts And Front Bumper

Courtesy of FORD MOTOR CO.

Remove the retaining nuts and the front bumper (17757).
To install, reverse the removal procedure.
