Washer Pump and Reservoir: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood (16612).
  2. Remove the battery (10655).
  3. Remove the battery tray (10732).
    1. Remove the bolts.
    2. Remove the battery tray.

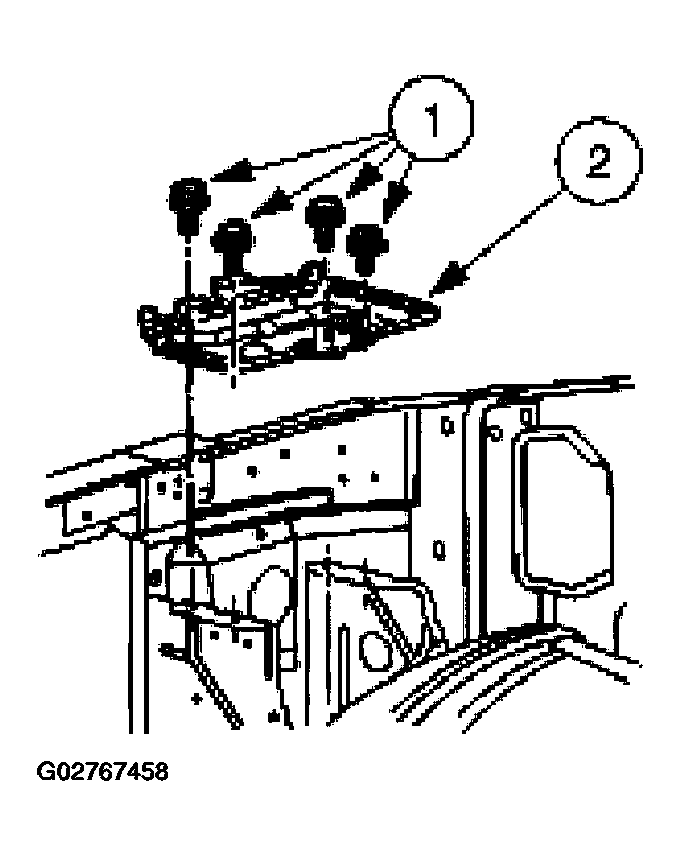

    Fig 1: Removing Battery Tray
    G02767458Courtesy of FORD MOTOR CO.
    4. NOTE: Windshield washer fluid must be collected in a container after the windshield washer hose is disconnected.

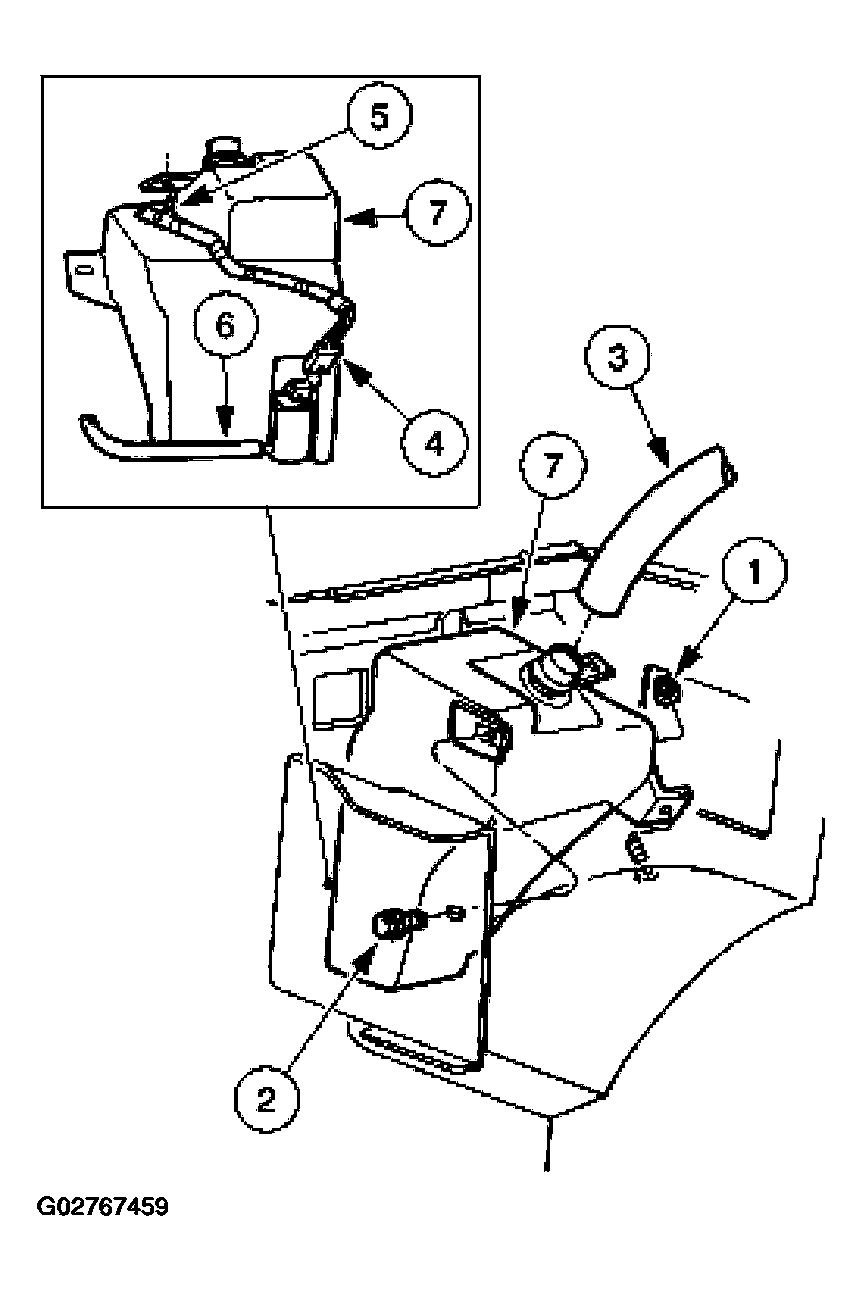

    Fig 2: Removing Washer Pump And Reservoir
    G02767459Courtesy of FORD MOTOR CO.
  4. Remove the washer pump and reservoir.
    1. Remove the nut.
    2. Remove the bolt.
    3. Disconnect the filler hose.
    4. Disconnect the electrical connector.
    5. Detach the wiring harness locator from the washer pump and reservoir.
    6. Disconnect the windshield washer hose.
    7. Remove the washer pump and reservoir.
  5. Remove the washer pump from the reservoir.

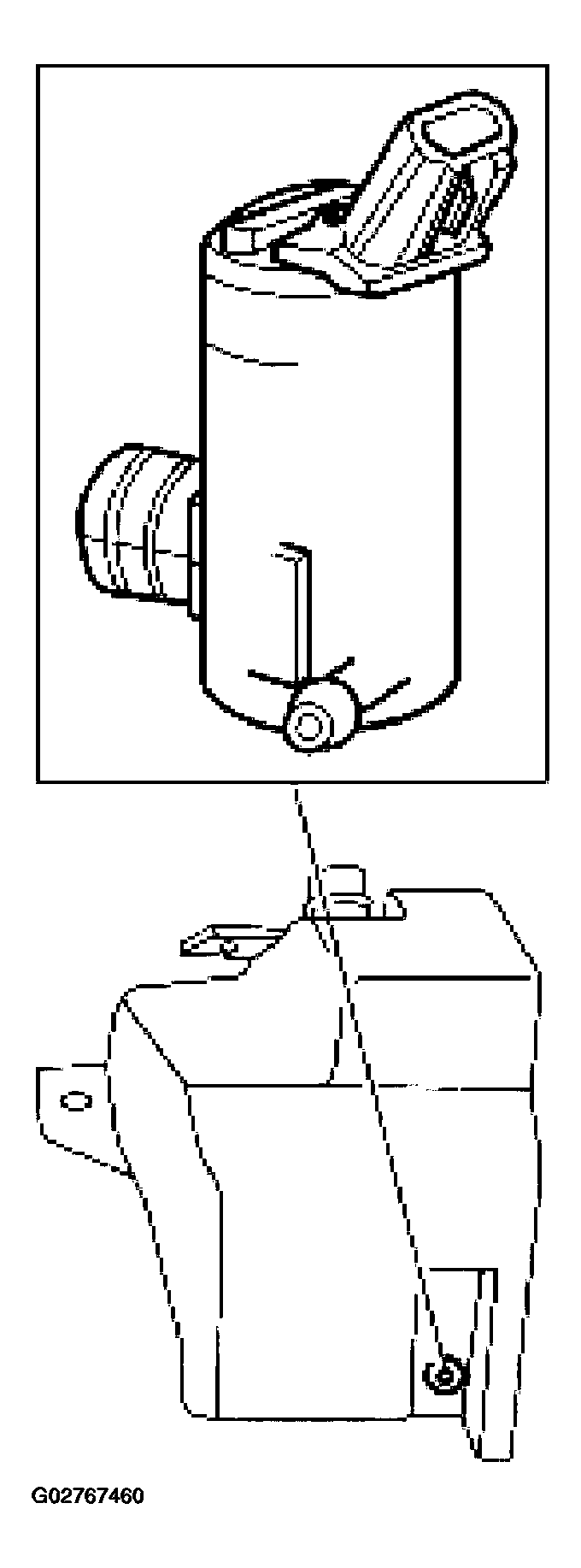

    Fig 3: Removing Washer Pump From Reservoir
    G02767460Courtesy of FORD MOTOR CO.
