Washer Pump and Reservoir: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
    NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

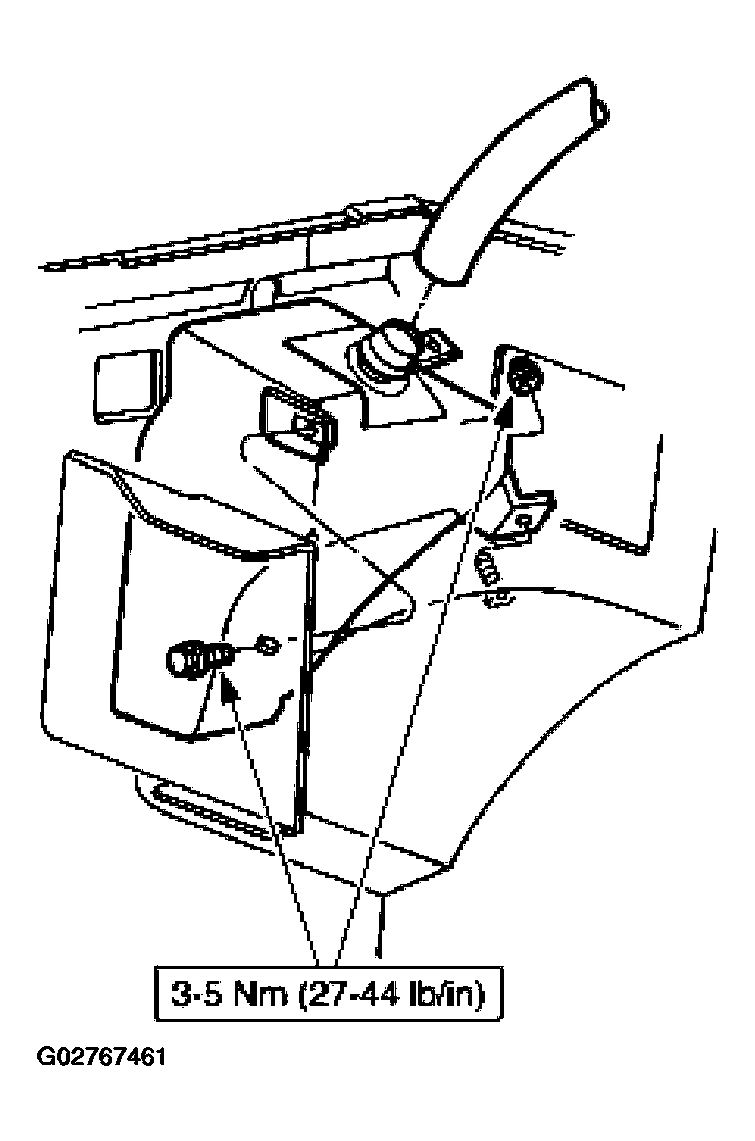

    Fig 1: Washer Reservoir Bolt Torque Specifications
    G02767461Courtesy of FORD MOTOR CO.

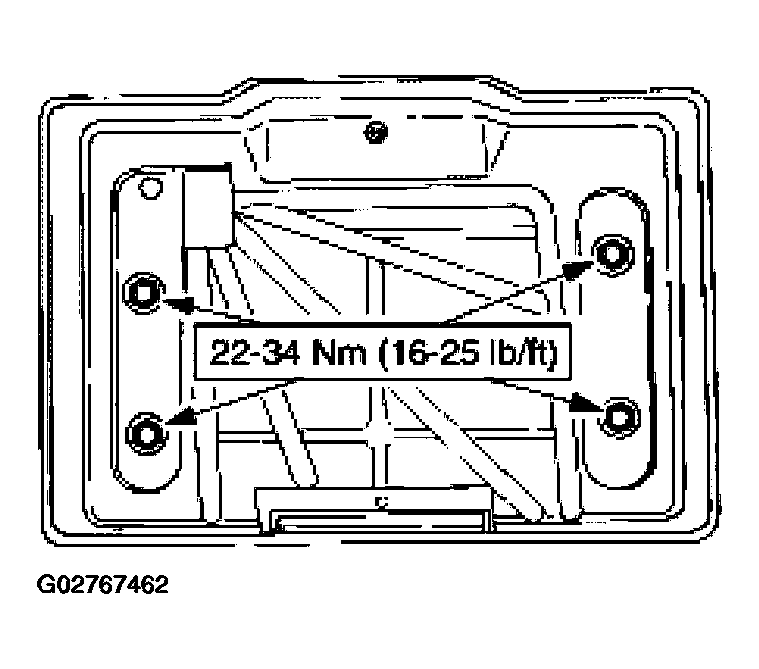

    Fig 2: Battery Tray Bolt Torque Specifications
    G02767462Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
    • Fill the windshield washer reservoir with windshield washer fluid.
