Motor - Windshield Wiper: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper pivot arms. For additional information, refer to PIVOT ARM .
  2. Raise and support the hood.
  3. Remove the cowl top vent panels.
  4. Disconnect the windshield wiper mounting arm and pivot shaft.
    1. Remove the access cover from the dash panel.
    2. Remove the retaining clip.
    3. Disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor.
    Fig 1: Disconnecting Windshield Wiper Mounting Arm
    G02767453Courtesy of FORD MOTOR CO.
  5. Remove the windshield wiper motor.
    1. Disconnect the electrical connector.
    2. Remove the bolts.
    3. Remove the windshield wiper motor.

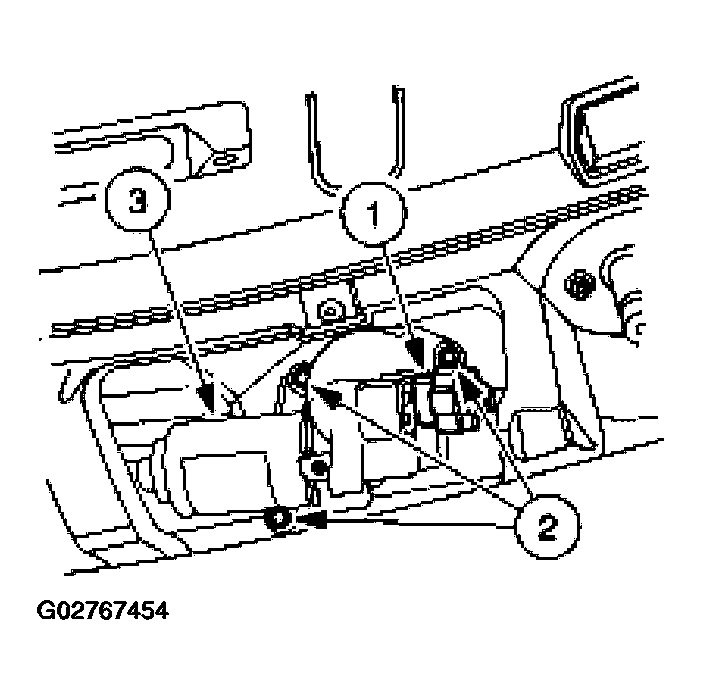

    Fig 2: Removing Windshield Wiper Motor
    G02767454Courtesy of FORD MOTOR CO.
