Motor - Windshield Wiper: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mounting arm and pivot shaft retaining clip on the windshield wiper mounting arm and pivot shaft.
    Fig 1: Installing Mounting Arm
    G02767455Courtesy of FORD MOTOR CO.
  2. Install the windshield wiper motor.
    1. Position the windshield wiper motor in the dash panel.
    2. Install the bolts.
    3. Connect the electrical connector.

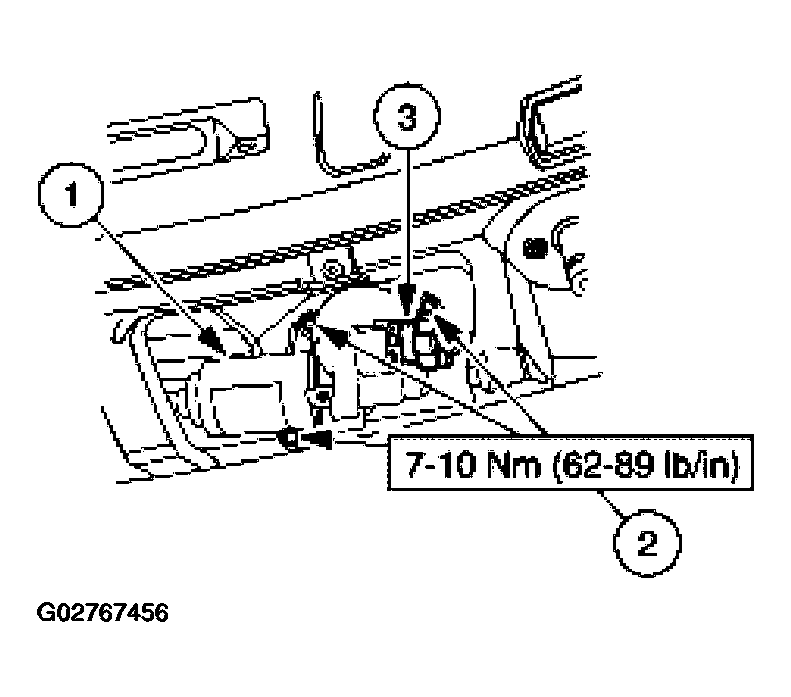

    Fig 2: Installing Windshield Wiper Motor
    G02767456Courtesy of FORD MOTOR CO.
  3. Connect the windshield wiper mounting arm and pivot shaft.
    1. Press upward on the windshield wiper mounting arm and pivot shaft after it is aligned with the windshield wiper motor.
    2. Install the access cover in the dash panel.

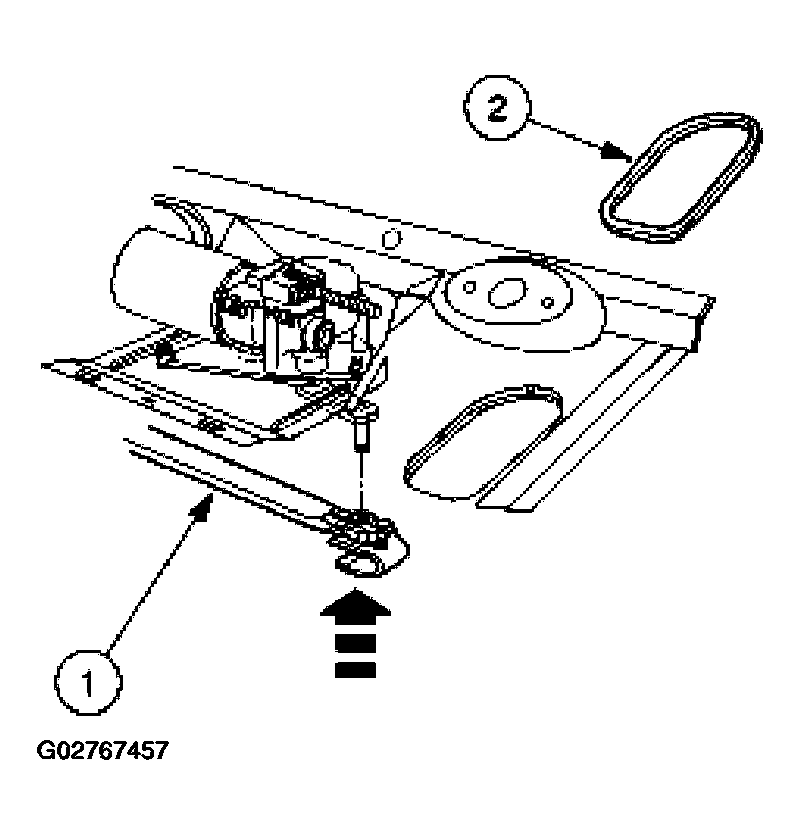

    Fig 3: Installing Access Cover In Dash Panel
    G02767457Courtesy of FORD MOTOR CO.
  4. Install the cowl top vent panels.
  5. Install the windshield wiper pivot arms. For additional information, refer to PIVOT ARM
