Pinpoint Test E: The Intermittent Wiper Speed Does Not Operate Properly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

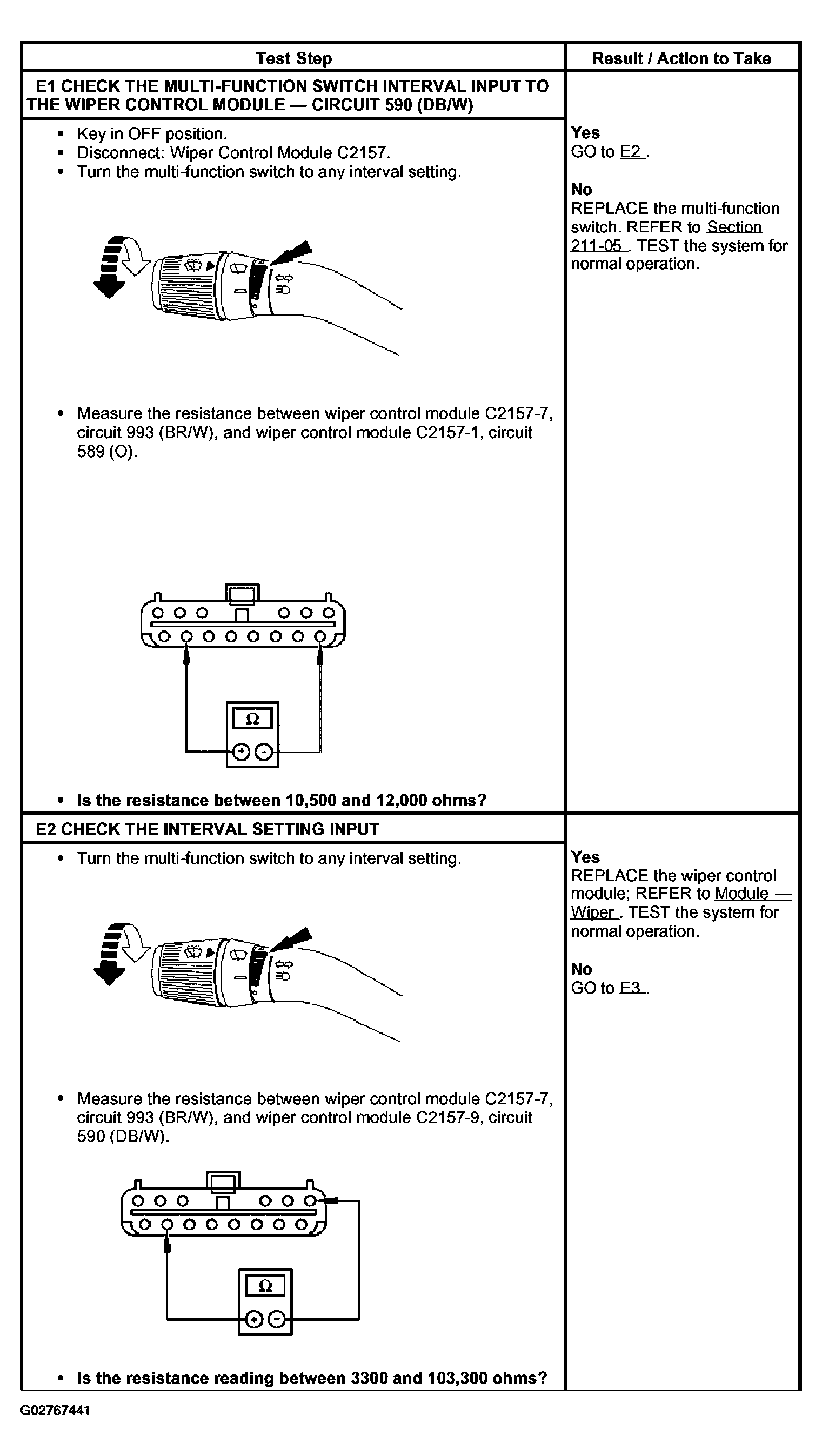

Fig 1: Pinpoint Test E: Intermittent Wiper Speed Does Not Operate Properly (Steps E1-E2)
G02767441Courtesy of FORD MOTOR CO.

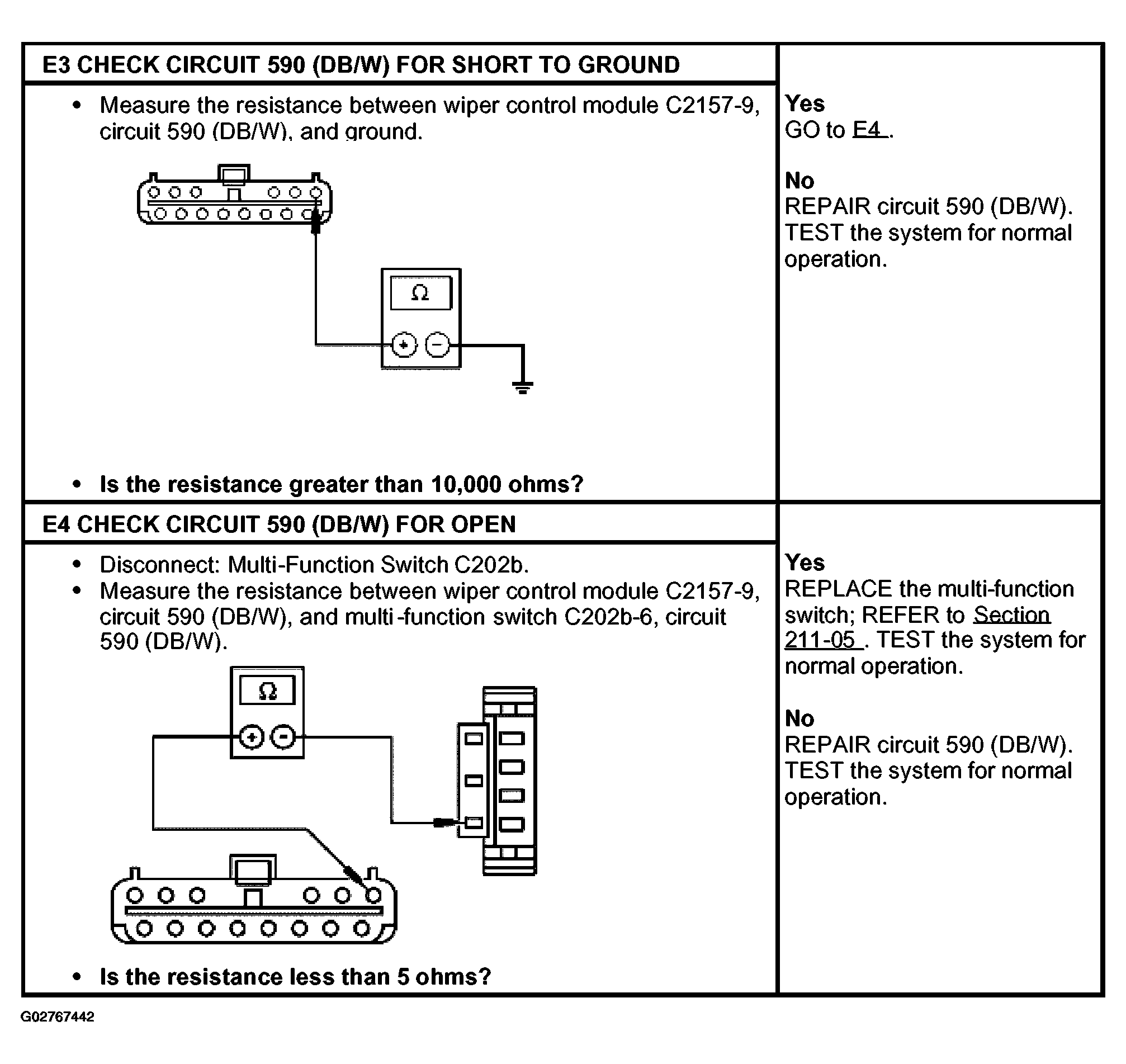

Fig 2: Pinpoint Test E: Intermittent Wiper Speed Does Not Operate Properly (Steps E3-E4)
G02767442Courtesy of FORD MOTOR CO.
