Pinpoint Test D: The High Speed Does Not Operate Properly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

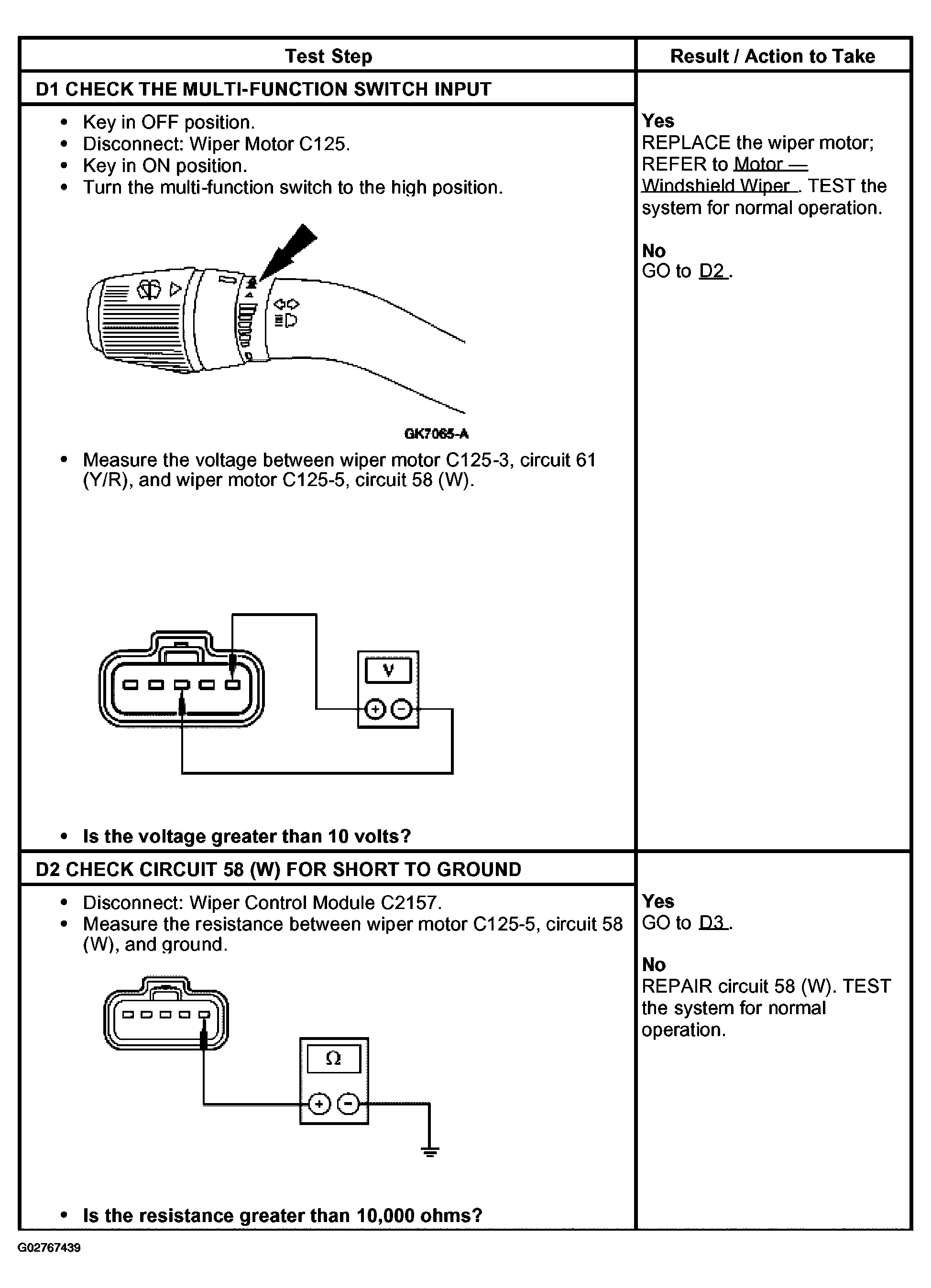

Fig 1: Pinpoint Test D: High Speed Does Not Operate Properly (Steps D1-D2)
G02767439Courtesy of FORD MOTOR CO.

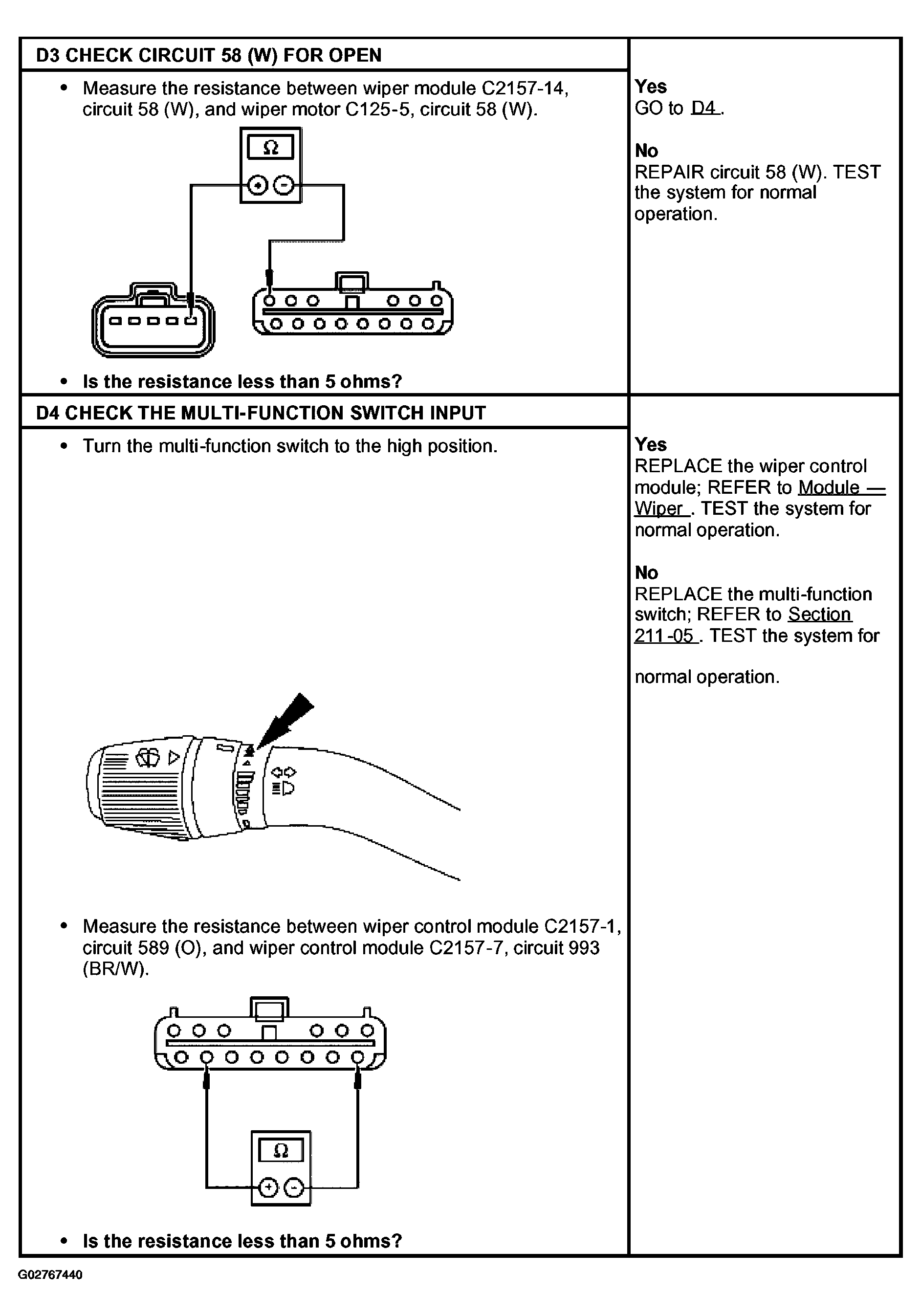

Fig 2: Pinpoint Test D: High Speed Does Not Operate Properly (Steps D3-D4)
G02767440Courtesy of FORD MOTOR CO.
