Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the windshield wiper and washer system to duplicate the condition.
  2. Visually inspect for the following obvious signs of mechanical or electrical damage.

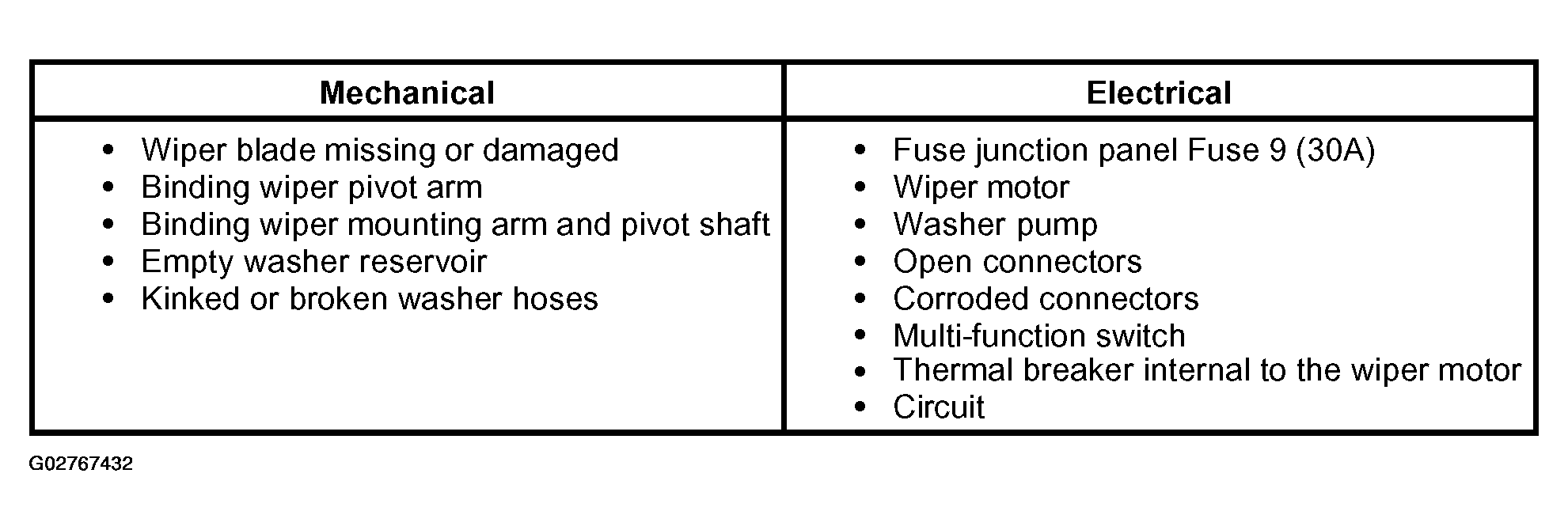

    VISUAL INSPECTION CHART

    Fig 1: Visual Inspection Chart
    G02767432Courtesy of FORD MOTOR CO.
  3. If the concern is not visually evident, determine the symptom and proceed to SYMPTOM CHART .
