Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch. For additional information, refer to HOOD LATCH .
  2. Disconnect the 2 hood latch release cable locators.
    Fig 1: Disconnecting Hood Latch Release Cable Locators
    G02767382Courtesy of FORD MOTOR CO.
  3. Remove the hood latch handle cover and the A-pillar lower trim panel.

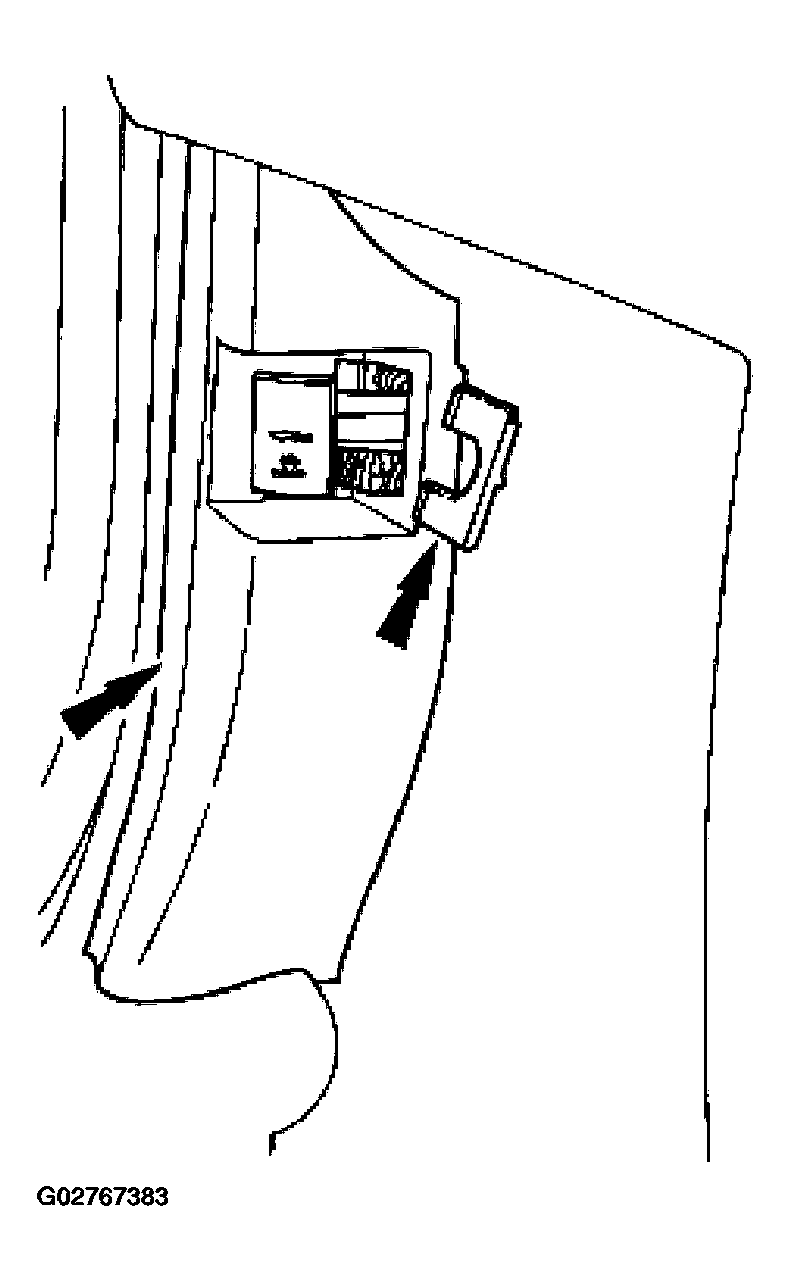

    Fig 2: Removing Hood Latch Handle Cover
    G02767383Courtesy of FORD MOTOR CO.
  4. Remove the screws, the hood latch control handle and cable assembly.

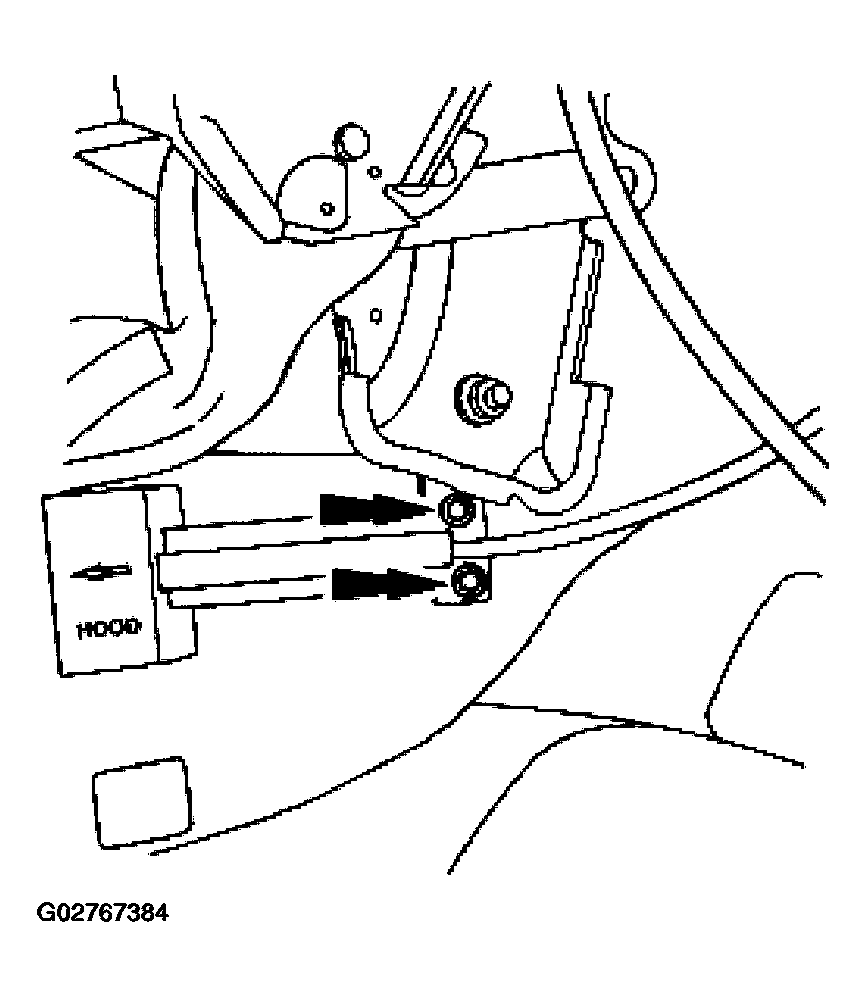

    Fig 3: Removing Screws, Hood Latch Control Handle And Cable Assembly
    G02767384Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
