Latch Cable Adjustment - Sliding Door

SPECIAL TOOL(S)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

NOTE: This adjustment is used to set up the inside and outside handle travel when opening the sliding door. This procedure must be carried out when a new latch remote control is installed or when the door cannot be opened due to insufficient handle travel.
1. Remove the sliding door trim panel and watershield. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
2. Loosen the sliding door rear latch cable adjusting bolt.

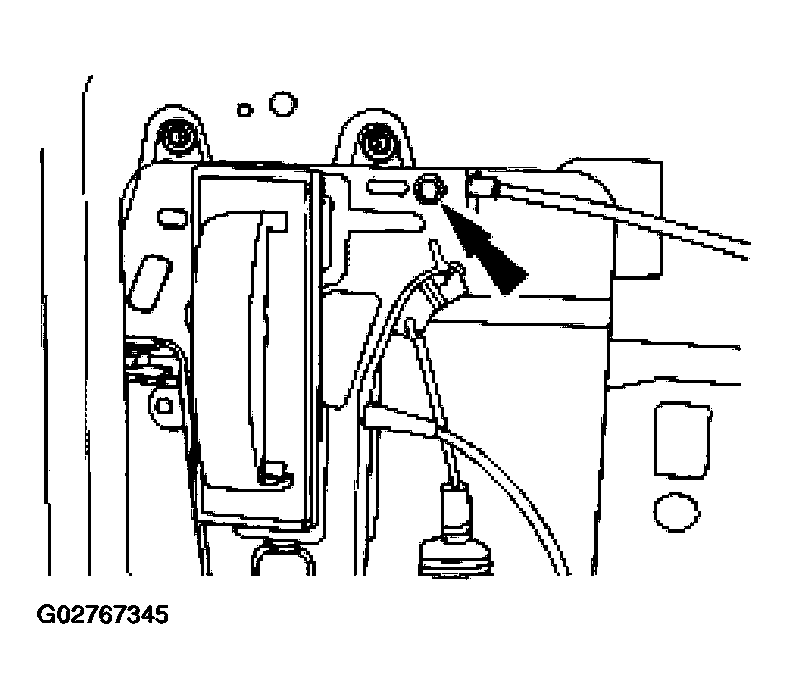

   Fig 2: Loosening Sliding Door Rear Latch Cable Adjusting Bolt

   Courtesy of FORD MOTOR CO.
WARNING: A spacer block is required for correct adjustment of the latch lever to its correct position. Any adjustment without the use of this spacer block is not recommended. The rear latch lever could be incorrectly positioned, which could cause a hazard during normal operation of the vehicle. Failure to follow these instructions may result in personal injury.

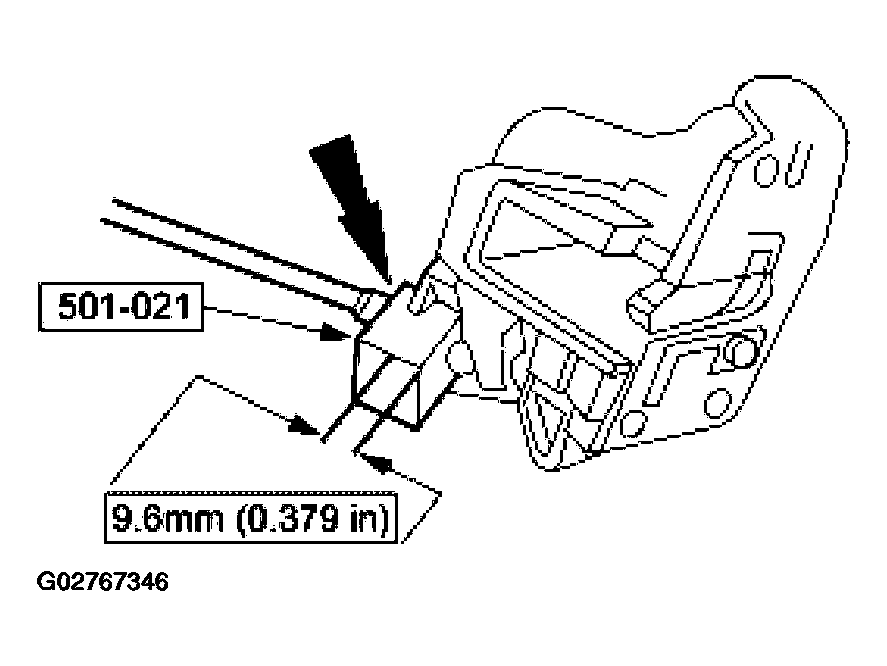

Fig 3: Inserting Special Tool Between Cable Ferrule And Latch
Courtesy of FORD MOTOR CO.
3. With the sliding door rear latch installed in the door, insert the special tool between the cable ferrule and the latch.
4. With the rear door latch closed to its primary latched position, lightly pull the cable and adjustment bracket toward the rear of the vehicle until snug.
   Fig 4: Adjusting Bracket Toward Rear Of Vehicle

   Courtesy of FORD MOTOR CO.
NOTE: Check for correct latch operation by opening and closing the door with the interior and exterior door handles. Make sure the door can be unlatched with 12.5-17.8 mm (1/2-11/16 inch) of exterior door handle travel.

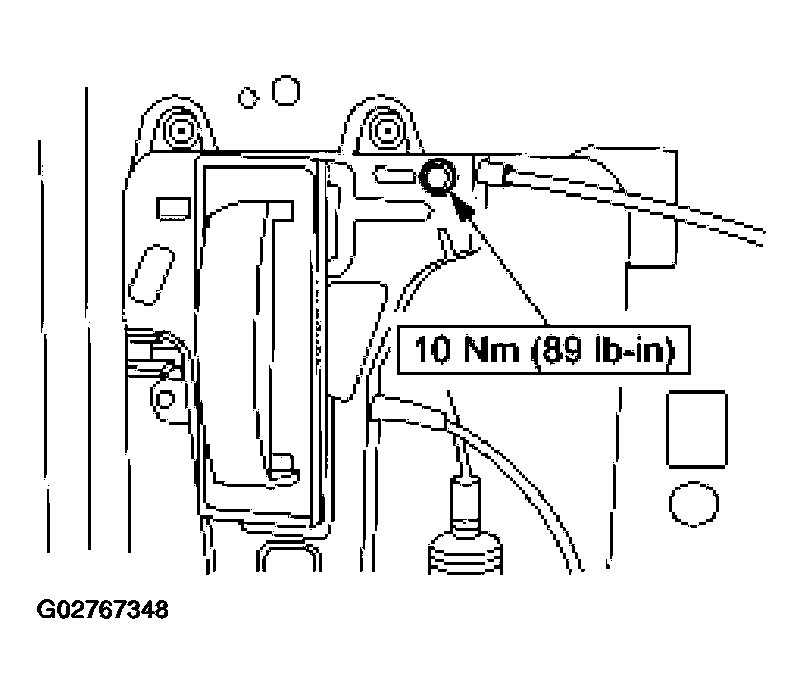

Fig 5: Tightening Sliding Door Rear Latch Cable Adjusting Bolt
Courtesy of FORD MOTOR CO.
5. Tighten the sliding door rear latch cable adjusting bolt.
