Pinpoint Test C: The Door Locks Are Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

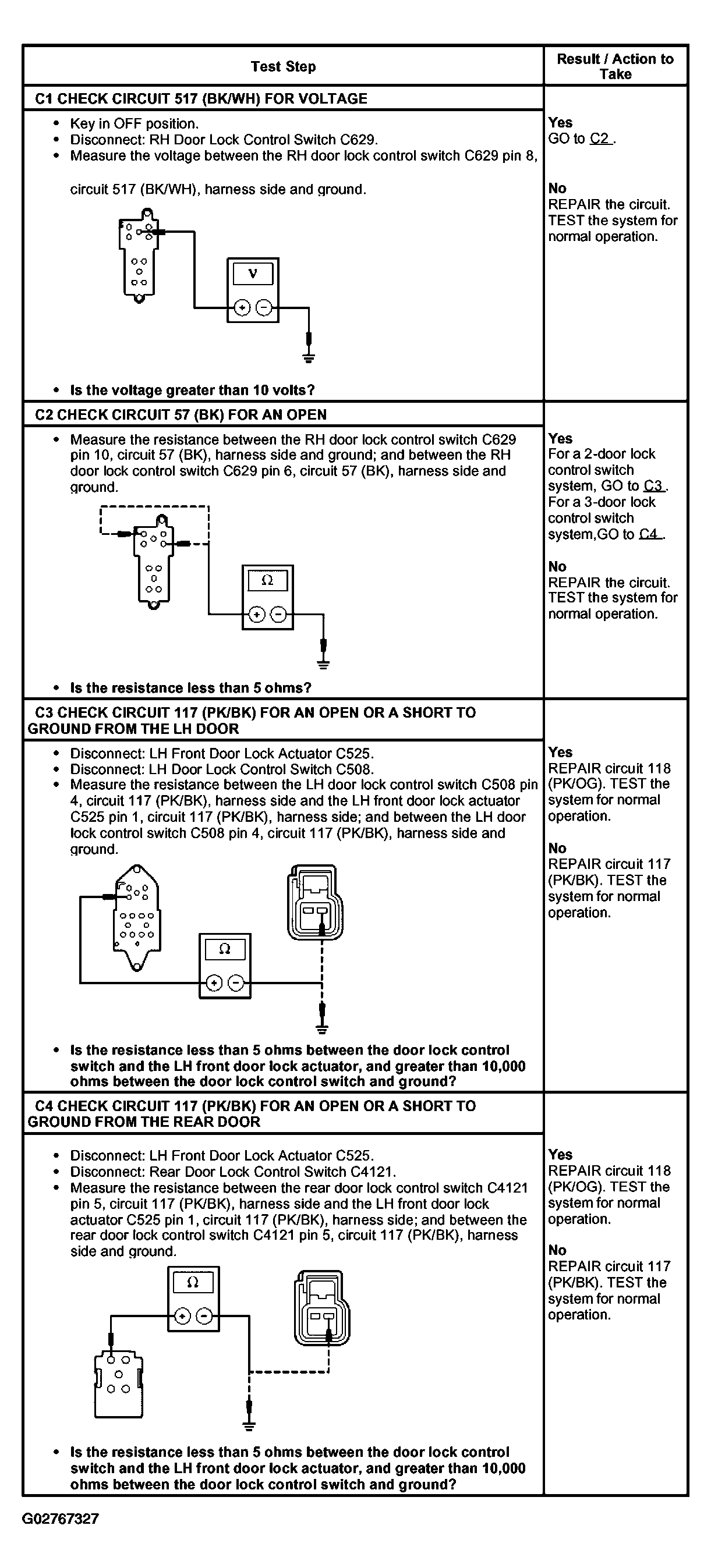

Fig 1: Pinpoint Test C: Door Locks Are Inoperative (Steps C1-C4)
G02767327Courtesy of FORD MOTOR CO.
