Pinpoint Test H: A Single Door Lock Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

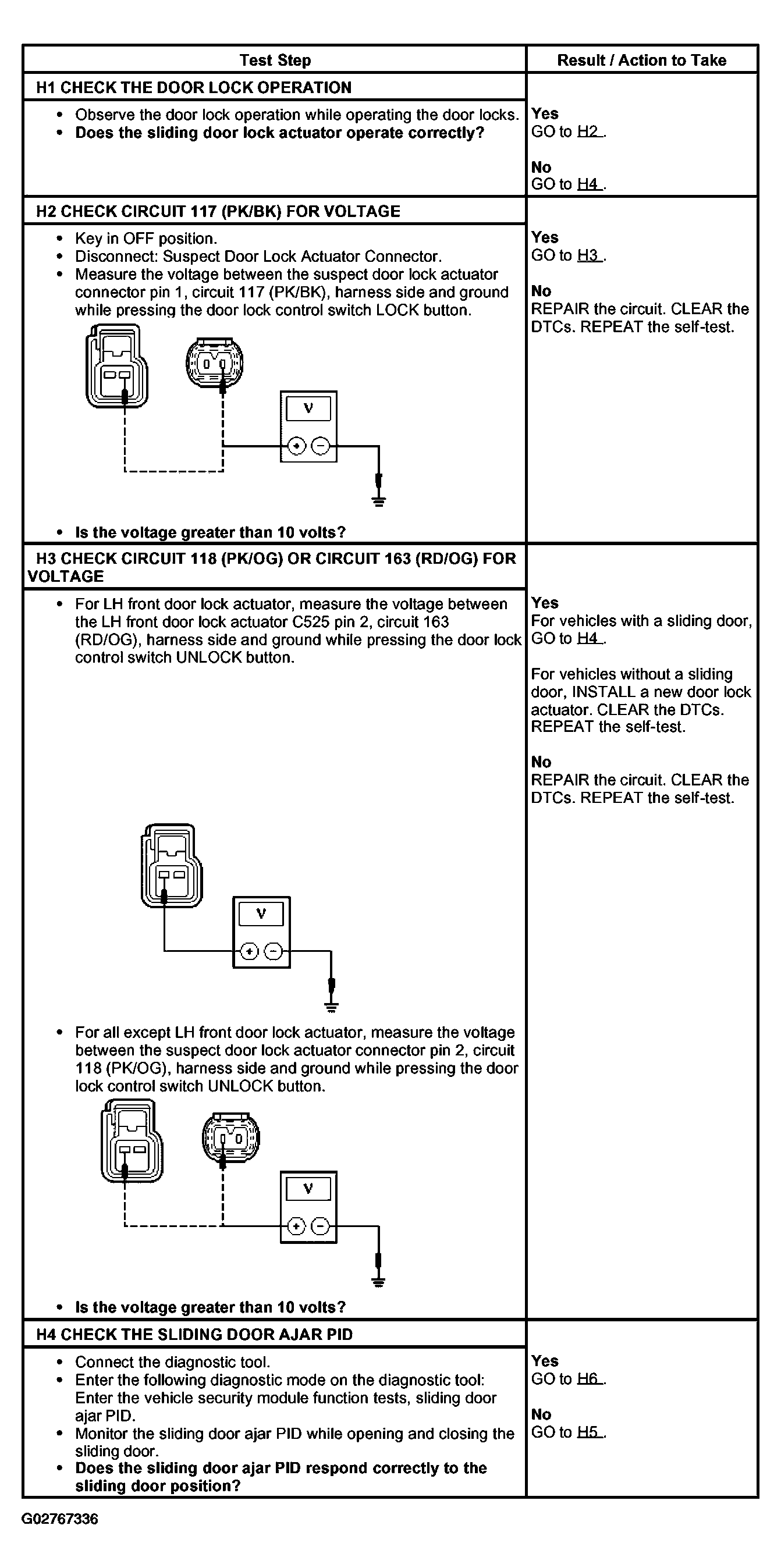

Fig 1: Pinpoint Test H: Single Door Lock Is Inoperative (Steps H1-H4)
G02767336Courtesy of FORD MOTOR CO.

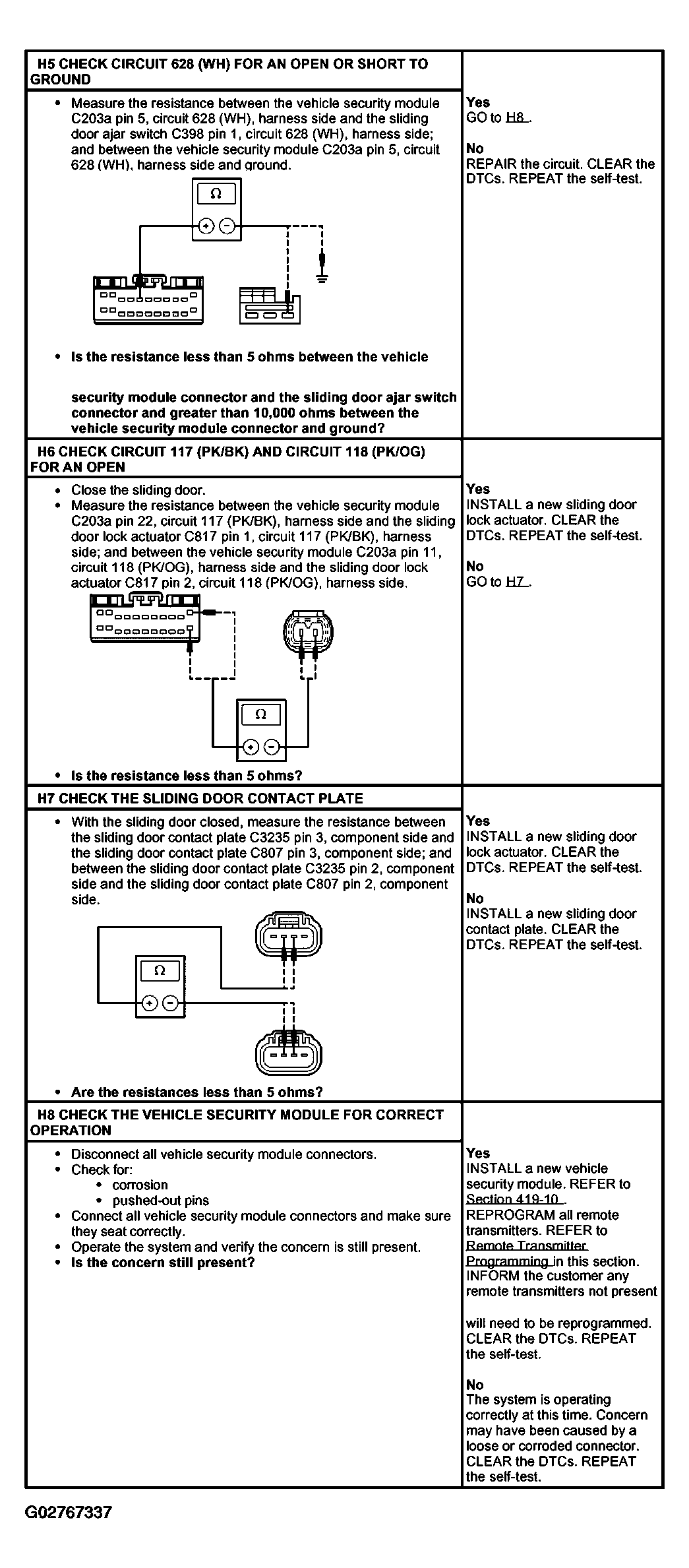

Fig 2: Pinpoint Test H: Single Door Lock Is Inoperative (Steps H5-H8)
G02767337Courtesy of FORD MOTOR CO.
