Windshield Glass: Removal
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the windshield wiper pivot arms (17526); for additional information, refer to WIPERS AND WASHERS .
- Remove the cowl top vent panel (022A68); for additional information, refer to FRONT END BODY PANELS .
- Drill out the rivets, and remove the windshield glass stops (03296).
- Remove the inside rear view mirror (17700); for additional information, refer to REAR VIEW MIRRORS .
- Remove (pull off) the RH and LH A-pillar mouldings.
- Lower the front portion of the roof trim panel; for additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Lubricate the urethane sealant with ECL-784 lubricant (10:1 ratio of water to soap), to aid the Interior Glass Cut-Out Knife Kit when cutting the urethane sealant.

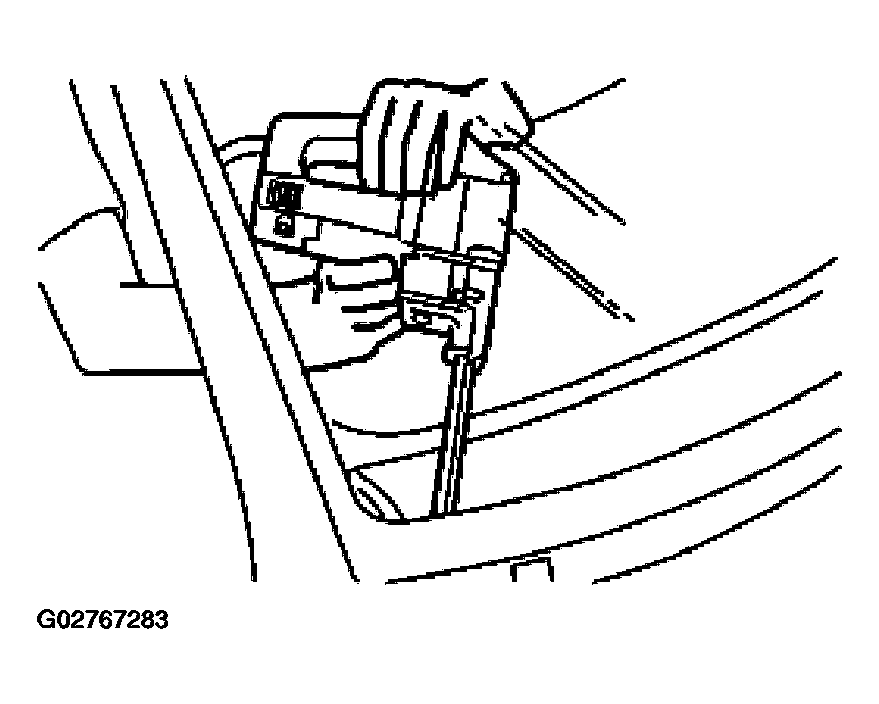

- Insert the Interior Glass Cut-Out Knife into the urethane sealant at the upper center of the vehicle interior, and work toward the bottom corners.
- Insert the Interior Glass Cut-Out Knife into the bottom center of the urethane sealant on the vehicle exterior, and work toward the corners.
- Carefully remove the windshield glass from the vehicle.
- Remove the windshield header seal.
- Trim the remaining urethane on the pinch weld to within the specification.
- The old urethane must be smooth and free of cuts and contamination.
WARNING:
To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle.
CAUTION:
To prevent damage to the windshield header seal (03045), turn the blade so that the flat side is against the pinch weld.
NOTE:
Support the windshield glass (03100), to prevent the glass from dropping, before cutting the bottom edge of the urethane sealant.
CAUTION:
Removing the glass requires more than one technician.
