Switch - Window Regulator Control: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable; for additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Carefully pry the window regulator switch plate up.
    Fig 1: Removing Regulator Switch Plate
    G02767264Courtesy of FORD MOTOR CO.
  3. Remove the two screws.

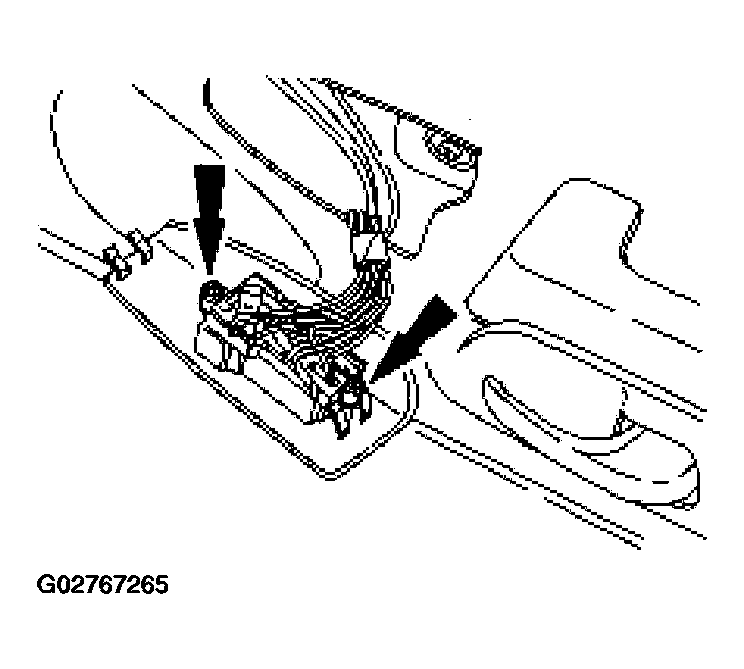

    Fig 2: Removing Screws
    G02767265Courtesy of FORD MOTOR CO.
  4. Carefully pry up and remove the window regulator control switch (14529).

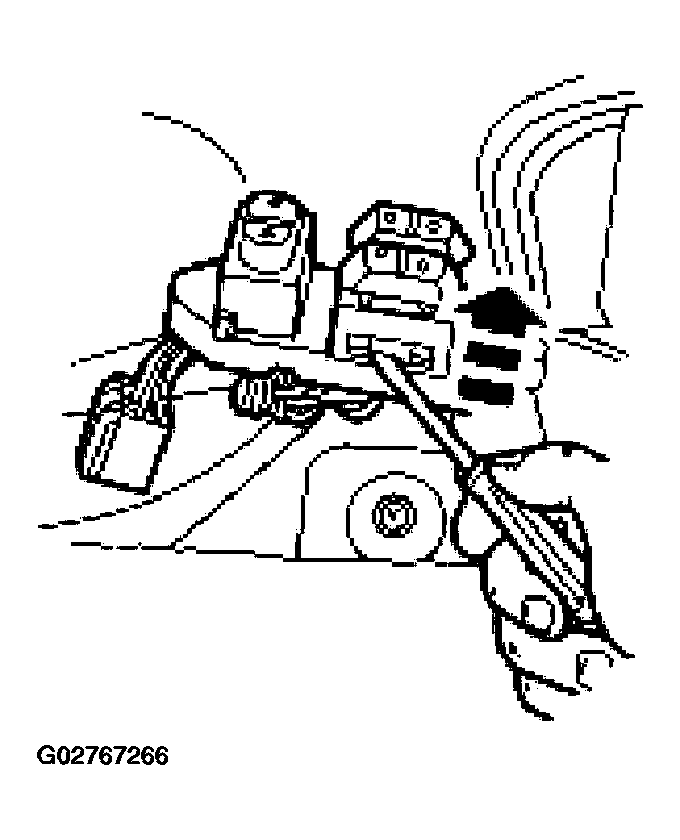

    Fig 3: Removing Window Regulator Control Switch
    G02767266Courtesy of FORD MOTOR CO.
