Door Window Glass Adjustment

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel (23942); for additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Loosen, but do not remove, the window regulator bracket upper nuts.
    Fig 1: Identifying Window Regulator Bracket Upper Nuts
    G02767260Courtesy of FORD MOTOR CO.
  3. Raise the front door window glass to the full up position, and tighten the nuts.
    Fig 2: Tightening Window Regulator Bracket Upper Nuts
    G02767261Courtesy of FORD MOTOR CO.
  4. Loosen, but do not remove, the rear glass channel bolt.

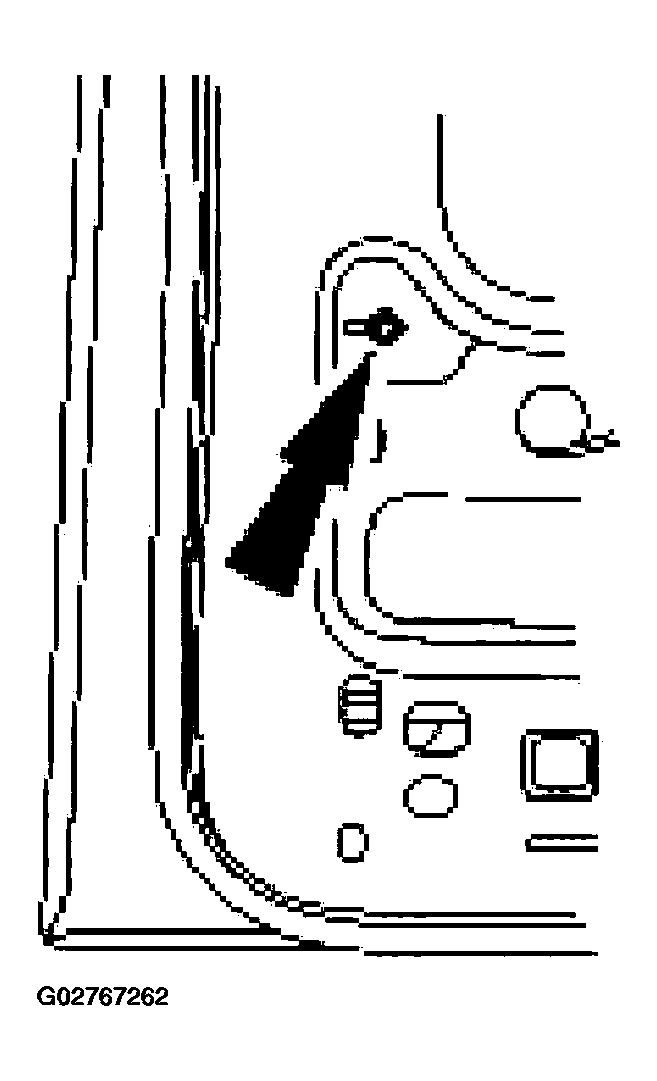

    Fig 3: Locating Rear Glass Channel Bolt
    G02767262Courtesy of FORD MOTOR CO.
  5. Lower the front door window glass partway, to allow adjustment.
  6. Move the front door window glass to the rearward position, and tighten the bolt.
    Fig 4: Tightening Rear Glass Channel Bolt
    G02767263Courtesy of FORD MOTOR CO.
