Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually inspect the components of the power window system to determine if any of the following electrical or mechanical concerns apply.

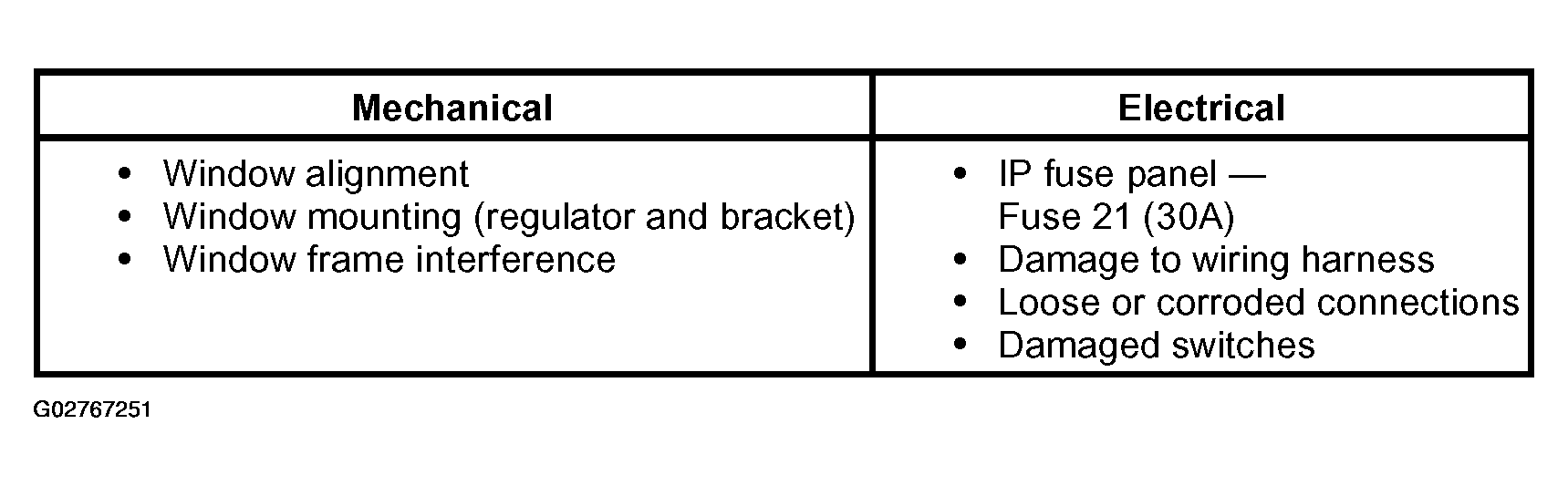

    Fig 1: Visual Inspection Chart
    G02767251Courtesy of FORD MOTOR CO.
  2. Check the wiring harness for obvious signs of shorts, opens, bad connections or damage.
  3. If the fault is not visually evident, determine the symptom. GO to SYMPTOM CHART .
