Front Seat: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. Install the front seat and retainers.
    Fig 1: Installing Front Seat And Retainers
    G02767089Courtesy of FORD MOTOR CO.

    VEHICLES EQUIPPED WITH POWER SEAT

  2. Connect the electrical feed electrical connector underneath the seat.
    Fig 2: Connecting Electrical Feed Electrical Connector Underneath Seat
    G02767090Courtesy of FORD MOTOR CO.

    3. ALL VEHICLES

  3. Connect the safety belt buckle pretensioner electrical connector.

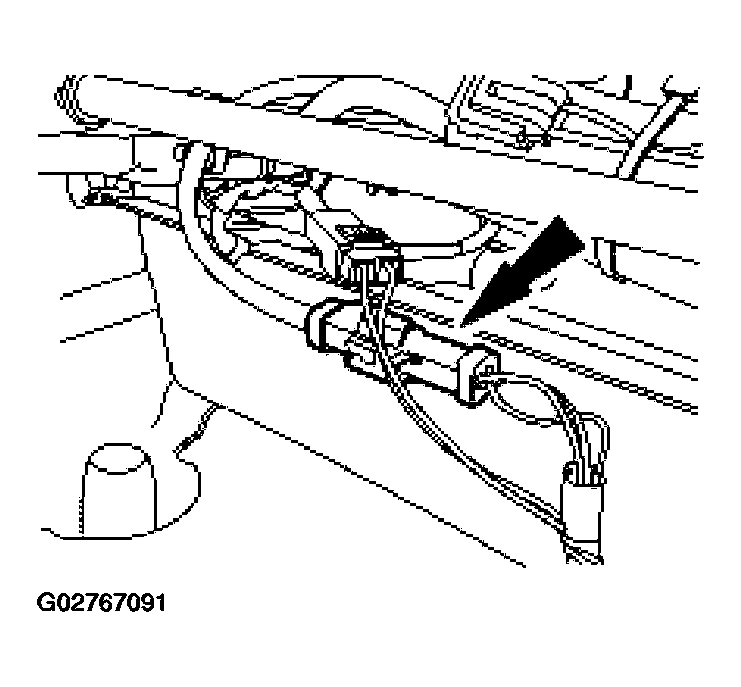

    Fig 3: Connecting Safety Belt Buckle Pretensioner Electrical Connector
    G02767091Courtesy of FORD MOTOR CO.
  4. Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of AIR BAG RESTRAINT SYSTEMS .
  5. Check the restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
