Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    ALL SEATS

  1. Remove the rear quad bucket seat from the vehicle.
  2. Remove the lower anchors and tethers for children (LATCH).
    1. Unlatch the J-clips on the LATCH cover.
    2. Remove the LATCH bolts.
    3. Remove the LATCH.

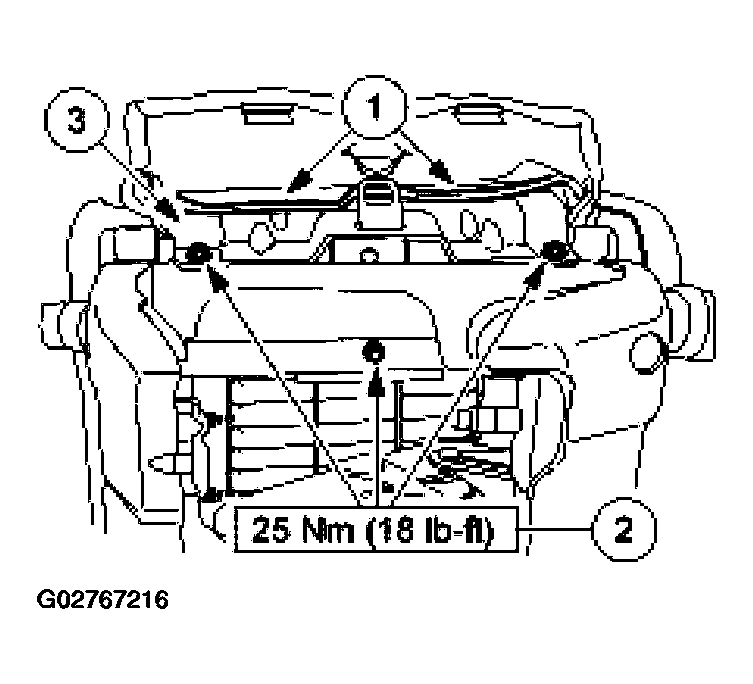

    Fig 1: Removing Latch
    G02767216Courtesy of FORD MOTOR CO.
    3. NOTE: If the same armrest is being installed, the armrest plate and bolt can be reused, but install a new crown washer when installing the armrest.
    Fig 2: Removing Bolt
    G02767217Courtesy of FORD MOTOR CO.
  3. Remove the armrest.
    1. Pull back the Velcro® fastened armrest cover to expose the armrest bolt.
    2. Remove the bolt and the crown washer.
    3. Remove the armrest.
  4. Remove the safety belt buckle end assembly.
    1. Use the Safety Belt Bolt Torx Bit to remove the buckle end bolt.
    2. Remove the safety belt buckle end.
    Fig 3: Removing Safety Belt Buckle
    G02767218Courtesy of FORD MOTOR CO.
  5. Remove the detachable safety belt anchor buckle end.
    1. Use the Safety Belt Bolt Torx Bit to remove the detachable safety belt anchor buckle end bolt.
    2. Remove the detachable safety belt anchor buckle end.
    Fig 4: Removing Safety Belt
    G02767219Courtesy of FORD MOTOR CO.
  6. Remove the right-hand seat side trim.
    1. Remove the screws (one located behind the seat back latch).
    2. Remove the right-hand seat side trim.
    Fig 5: Removing Right-Hand Seat Side Trim
    G02767220Courtesy of FORD MOTOR CO.
  7. Remove the left-hand seat side trim.
    1. Remove the screws.
    2. Remove the left-hand seat side trim.
    Fig 6: Removing Left-Hand Seat Side Trim
    G02767221Courtesy of FORD MOTOR CO.
  8. Remove the bolts.

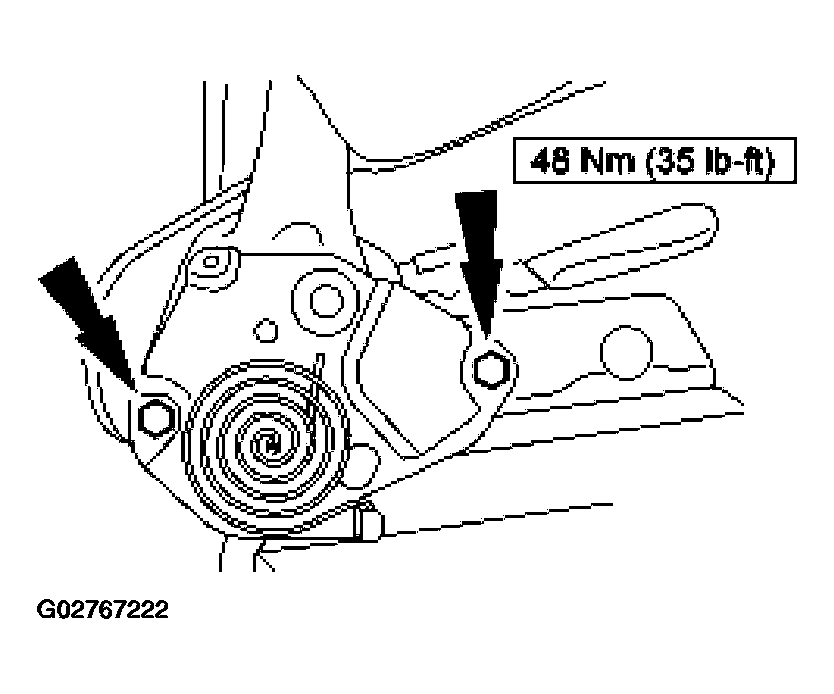

    Fig 7: Removing Bolts
    G02767222Courtesy of FORD MOTOR CO.
  9. Remove the bolt.
    Fig 8: Removing Bolt
    G02767223Courtesy of FORD MOTOR CO.
  10. Remove the seat back.
    Fig 9: Removing Seat Back
    G02767224Courtesy of FORD MOTOR CO.
  11. Remove the seat back cover.
    1. Unlatch the C-clip at the bottom of the seat back.
    2. Slide the cover upward over the seat back, disengaging the Velcro® fasteners (not shown), and remove the seat back cover.
    Fig 10: Removing Seat Back Cover
    G02767225Courtesy of FORD MOTOR CO.

    12. LH SEATS

  12. Access and detach the J-clips from the seat backrest frame from beneath the seat backrest cover.
    Fig 11: Detaching J-Clips Seat Backrest Cover (LH SEATS)
    G02767226Courtesy of FORD MOTOR CO.

    13. ALL SEATS

  13. Remove the seat back cushion.
  14. Remove the bolt and the seat back latch.
    Fig 12: Identifying Bolt
    G02767227Courtesy of FORD MOTOR CO.
  15. Remove the four nuts (two shown) and the seat support.
    Fig 13: Removing Nuts
    G02767228Courtesy of FORD MOTOR CO.
    16. NOTE: On the RH side seat only, make sure the seat track is in the full rearward position to access the front seat track bolts.

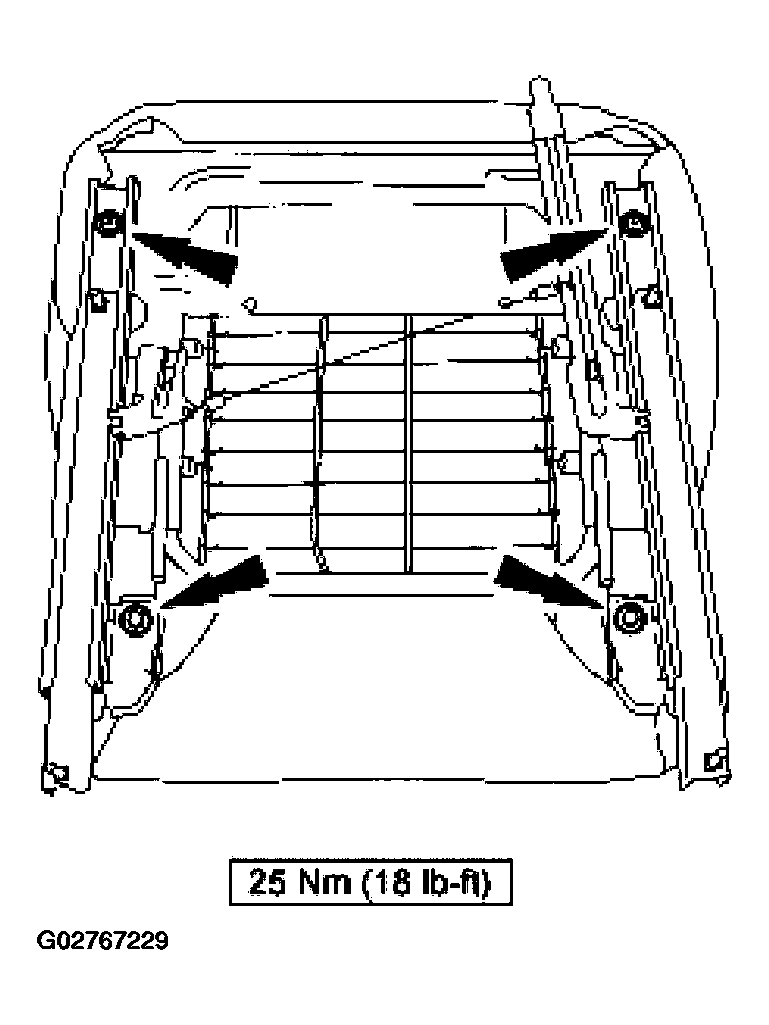

    Fig 14: Removing Seat Track Bolts
    G02767229Courtesy of FORD MOTOR CO.
  16. Remove the seat track bolts and remove the seat track assembly.
  17. On the LH side seat only, remove the two bolts from both spacer brackets and remove both spacer bracket assemblies.
  18. Remove the seat cushion cover.
    1. Unlatch the J-clips on all four sides of the seat cushion cover.
    2. Remove the seat cushion frame from the seat cushion.
    3. Remove the seat cushion cover from the seat cushion, disengaging the Velcro® fasteners (not shown).

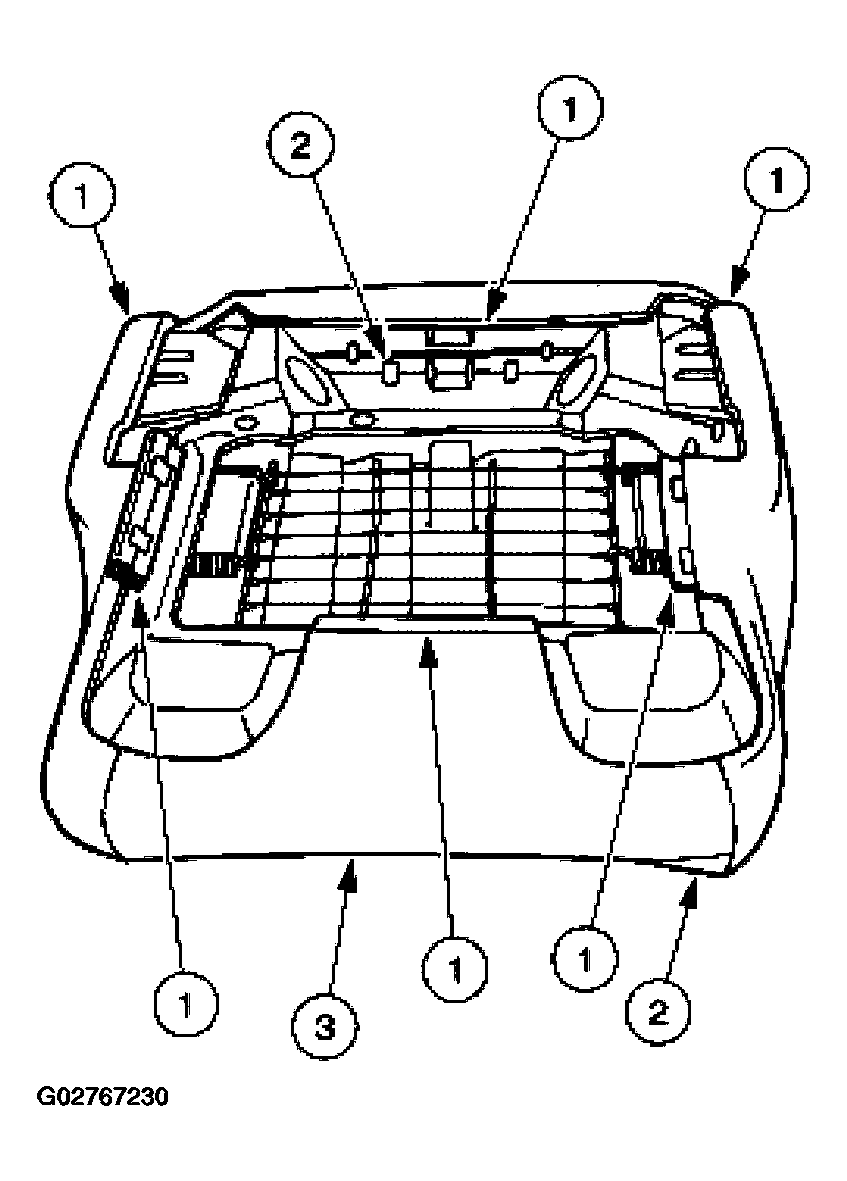

    Fig 15: Removing Seat Cushion Cover
    G02767230Courtesy of FORD MOTOR CO.
  19. Remove the seat cushion from the seat frame.

    20. LH SEATS

  20. Remove the bolts and the cushion support from the seat cushion frame.
    Fig 16: Removing Seat Cushion From Seat Frame
    G02767231Courtesy of FORD MOTOR CO.

    21. ALL SEATS

  21. To assemble, reverse the disassembly procedure.
